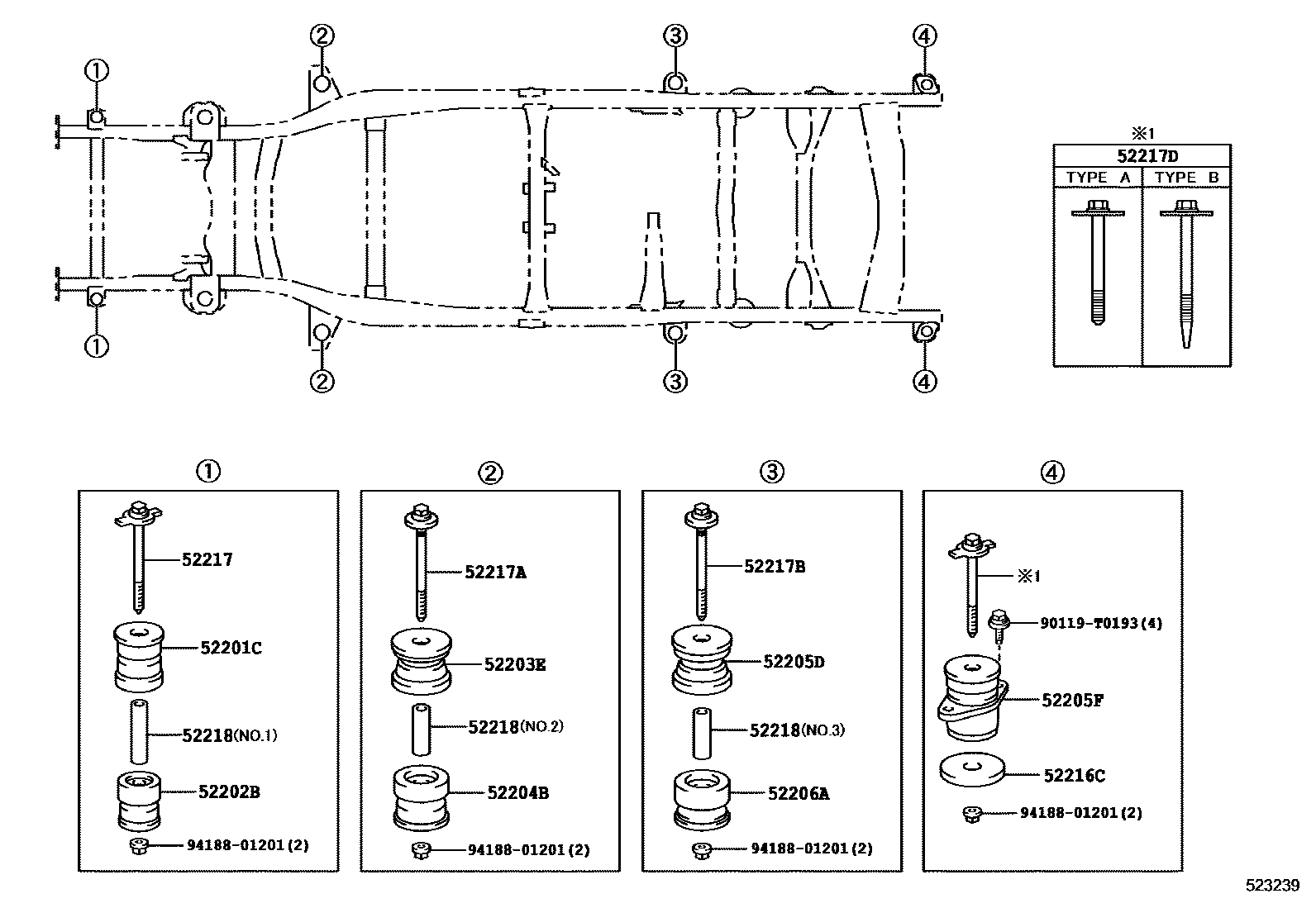

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K060×2iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main52201-0K070×2iGUN142..5F..IND202011

main52201-0K100×2iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201604

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K060×2iGUN142..TH201511-201707

main52202-0K070×2iGUN142..5F..IND202011

main52202-0K100×2iTGN140..VN201604-202009

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K080×2iGUN142..TH201511-201707

main52203-0K090×2iGUN142..5F..IND202011

main52203-0K130×2iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201604

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K080×2iGUN142..TH201511-201707

main52204-0K090×2iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main52204-0K130×2iTGN140..6FC..MA201604-202012

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K090×2iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

main52205-0K100×2iGUN142..5F..IND202011

main52205-0K180×2iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201604

52205FCUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-0K070×2iGUN142..TH201511-201707

main52207-0K080×2iGUN142..5F..IND202011

main52207-0K090×2iTGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN14#..(MAP,PHLP,VNP)..(20,24G,27V,28,28E,28V,N)202010

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K040×2iGUN142..IDN,TH;GUN143,TGN140..IDNP..(IDN,PHL)202009

main52206-0K050×2iGUN142..5F..IND202011

main52206-0K140×2iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201604

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-KK010×2iGUN142..TH201511-201707

52217BOLT, BODY MOUNTING

main52217-0K010×2iTGN140..6FC..MA201511-202012

52217ABOLT, BODY MOUNTING

main52217-0K020×2iGUN142..TH201511-201707

52217BBOLT, BODY MOUNTING

main52217-0K020×2iGUN142..5F..24V..IDN;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN142..5F..(24G,24Z,G);TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN143..(28,28E,28V,N)..202009

52217DBOLT, BODY MOUNTING

main52217-0K050iGUN142..TH201511-201707

TYPE A:REFER ILLUST.

main52217-0K060iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201511-202102

TYPE B:REFER ILLUST.

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010×2iGUN142..TH201511-201707

NO.1

main52219-0K010×2iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

NO.3,NO.2

90119T0193

main90119-T0193

9418801201

main94188-01201

15 parts on this diagram · 1 diagram in section
