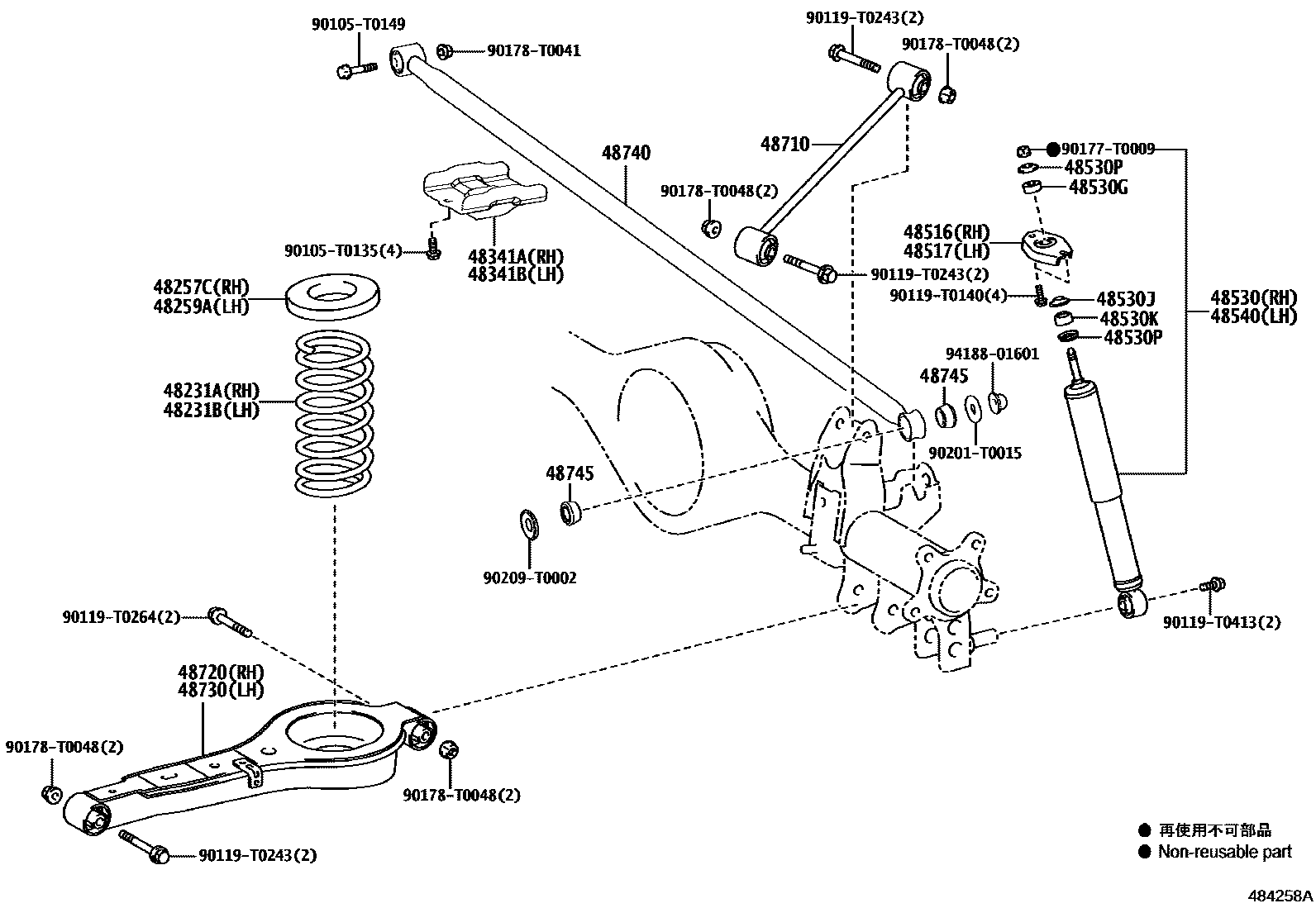

REAR SPRING & SHOCK ABSORBER

48231ASPRING, COIL, REAR RH

main48231-0K320iTGN140..20E..VN;TGN140..IDNP..(IDN,PHL);GUN142,TGN141..IDN,TH,VN;TGN140..(PHLP,VNP)..(20V,N);GUN143..(28,28E,28V,N)..PHL;TGN140..PHLP..6FC..(20,20E)202009

main48231-0K330iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main48231-0K490iGUN142,TGN140..MA202101

48231BSPRING, COIL, REAR LH

main48231-0K320iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main48231-0K330iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

main48231-0K490iGUN142,TGN140..MA202101

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0K010iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0K010iTGN140..VN201511-202009

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-0K150iTGN140..5F..MA201511-201905

main48341-0K160iGUN142..5F..IND202011

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-0K150iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main48341-0K160iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48516-0K030iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48517-0K020iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-8Z036iGUN142..TH201511-201707

MARK 48530-0K010

sub48530-0K010

sub90177-T0009

main48530-8Z037iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

MARK 48530-0K020

main48530-8Z038iTGN140..6FC..MA201611-202012

MARK 48530-0K110

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-T1007×2iGUN142,TGN140..MA202101

main90948-T1008×2iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main90948-T1009×2iGUN14#..IND201604-202001

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90948-T2005×2iTGN140..5F..MA201511-201905

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main90948-T1010×2iGUN142,TGN140..MA202101

main90948-T1011×2iGUN142..TH201511-201707

main90948-T1012×2iGUN142..5F..IND202011

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-T2008×4iTGN140..5F..MA201511-201905

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-8Z036iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

MARK 48530-0K010

sub48530-0K010

sub90177-T0009

main48530-8Z037iGUN14#..IND201604-202001

MARK 48530-0K020

main48530-8Z038iGUN142,TGN140..MA202101

MARK 48530-0K110

48710ARM ASSY, UPPER CONTROL

main48710-0K070iGUN142..24V..TH201511-201707

RH

main48710-0K080supersedes 48710-0K070iGUN142..MA,TH;GUN14#,TGN14#..(20Q,20V,24V,27V,28V)..(IDN,MA,PHL,VN)202009

LH

main48710-0K090×2iGUN14#..(24G,28G,G,N)..IND201604-202001

RH

main48710-0K100iGUN142..5F..24Z202011

LH

48720ARM ASSY, LOWER CONTROL, RH

main48720-0K010iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

main48720-0K020iGUN142..5F..IND202011

main48720-0K050iTGN140..VN201604-202009

48730ARM ASSY, LOWER CONTROL, LH

main48720-0K010iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main48720-0K020iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main48720-0K050iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201604-202102

48740ROD ASSY, REAR LATERAL CONTROL

main48740-0K050iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

main48740-0K060iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

48745BUSH, LATERAL CONTROL ROD

main90385-T0012×2iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main90385-T0013×2iGUN14#..IND201604-202001

90105T0135

main90105-T0135

90105T0149

main90105-T0149

90119T0140

main90119-T0140

90119T0243

main90119-T0243

90119T0264

main90119-T0264

90119T0413

main90119-T0413

90177T0009

main90177-T0009

90178T0041

main90178-T0041

90178T0048

main90178-T0048

90201T0015

main90201-T0015

90209T0002

main90209-T0002

9418801601

main94188-01601

31 parts on this diagram · 1 diagram in section
