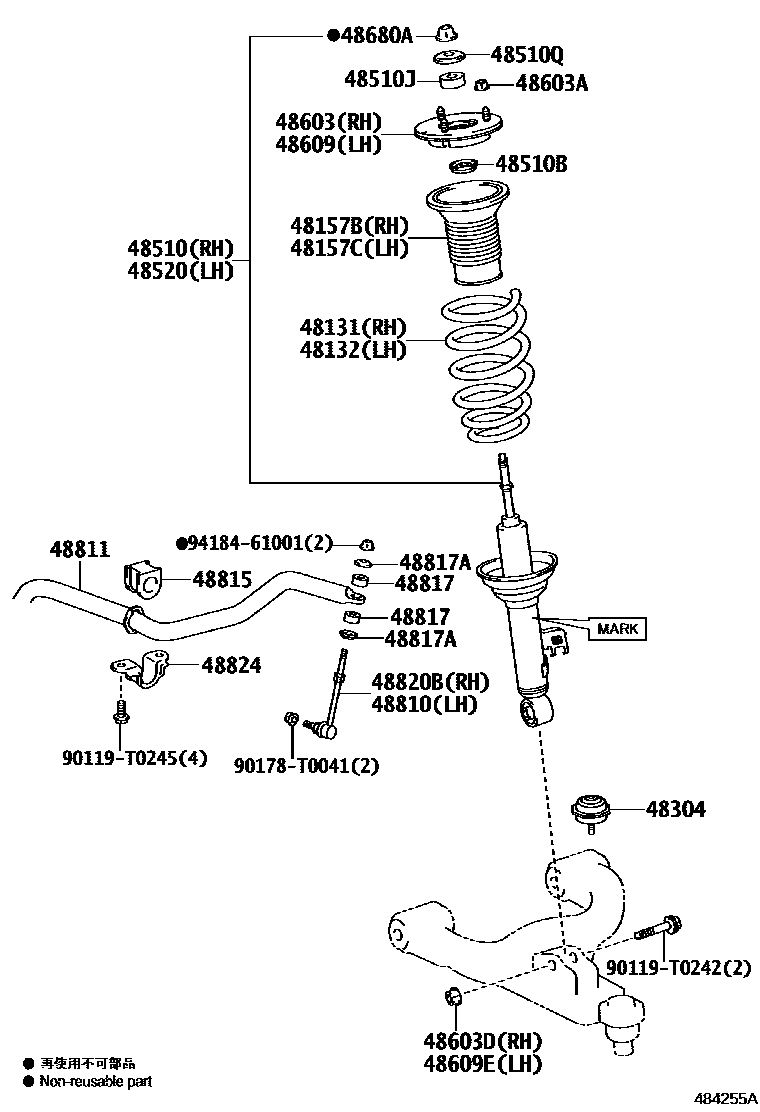

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0KE10iTGN141..IND201809-202010

MADE IN INDONESIA

main48131-0KE20iGUN142..IDN,MA,TH;GUN143..(28,28E,28V,N)..PHL202009

main48131-0KE40iGUN14#..IND201604-202001

main48131-0KR00iTGN141..IND201809-202010

MADE IN INDIA

main48131-0KR10iGUN142..(6F,6FC)..IND202011-202301

main48131-0KS00iTGN140..MA202101

48132SPRING, FRONT COIL, LH

main48131-0KE10iTGN141..IDNP..6FC;TGN141..5F..27..LA;TGN140..IDNP..(IDN,PHL,TH)201511-202008

main48131-0KE20iGUN143..5F..(GCC,GEN)201511-201904

main48131-0KE40iGUN14#..IND201604-202001

main48131-0KR00iTGN141..IND201809-202010

MADE IN INDIA

main48131-0KR10iGUN142..5F..IND202011

main48131-0KS00iTGN140..MA202101

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-0K010iTGN140..VN201604-202009

main48157-0K050iGUN142..5F..IND202011

main48157-0K060iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-0K010iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201604-202102

main48157-0K050iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

main48157-0K060iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-0K010×2iTGN140..6FC..MA201604-202012

main48304-0K070×2iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main48304-0K130×2iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z265iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

MARK 48510-0K710

main48510-8Z266iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

MARK 48510-0K720

main48510-8Z267iTGN140..5F..MA201611-201905

MARK 48510-0KG40

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-T2003×2iGUN14#..IND201511-202001

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-T1013×2iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201604

main90948-T1014×2iGUN142..IDN,TH;GUN143,TGN140..IDNP..(IDN,PHL)202009

main90948-T1015×2iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-T2004×2iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201511-202102

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z125iTGN140..20E..VN;TGN140..IDNP..(IDN,PHL);GUN142,TGN141..IDN,TH,VN;TGN140..(PHLP,VNP)..(20V,N);GUN143..(28,28E,28V,N)..PHL;TGN140..PHLP..6FC..(20,20E)202009

MARK 48520-0K560

main48520-8Z126iGUN142..5F..IND202011

MARK 48520-0K570

main48520-8Z127iGUN142,TGN140..MA202101

MARK 48520-0K710

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0K090iGUN142..5F..IND202011

main48609-0K140iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main48609-0K150iTGN140..VN201604-202009

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-T0050×6iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0048iGUN142..5F..24V..IDN;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN142..5F..(24G,24Z,G);TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN143..(28,28E,28V,N)..202009

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0K090iGUN14#..IND201604-202001

main48609-0K140iGUN142..TH201511-201707

main48609-0K150iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201604

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0048iTGN141..27G,27Z;GUN142..(6F,6FC)..(24,24G,24Z)..IND202009-202301

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-T0015×2iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

48810LINK ASSY, FRONT STABILIZER, LH

main48820-0K010iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main48820-0K020iGUN14#..IND201604-202001

main48820-0K021iGUN142..5F..IND202407

48811BAR, STABILIZER, FRONT

main48811-0K140iGUN142..TH201511-201707

main48811-0K160iGUN142..5F..IND202011

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0K080×2iGUN142..5F..IND202011

main48815-0K130×2iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201511-202102

48817CUSHION, FRONT STABILIZER

main90948-T1002×4iGUN142..TH201511-201707

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-T2002×4iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0K010iGUN142..TH201511-201707

main48820-0K020iGUN14#..IND201604-202001

main48820-0K021iGUN142..5F..IND202407

48824BRACKET, STABILIZER, FRONT

main48824-0K010×2iGUN142..TH201511-201707

90119T0242

main90119-T0242

90119T0245

main90119-T0245

90178T0041

main90178-T0041

9418461001

main94184-61001

27 parts on this diagram · 1 diagram in section
