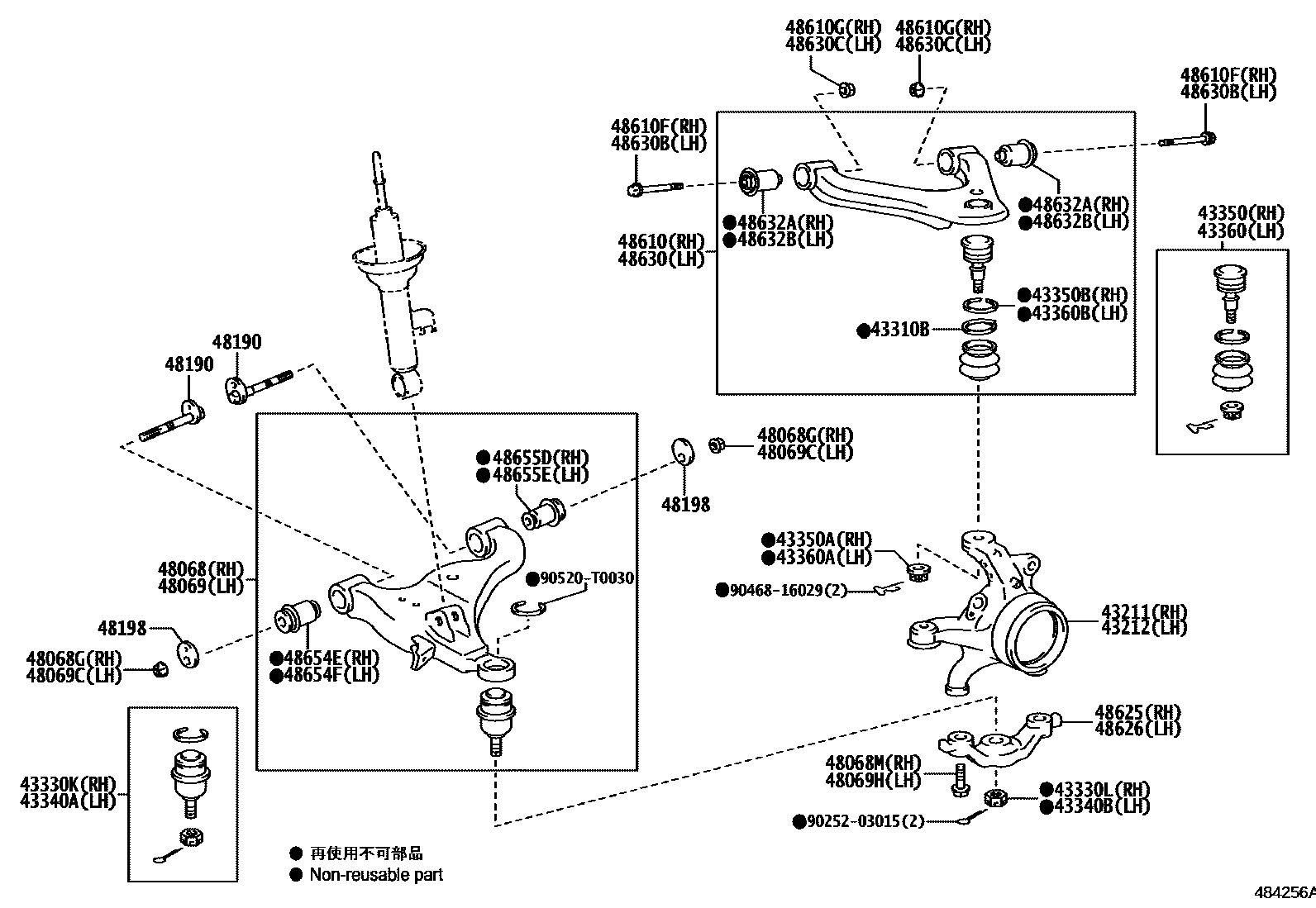

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-KK030iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

43212KNUCKLE, STEERING, LH

main43212-KK030iGUN142..TH201511-202304

43310BRING, SET (FOR DUST COVER)

main90580-10001iGUN142,TGN141..IND..(DCRL,HTWC)201511-202304

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09500iGUN142..5F..IND201604-202301

main43330-09510iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202304

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-T0003iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202304

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09500iGUN142,TGN141..IND..(DCRL,HTWC)201604-202301

main43330-09510iTGN140..VN201511-202304

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-T0003iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202304

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-09015iGUN14#,TGN14#..IDNP,MAP,PHLP,VNP201511-201702

sub43310-09017

main43310-09017iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201702-202304

main43310-09040iGUN142..5F..IND201604-202301

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-T0001iTGN140..6FC..MA201511-202304

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-T0029iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-09015iGUN14#,TGN14#..IDNP,MAP,PHLP,VNP201511-201702

sub43310-09017

main43310-09017iGUN142..TH201702-202304

main43310-09040iGUN14#..IND201604-202301

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-T0001iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511-202304

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-T0029iGUN142..TH201511-202304

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0K010iTGN140..VN201604-202102

main48068-0K030iGUN142..5F..IND201604-202301

main48068-0K080iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202304

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-T0073iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202304

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-T0305iTGN141..27G,27Z;GUN142..(6F,6FC)..(24,24G,24Z)..IND201511-202304

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0K010iTGN140..VN201604-202102

main48069-0K030iGUN142..5F..IND201604-202301

main48069-0K080iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-T0073iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202304

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-T0305iGUN14#..IND201511-202304

48190CAM ASSY, CAMBER ADJUST

main48190-0K020iGUN142..TH201511-202304

48198CAM, CAMBER ADJUST, NO.2

main48198-0K020iTGN140..6FC..MA201511-202304

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-0K010iTGN140..VN201604-202102

main48610-0K020iGUN142..TH201511-202304

main48610-0K030iGUN14#..IND201604-202301

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90119-T0348iTGN140..5F..MA201511-202304

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90178-T0047iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202304

48625ATTACHMENT, FRONT LOWER BALL JOINT, RH

main48625-0K011iTGN140..VN201511-202301

sub48625-0K050

main48625-0K050iGUN14#,TGN14#..IDN,MA,PHL,VN202301-202304

48626ATTACHMENT, FRONT LOWER BALL JOINT, LH

main48626-0K011iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202301

sub48626-0K050

main48626-0K050iGUN14#,TGN14#..IDN,MA,PHL,VN202301-202304

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-0K010iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201604-202102

main48630-0K020iGUN142..IDN,TH;GUN143,TGN140..IDNP..(IDN,PHL)201511-202304

main48630-0K030iGUN14#..IND201604-202301

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90119-T0348iGUN142..TH201511-202304

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90178-T0047iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-0K010iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201604-202102

main48632-0K060iTGN141..IND;GUN142..(6F,6FC)..IND201604-202301

main48632-0K130iGUN142..TH201511-202304

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-0K010iTGN140..VN201604-202102

main48632-0K060iGUN142..5F..IND201604-202301

main48632-0K130iGUN142..TH201511-202304

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-0K010iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201604-202102

main48654-0K070iGUN142..5F..IND201604-202301

main48654-0K120iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-0K010iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201604-202102

main48654-0K070iGUN142..5F..IND201604-202301

main48654-0K120iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202304

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-0K010iTGN140..VN201604-202102

main48655-0K070iGUN142..5F..IND201604-202301

main48655-0K120iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202304

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-0K010iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201604-202102

main48655-0K070iGUN142..5F..IND201604-202301

main48655-0K120iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

9025203015

main90252-03015

9046816029

main90468-16029

90520T0030

main90520-T0030

38 parts on this diagram · 1 diagram in section
