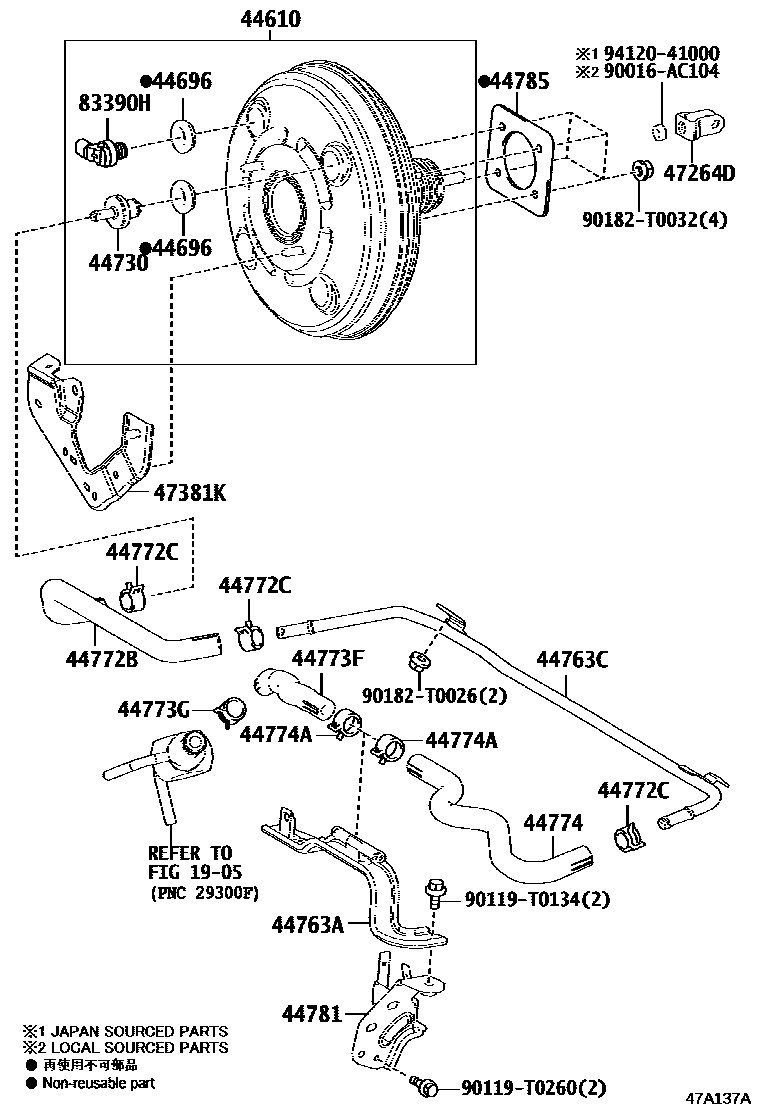

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1ECO PACKAGE-W(IDLE STOP SYSTE0005 1 0006 1 0007 1

1905

44610BOOSTER ASSY, BRAKE

main44610-0K300iTGN141..IDNP..6FC;TGN141..5F..27..LA;TGN140..IDNP..(IDN,PHL,TH)201511-202008

main44610-0K310iGUN142..TH201511-201707

main44610-0K320iGUN143..PHLP..(28E,28V,N)201511-202102

main44610-0K460iGUN142..SA201511-201807

main44610-0K530iGUN142..6FC..IND202011-202301

main44610-0K850iGUN142..6FC..24Z202011-202301

ECO PACKAGE-WITH(IDLE STOP SYSTEM)

main44610-0K860iTGN141..IND201809-202010

44696GROMMET, CHECK VALVE

main90016-AT003×2iTGN140..6FC..MA201511-202012

main90480-24439×2iGUN142..5F..IND202011

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iGUN142..5F..24V..IDN;GUN142..5F..(24G,24Z,G);GUN142..6FC..(IDN,MA,TH);GUN143..(28,28E,28V,N)..PHL202009

44763ATUBE, HOSE TO HOSE, NO.1

main44763-KK080iGUN142..IDN,TH;GUN143..(28,28E,28V,N)..PHL202009

main44763-KK130iTGN140..TH202009-202304

main44763-KK140iTGN141..5F..27..GCC;TGN140..PHLP..(20E,20G,N);TGN141..IDNP..5F..(27G,27SR)201511

main44763-KK170iGUN142..(6F,6FC)..IND202011-202301

main44763-KK180iGUN142..5F..IND202303

44763CTUBE, HOSE TO HOSE, NO.2

main44763-KK060iGUN14#..RHD..(20G,28V)202009-202304

main44763-KK070iTGN140..TH202009-202304

main44763-KK120iGUN142..GCC;GUN143..5F..(GCC,GEN);GUN143..PHLP..(28E,28G,28V,N)201511

main44763-KK150iTGN140..IDNP..PHL;TGN141..IDNP..6FC;TGN141..5F..27..LA201511-202008

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-KK100iTGN140..IDNP..PHL;TGN141..IDNP..6FC;TGN141..5F..27..LA201511-202008

main44772-KK130iTGN140..6FC..MA201511-202012

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-KK080iGUN143..TH;GUN142..RHD..(GEN,IDN)201511-202008

main44772-KK090iTGN141..IND201511-202010

NO.1

main44772-KK110iTGN140..IDNP..PHL;TGN141..IDNP..6FC;TGN141..5F..27..LA201511-202008

main44772-KK120iGUN143..(28,28E,28V,N)..PHL202009

main44774-KK090iTGN140..IDN,TH201511-202008

NO.2

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90466-T0019×3iGUN142..GEN,IDN;GUN143..6FC..GCC;GUN143..IDNP..(PHL,TH)201511-202008

44773FHOSE, UNION TO CHECK VALVE

main44773-KK030iGUN142..5F..24V..IDN;GUN142..5F..(24G,24Z,G);GUN142..6FC..(IDN,MA,TH);GUN143..(28,28E,28V,N)..PHL202009

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGUN142..GEN,IDN;GUN143..6FC..GCC;GUN143..IDNP..(PHL,TH)201511-202008

44774HOSE, UNION TO CONNECTOR TUBE

main44774-KK020iTGN140..IDNP..PHL;TGN141..IDNP..6FC;TGN141..5F..27..LA201511-202008

main44774-KK050iTGN140..IDN,TH201511-202008

main44774-KK070iGUN143..TH;GUN142..RHD..(GEN,IDN)201511-202008

main44774-KK080iGUN143..(28,28E,28V,N)..PHL202009

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-T0019×2iGUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)202009-202304

44781BRACKET, HOSE

main44781-KK020iGUN142..IND..DCRL201511-202010

main44781-KK030iTGN140..TH202009-202304

44785GASKET, BRAKE BOOSTER

main44785-17010iGUN14#..IND201511-202001

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0K070iTGN140..VN201511-202009

main47264-0K080iGUN142..IND..DCRL201604-202010

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-0K050iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

main47381-0K060iGUN14#..IND201604-202001

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGUN142..GEN,IDN;GUN143..6FC..GCC;GUN143..IDNP..(PHL,TH)201511-202008

90016AC104

main90016-AC104

90119T0134

main90119-T0134

90119T0260

main90119-T0260

90182T0026

main90182-T0026

90182T0032

main90182-T0032

9412041000

main94120-41000

24 parts on this diagram · 6 diagrams in section
