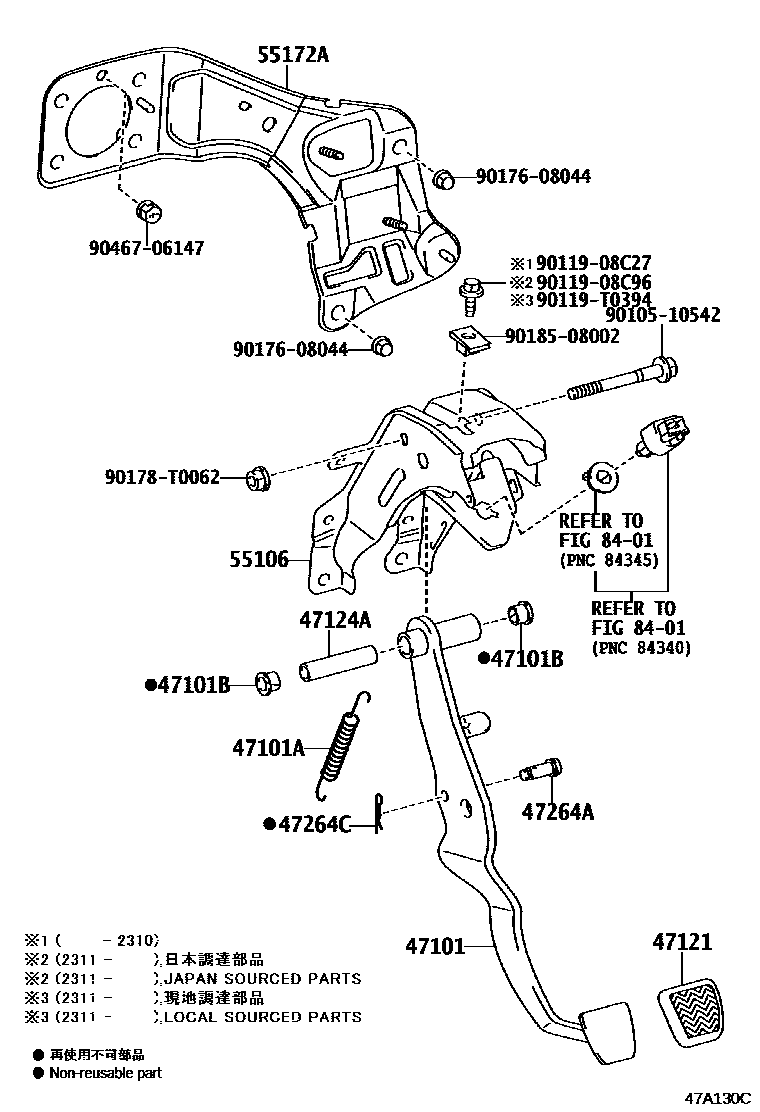

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47101PEDAL SUB-ASSY, BRAKE

main47101-KK010iGUN142,TGN141..MTM..IND..(DCRL,HTWC)201511-202301

main47101-KK020iTGN140..5F..VN201511-202304

main47101-KK030iGUN142,TGN141..6FC..IND201511-202304

main47101-KK040iGUN143,TGN14#..6FC..(20,20E,20V,27V,28E,28V)..(PHL,VN)201511-202304

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iGUN142..TH201511-202304

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGUN142..TH201511-202304

47121PAD, BRAKE PEDAL

main31321-02020iGUN142,TGN141..LHD..5F..(24,24G,27G,27SR)201511-202304

main47121-02030iGUN143,TGN141..IDNP..6FC;GUN142,TGN140..IDNP..6FC..(20E,20G,20Q,20V,24G,24Q,24V)..(GEN,IDN,PHL)201511-202304

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10121iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202304

47264APIN(FOR PUSH ROD)

main47148-35010iGUN142..TH201511-202304

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iGUN142..5F..24V..IDN;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN142..5F..(24G,24Z,G);TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN143..(28,28E,28V,N)..201511-202304

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-KK030iGUN142..TH201511-202304

55172ABASE, BRAKE PEDAL SUPPORT

main55172-KK010iTGN140..6FC..MA201511-202012

main55172-KK020iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511-202102

main55172-KK040iTGN140..IDN;GUN142..5F..24V..IDN;TGN140..(20E,20V)..MA;GUN142..5F..(24G,24Z,G);GUN142..6FC..(IDN,MA,TH)202009-202304

main55172-KK050iTGN140..20E..VN;TGN140..IDNP..PHL;TGN140..(PHLP,VNP)..(20V,N);TGN140..PHLP..6FC..(20,20E);GUN143,TGN141..(27V,28,28E,28V,N)..(PHL,VN)202009-202304

8401

9010510542

main90105-10542

9011908C27

main90119-08C27

9011908C96

main90119-08C96

90119T0394

main90119-T0394

9017608044

main90176-08044

90178T0062

main90178-T0062

9018508002

main90185-08002

9046706147

main90467-06147

18 parts on this diagram · 4 diagrams in section
