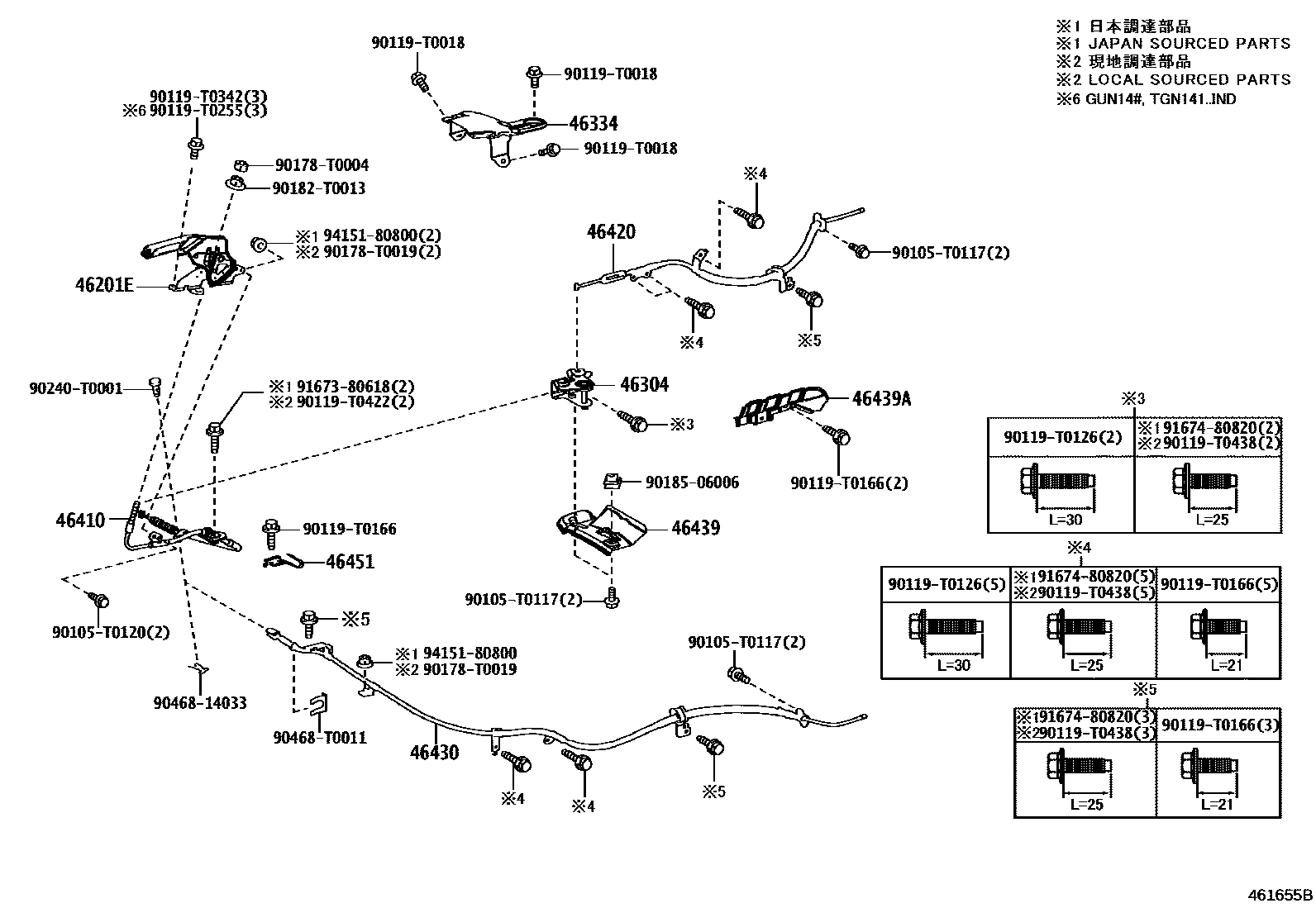

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K140-C0iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202304

BLACK,TRIM2#,4#

main46201-0K140-C0iGUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;TGN140..IDNP..(20E,N)..PHL201604-202102

BLACK,TRIM2#

main46201-0K140-C0iTGN14#..6FC..VN202010

BLACK,TRIM4#

main46201-0K230-C0iTGN140..5F..MA201611-202012

BLACK,TRIM2#,4#

main46201-0K230-C0iTGN140..20V..MA201709-202012

BLACK,TRIM2#

main46201-0K250-C0iTGN141..27G;GUN142..6FC..24G..IND201604-202301

BLACK,TRIM2#

main46201-0K250-C0iTGN140..20..VN201711-202009

BLACK,TRIM2#,4#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K060iGUN142..TH201511-202304

46334PROTECTOR, INTERMEDIATE LEVER

main46334-0K010iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202304

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K090iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202304

main46410-0K110iGUN142,TGN141..IND..(DCRL,HTWC)201604-202301

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K200iTGN140..GEN;TGN141..IDNP..5F..(27G,27SR)201511-202304

main46420-0K250iGUN142..IDN,MA,TH;GUN143..(28,28E,28V,N)..PHL201511-202304

main46420-0K270iGUN14#..IND201604-201909

sub46420-0K271

main46420-0K271iGUN142..DCRL201910-202003

sub46420-0K272

main46420-0K272iGUN142..5F..IND202004-202301

main46420-0K330iTGN141..IND201607-201909

sub46420-0K331

main46420-0K331iTGN141..IND201910-202003

sub46420-0K332

main46420-0K332iTGN141..IND202004-202301

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K110iGUN14#,TGN141..IND201604-201909

sub46430-0K111

main46430-0K111iGUN142,TGN141..IND..(DCRL,HTWC)201910-202003

sub46430-0K112

main46430-0K112iGUN142..5F..IND202004-202301

main46430-0K200iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202304

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K060iGUN142..TH201511-202304

46439AINSULATOR, PARKING BRAKE CABLE HEAT, NO.2

main46439-0K070iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202304

46451BRACKET, CABLE SUPPORT

main46451-0K050iGUN142..5F..24V..IDN;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN142..5F..(24G,24Z,G);TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN143..(28,28E,28V,N)..201511-202401

sub46451-0K051

main46451-0K051iGUN142..5F;GUN142..6FC..IDN;GUN143,TGN14#..IDN,MA,PHL,VN202402

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0255

main90119-T0255

90119T0342

main90119-T0342

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013

9018506006

main90185-06006

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

9167380618

main91673-80618

9167480820

main91674-80820

9415180800

main94151-80800

28 parts on this diagram · 1 diagram in section
