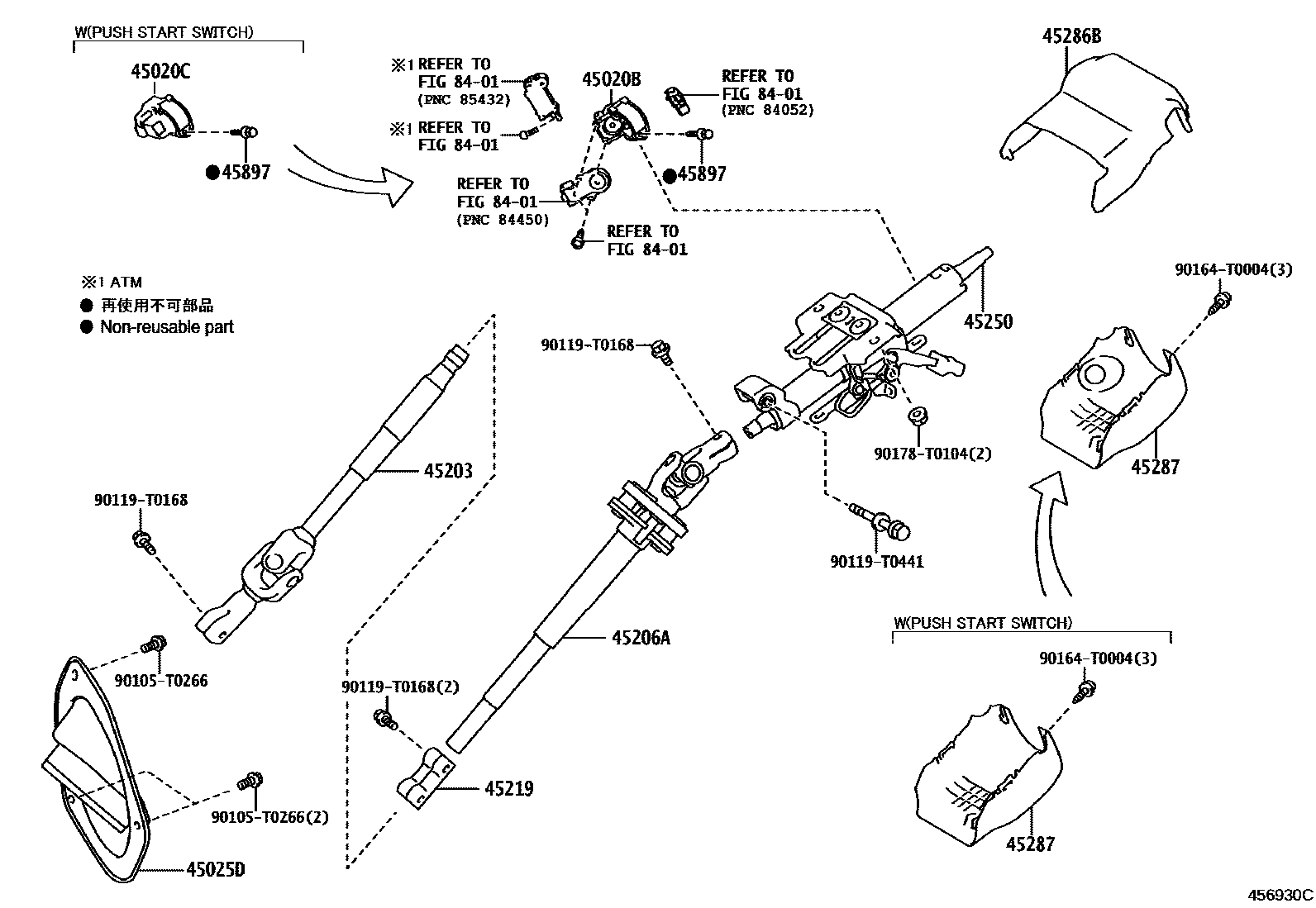

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-0K120iTGN140..20G..VN201604-202012

main45280-0K140iGUN142,TGN141..6FC..(24G,27G)..IND201604-202301

main45280-0K150iTGN141..5F..IND201604-202301

main45280-0K160iGUN14#,TGN140..IDNP..6FC..(20Q,24V,28V)..(IDN,PHL)202009-202304

WIRELESS DOOR LOCK-WITH

main45280-0K160iGUN142..6FC..24V..IDN;GUN14#,TGN14#..IDNP..6FC..(20,20E,20G,20V,24,24G,27,27G,27SRV,28,28E,28G)201511-202008

main45280-0K170iGUN14#,TGN14#..IDNP..5F..(20E,20G,20V,24,24G,24V,27,27G,27SR,28,28E,28G,N)201511-202304

main45280-0K170iGUN14#,TGN140..IDNP..5F..(20G,24G,28,28E,N)202009

WIRELESS DOOR LOCK-WITH

main45280-0K180iTGN140..5F..VN201604-202009

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0K190iTGN140..(20G,20V)..MA201604-202102

main45020-0K200iGUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND201604-201703

sub45020-0K201

main45020-0K201iGUN142..5F..24Z201704-202010

main45020-0K201iTGN141..5F..IND202011-202301

GRADE MARK-V

main45020-0K210iGUN142..RHD..IDNP..(24V,N);GUN143,TGN140..IDNP..(20Q,28V)..(IDN,PHL)202009-202304

main45020-0K210iGUN142..24V..(GEN,TH);GUN14#,TGN140..IDNP..(20Q,24Q,28V)201511-202008

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-KK010iGUN142,TGN141..IND..(DCRL,HTWC)201511-202301

main45025-KK020iTGN140..VN201511-202304

main45025-KK030iGUN142,TGN141..6FC..IND202009-202304

main45025-KK040iGUN143,TGN14#..6FC..(20,20E,20V,27V,28E,28V)..(PHL,VN)202009-202304

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-0K150iGUN142,TGN140..GEN,SA201511-202304

main45203-0K160iGUN14#,TGN14#..LHD..(GCC,GEN,LA)201511-202304

main45203-0K170iGUN14#..IND201604-202301

45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING

main45206-0K070iTGN140..5F..MA201511-202103

sub45206-0K140

main45206-0K080iGUN142,TGN141..IND..(DCRL,HTWC)201604-202301

main45206-0K090iTGN140..VN201511-202103

sub45206-0K120

main45206-0K120iGUN14#,TGN14#..LHD..(GCC,GEN,LA)202104-202304

main45206-0K140iTGN140..TH;GUN14#..RHD..(20G,28V)202104-202304

45219YOKE, STEERING SLIDING

main45219-0K090iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

main45219-0K100iGUN142..5F..IND201604-202301

45250COLUMN ASSY, STEERING

main45250-0K070iGUN14#,TGN140..(20Q,24V,28V)..(IDN,PHL)202009-202304

WIRELESS DOOR LOCK-WITH

main45250-0K070iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511-202102

main45250-0K080iGUN142..MA,TH;GUN14#,TGN14#..(20Q,20V,24V,27V,28V)..(IDN,MA,PHL,VN)201511-202304

main45250-0K080iGUN142..24V..GEN;GUN143..IDNP..28V;GUN142,TGN140..20Q,24Q201511-202008

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)

main45250-0K090iTGN141..27G;GUN142..6FC..24G..IND201604-202301

main45250-0K100iTGN141..5F..IND202011-202301

GRADE MARK-V

main45250-0K100iGUN142,TGN141..(24V,24Z,27V,27Z)..IND..(DCRL,HTWC)201604-202010

45286BCOVER, STEERING COLUMN, UPR

main45286-0K040-C0iTGN14#..6FC..VN201607-202009

BLACK,TRIM4#

main45286-0K040-C0iTGN140..5F..MA201604-202102

BLACK,TRIM2#

main45286-0K040-C0iTGN140..(20,20E,20G)..VN201604-202102

BLACK,TRIM2#,4#

main45286-0K050iGUN142,TGN141..IND202009-202010

main45286-0K050-C0iGUN142,TGN141..(24G,24V,27G,27V,G,N)..IND..(DCRL,HTWC)201604-202301

BLACK,TRIM2#

main45286-0K050-C0iGUN142,TGN141..(24G,24V,27G,27V,G,N)..IND..(DCRL,HTWC)201604-202301

BLACK,TRIM2#,4#

main45286-0K070-C0iGUN142..IDN,TH;GUN143,TGN140..IDNP..(20,20G,20Q,28,28V)..(IDN,PHL)201511-202304

BLACK,TRIM2#,4#

main45286-0K070-C0iGUN143,TGN140..IDNP..(20E,28E,N)..PHL201608-202008

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45024-0K020-C0iTGN141..27G;GUN142..6FC..24G..IND202011-202402

BLACK,TRIM2#

main45024-0K040-C0iGUN142..5F..24Z202011-202402

BLACK,TRIM2#,4#

main45024-0K040-C0iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z)202011-202301

GRADE MARK-V,BLACK,TRIM2#

main45024-0K050-C0iGUN143,TGN140..IDNP..(20E,28E,N)..PHL202009-202402

WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#,4#

sub45024-0K051

main45024-0K050-C0iGUN143,TGN140..IDNP..(20E,28E,N)..PHL202009-202402

BLACK,TRIM2#,4#

sub45024-0K051

main45024-0K050-C0iGUN143,TGN140..IDNP..(20E,28E,N)..PHL202009-202402

BLACK,TRIM2#

sub45024-0K051

main45024-0K080-C0iGUN142..RHD..IDNP..(24V,N);GUN143,TGN140..IDNP..(20Q,28V)..(IDN,PHL)202009-202402

BLACK,TRIM2#,4#

sub45024-0K081

main45287-0K050-C0iTGN140..PHLP..5F..20E201604-202102

BLACK,TRIM2#

main45287-0K050-C0iTGN140..20E..VN;GUN143,TGN140..PHLP..(20,28)201604-202009

BLACK,TRIM2#,4#

main45287-0K060-C0iGUN143..PHLP..28V201604-202102

BLACK,TRIM2#,4#

main45287-0K060-C0iTGN140..(20G,20V)..MA201611-202012

BLACK,TRIM2#

main45287-0K060-C0iTGN140..20V..VN201607-202009

BLACK,TRIM4#

main45287-0K070iGUN142,TGN141..(24G,27G,G,N)..IND202009-202010

main45287-0K070-C0iGUN142,TGN141..(24G,27G,G,N)..IND..(DCRL,HTWC)201604-202009

BLACK,TRIM2#

main45287-0K080iGUN142,TGN141..(24V,24Z,27V,27Z)..IND202009-202010

main45287-0K080-C0iGUN142..24V..IND201604-202009

BLACK,TRIM2#

main45287-0K080-C0iGUN142,TGN141..(24V,27V)..(DCRL,HTWC)201604-202009

BLACK,TRIM2#,4#

main45287-0K110-C0iGUN143..IDNP..(28E,N)201511-202008

BLACK,TRIM2#,4#

main45287-0K110-C0iGUN143,TGN140..IDNP..(20E,28E,N)..PHL201608-202008

BLACK,TRIM2#

main45287-0K110-C0iGUN14#,TGN140..IDNP..(20Q,24V,28V)..(IDN,PHL)202402

WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#,4#

main45287-0K120-C0iGUN142..28V201511-202008

BLACK,TRIM2#,4#

main45287-0K120-C0iGUN142..24V..GEN;GUN143..IDNP..28V;GUN142,TGN140..20Q,24Q201511-202008

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),BLACK,TRIM2#,4#

45897BOLT, STEERING LOCK SET

main45897-12020iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202304

8401

90105T0266

main90105-T0266

90119T0168

main90119-T0168

90119T0441

main90119-T0441

90164T0004

main90164-T0004

90178T0104

main90178-T0104

16 parts on this diagram · 1 diagram in section
