EPC Data

DISC WHEEL & WHEEL CAP

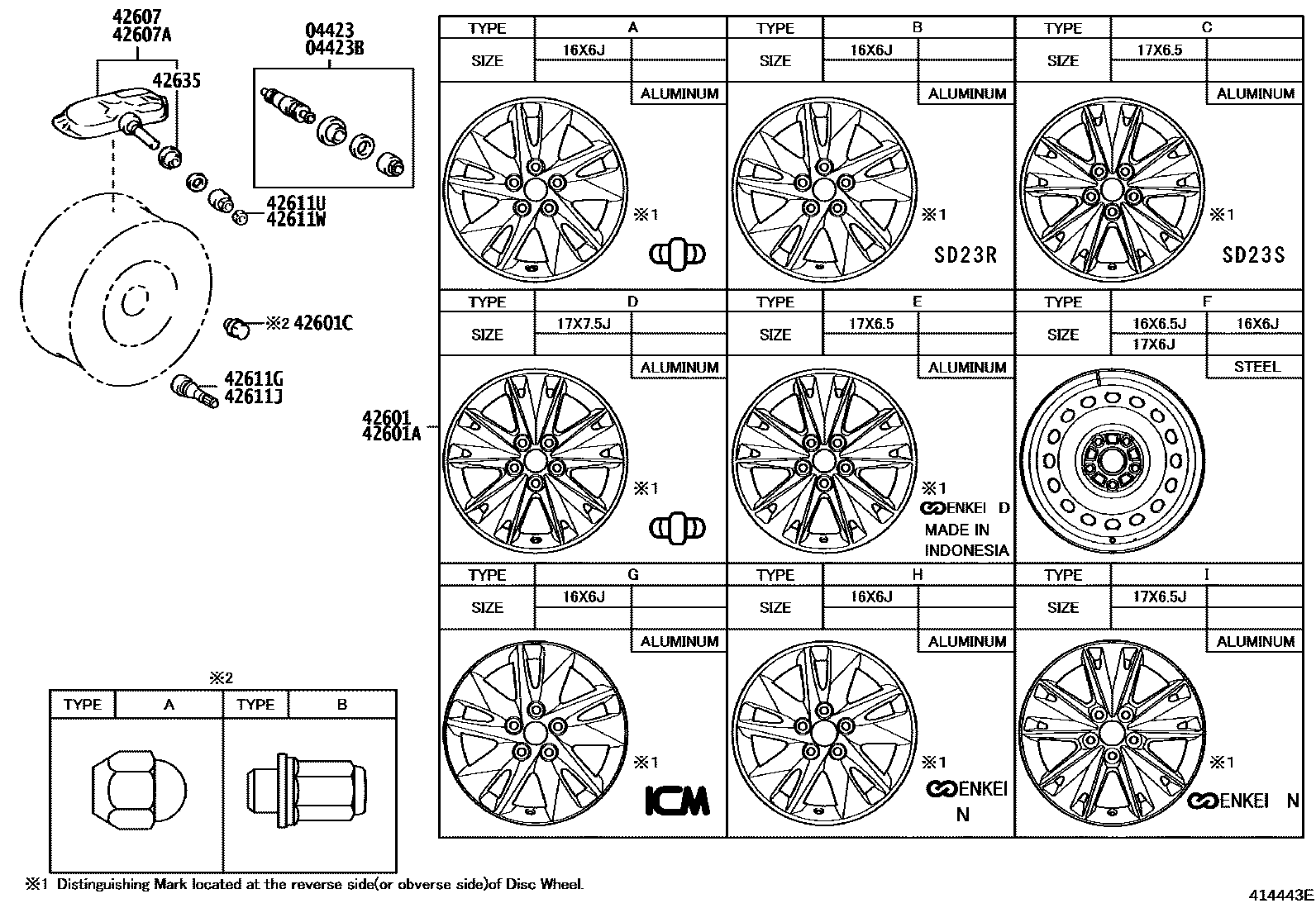

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33060i201708-202304
main04423-33060i201511-201708
TIRE & DISC WHEEL-205/65R16 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH
main04423-33060i201511-201708
TIRE & DISC WHEEL-215/55R17 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH
main04423-33060i201511-201708
TIRE INFLATION PRESSURE WARNING-WITH
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
main04423-33060i201708-202304
main04423-33060i201511-201708
TIRE & DISC WHEEL-215/55R17 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH
main04423-33060i201511-201708
TIRE INFLATION PRESSURE WARNING-WITH
main04423-33060i201511-201708
TIRE & DISC WHEEL-205/65R16 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH
42601WHEEL, DISC
main42611-0KJ50i201511-201610
16X6J,#,TYPE F:REFER ILLUST.
sub42611-0KJ51
main42611-0KJ50i201511-201610
16X6J,#,TIRE & DISC WHEEL-205/65R16 STEEL,TYPE F:REFER ILLUST.
sub42611-0KJ51
main42611-0KJ51i201604-202304
16X6J,#,TYPE F:REFER ILLUST.
main42611-0KJ51i201611-202008
16X6J,#,TIRE & DISC WHEEL-205/65R16 STEEL,TYPE F:REFER ILLUST.
main42611-0KJ51i202009-202304
16X6J,#,TIRE & DISC WHEEL-205/65R16 STEEL&SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL),TYPE F:REFER ILLUST.
main42611-0KJ51i201912-202008
16X6J,#,BRUNEI SPEC&TIRE & DISC WHEEL-205/65R16 STEEL,TYPE F:REFER ILLUST.
main42611-0KJ60i201604-202202
16X6J,#,TYPE F:REFER ILLUST.
sub42611-0KJ61
main42611-0KJ61i202203
16X6J,TYPE F:REFER ILLUST.
main42611-0KL20i201511-202304
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE B:REFER ILLUST.
main42611-0KL20i201511-202304
16X6J,#,TYPE B:REFER ILLUST.
main42611-0KL20i201511-201708
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH,TYPE B:REFER ILLUST.
main42611-0KL30i201511-202304
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST.
main42611-0KL30i201912-202008
17X6.5J,#,OCEANIA GENERAL SPEC&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST.
main42611-0KL30i202009-202304
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE E:REFER ILLUST.
main42611-0KL30i201511-201708
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH,TYPE E:REFER ILLUST.
main42611-0KL30i201511-202008
17X6.5J,#,TYPE E:REFER ILLUST.
main42611-0KL30i201912-202008
17X6.5J,#,NEPAL & SRI LANKA SPEC EURO4&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST.
main42611-0KL50i201604-202110
16X6J,#,TYPE H:REFER ILLUST.
sub42611-0KL51
main42611-0KL50i202011-202110
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE H:REFER ILLUST.
sub42611-0KL51
main42611-0KL50i202011-202109
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE H:REFER ILLUST.
sub42611-0KL51
main42611-0KL51i202110-202301
16X6J,#,TYPE H:REFER ILLUST.
main42611-0KL51i202110
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE H:REFER ILLUST.
main42611-0KL51i202301
16X6J,#,SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL),TYPE H:REFER ILLUST.
main42611-0KL60i201604-201709
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE I:REFER ILLUST.
sub42611-0KL61
main42611-0KL61i201710-202109
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE O:REFER ILLUST.
sub42611-0KL62
main42611-0KL61i202011-202109
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE O:REFER ILLUST.
sub42611-0KL62
main42611-0KL62i202110-202303
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE O:REFER ILLUST.
main42611-0KL62i202110
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE O:REFER ILLUST.
main42611-0KL70i201604-201704
16X6J,#,TYPE G:REFER ILLUST.
sub42611-0KL71
main42611-0KL71i202011-202110
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE G:REFER ILLUST.
sub42611-0KL72
main42611-0KL71i201705-202110
16X6J,#,TYPE G:REFER ILLUST.
sub42611-0KL72
main42611-0KL71i202011-202109
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE G:REFER ILLUST.
sub42611-0KL72
main42611-0KL72i202110
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE G:REFER ILLUST.
main42611-0KL72i202301
16X6J,#,SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL),TYPE G:REFER ILLUST.
main42611-0KL72i202110-202301
16X6J,#,TYPE G:REFER ILLUST.
main42611-0KM30i201709-202012
17X7.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE R:REFER ILLUST.
main42611-0KM30i202101
17X7.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE R:REFER ILLUST.
main42611-0KM50i201511-202304
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE A:REFER ILLUST.
main42611-0KM50i201511-202304
16X6J,#,TYPE A:REFER ILLUST.
main42611-0KM50i201511-201708
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH,TYPE A:REFER ILLUST.
main42611-0KM50i202009
16X6J,#,TIRE & DISC WHEEL-205/65R16 STEEL,TYPE A:REFER ILLUST.
main42611-0KM60i201912-202008
17X6.5J,#,OCEANIA GENERAL SPEC&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE C:REFER ILLUST.
main42611-0KM60i201511-202304
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE C:REFER ILLUST.
main42611-0KM60i201511-201708
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH,TYPE C:REFER ILLUST.
main42611-0KM60i201511-202008
17X6.5J,#,TYPE C:REFER ILLUST.
main42611-0KM60i201912-202008
17X6.5J,#,NEPAL & SRI LANKA SPEC EURO4&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE C:REFER ILLUST.
main42611-0KM60i202009-202304
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE C:REFER ILLUST.
main42611-0KM70i201511-202304
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE D:REFER ILLUST.
main42611-0KM70i201511-202008
17X6.5J,#,TYPE D:REFER ILLUST.
main42611-0KM70i202009-202304
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE D:REFER ILLUST.
main42611-0KM70i201912-202008
17X6.5J,#,OCEANIA GENERAL SPEC&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE D:REFER ILLUST.
main42611-0KM70i201912-202008
17X6.5J,#,NEPAL & SRI LANKA SPEC EURO4&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE D:REFER ILLUST.
main42611-0KM70i201511-201708
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH,TYPE D:REFER ILLUST.
main42611-0KR40i201604-202102
16X6J,#,TYPE K:REFER ILLUST.
main42611-0KR40i202102
16X6J,#,TIRE & DISC WHEEL-205/65R16 STEEL,TYPE K:REFER ILLUST.
main42611-0KR40i201709-202102
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE K:REFER ILLUST.
main42611-0KR50i201611-202012
16X6J,#,TYPE N:REFER ILLUST.
main42611-0KR60i201607-202009
16X6J,#,TYPE L:REFER ILLUST.
main42611-0KR60i201908-202009
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE L:REFER ILLUST.
main42611-0KR70i202010
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE M:REFER ILLUST.
main42611-0KR70i202010
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE M:REFER ILLUST.
main42611-0KR70i201607-202009
17X6.5J,#,TYPE M:REFER ILLUST.
main42611-0KT70i202102
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE Q:REFER ILLUST.
main42611-0KT70i202102
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE Q:REFER ILLUST.
main42611-0KT70i201709-202102
17X6.5J,#,TYPE Q:REFER ILLUST.
main42611-YP010i201912-202008
17X6.5J,#,MLM INDIA SPEC EURO5&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST.
main42611-YP010i201611-201708
17X6.5J,#,MLM INDONESIA SPEC EURO4,TYPE E:REFER ILLUST.
main42611-YP010i201611-202304
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST.
main42611-YP010i201912-202008
17X6.5J,#,MLM INDONESIA SPEC EURO4&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST.
main42611-YP010i202009-202304
17X6.5J,#,MLM INDIA SPEC EURO5&TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE E:REFER ILLUST.
main42611-YP020i201704-201709
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE O:REFER ILLUST.
sub42611-YP021
main42611-YP020i201704-201710
17X6.5J,#,MLM INDIA SPEC EURO4&REAR SEAT-TUMBLE SEAT,TYPE O:REFER ILLUST.
sub42611-YP021
main42611-YP020i201704-201709
17X6.5J,#,MLM INDIA SPEC EURO5&REAR SEAT-TUMBLE SEAT,TYPE O:REFER ILLUST.
sub42611-YP021
main42611-YP021i201710-202010
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE O:REFER ILLUST.
main42611-YP021i201912-202010
17X6.5J,#,MLM INDIA SPEC EURO4&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE O:REFER ILLUST.
main42611-YP021i201710-202010
17X6.5J,#,MLM INDIA SPEC EURO4&REAR SEAT-TUMBLE SEAT,TYPE O:REFER ILLUST.
main42611-YP030i201709-202012
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE R:REFER ILLUST.
main42611-YP030i201912-202012
17X6.5J,#,MLM MALAYSIA SPEC&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE R:REFER ILLUST.
main42611-YP040i201708-202102
16X6J,#,MLM PHILIPPINE SPEC,TYPE K:REFER ILLUST.
main42611-YP050i201711-202009
16X6J,#,MLM VIETNAM SPEC EURO4,TYPE L:REFER ILLUST.
main42611-YP250i202009-202304
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE S:REFER ILLUST.
main42611-YP250i202009-202304
16X6J,#,WITH(MLM PACKAGE(TMMIN VENTURER)),TYPE S:REFER ILLUST.
main42611-YP250i202009-202304
16X6J,#,WITH(MLM PACKAGE),TYPE S:REFER ILLUST.
main42611-YP250i202009-202304
16X6J,#,WITH(MLM PACKAGE(TMMIN VENTURER))&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE S:REFER ILLUST.
main42611-YP250i202009-202304
16X6J,#,WITH(MLM PACKAGE)&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE S:REFERILLUST.
main42611-YP250i202009
16X6J,#,WITH(MLM LUXURY),TYPE S:REFER ILLUST.
main42611-YP260i202009-202304
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE T:REFER ILLUST.
main42611-YP260i202009-202304
16X6J,#,WITH(MLM PACKAGE),TYPE T:REFER ILLUST.
main42611-YP260i202009-202304
16X6J,#,WITH(MLM PACKAGE(TMMIN VENTURER)),TYPE T:REFER ILLUST.
main42611-YP260i202009-202304
16X6J,#,WITH(MLM PACKAGE)&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE T:REFERILLUST.
main42611-YP260i202009-202304
16X6J,#,WITH(MLM PACKAGE(TMMIN VENTURER))&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE T:REFER ILLUST.
main42611-YP260i202009
16X6J,#,WITH(MLM LUXURY),TYPE T:REFER ILLUST.
main42611-YP270i202102
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE V:REFER ILLUST.
main42611-YP270i202102-202310
16X6J,#,WITH(MLM PACKAGE),TYPE V:REFER ILLUST.
main42611-YP280i202010
16X6J,#,WITH(MLM PACKAGE),TYPE W:REFER ILLUST.
main42611-YP280i202010-202104
16X6J,#,WITH(MLM PACKAGE)&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE W:REFERILLUST.
main42611-YP280i202010-202104
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE W:REFER ILLUST.
main42611-YP280i202010
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE W:REFER ILLUST.
main42611-YP290i202101
16X6J,#,WITH(MLM PACKAGE),TYPE U:REFER ILLUST.
main42611-YP290i202101
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE U:REFER ILLUST.
main42611-YP300i202011-202110
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE X:REFER ILLUST.
sub42611-YP301
main42611-YP301i202110-202210
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE X:REFER ILLUST.
main42611-YP310i202011-202110
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE Y:REFER ILLUST.
sub42611-YP311
main42611-YP311i202110-202210
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE Y:REFER ILLUST.
main42611-YYC10i202009-202304
17X6.5J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM(TMMI VENT),TYPE Z:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-0KJ50i201511-201610
16X6J,#,TYPE F:REFER ILLUST.
sub42611-0KJ51
main42611-0KJ50i201511-201610
16X6J,#,TIRE & DISC WHEEL-205/65R16 STEEL,TYPE F:REFER ILLUST.
sub42611-0KJ51
main42611-0KJ51i201912-202008
16X6J,#,BRUNEI SPEC&TIRE & DISC WHEEL-205/65R16 STEEL,TYPE F:REFER ILLUST.
main42611-0KJ51i201604-202304
16X6J,#,TYPE F:REFER ILLUST.
main42611-0KJ51i202009
16X6J,#,OCEANIA GENERAL SPEC&SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL),TYPE F:REFERILLUST.
main42611-0KJ51i202009-202304
16X6J,#,SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL),TYPE F:REFER ILLUST.
main42611-0KJ51i202009-202304
16X6J,#,TIRE & DISC WHEEL-205/65R16 STEEL&SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL),TYPE F:REFER ILLUST.
main42611-0KJ51i201611-202008
16X6J,#,TIRE & DISC WHEEL-205/65R16 STEEL,TYPE F:REFER ILLUST.
main42611-0KJ60i201604-202202
16X6J,#,TYPE F:REFER ILLUST.
sub42611-0KJ61
main42611-0KJ60i202011-202110
16X6J,#,SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL),TYPE F:REFER ILLUST.
sub42611-0KJ61
main42611-0KJ61i202301-202303
16X6J,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE F:REFER ILLUST.
main42611-0KJ61i202203-202301
16X6J,TYPE F:REFER ILLUST.
main42611-0KJ61i202301
16X6J,SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL),TYPE F:REFER ILLUST.
main42611-0KL20i201511-202304
16X6J,#,TYPE B:REFER ILLUST.
main42611-0KL20i201511-202304
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE B:REFER ILLUST.
main42611-0KL20i201511-201708
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH,TYPE B:REFER ILLUST.
main42611-0KL20i202009-202304
16X6J,#,SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE B:REFER ILLUST.
main42611-0KL30i202009-202304
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE E:REFER ILLUST.
main42611-0KL30i201511-202304
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST.
main42611-0KL30i201511-201708
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH,TYPE E:REFER ILLUST.
main42611-0KL30i201912-202008
17X6.5J,#,OCEANIA GENERAL SPEC&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST.
main42611-0KL30i201511-202008
17X6.5J,#,TYPE E:REFER ILLUST.
main42611-0KL30i201912-202008
17X6.5J,#,NEPAL & SRI LANKA SPEC EURO4&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST.
main42611-0KL50i202011-202110
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE H:REFER ILLUST.
sub42611-0KL51
main42611-0KL50i201604-202110
16X6J,#,TYPE H:REFER ILLUST.
sub42611-0KL51
main42611-0KL60i201604-201709
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE I:REFER ILLUST.
sub42611-0KL61
main42611-0KL61i201710-202109
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE O:REFER ILLUST.
sub42611-0KL62
main42611-0KL61i202011-202109
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE O:REFER ILLUST.
sub42611-0KL62
main42611-0KL62i202110-202303
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE O:REFER ILLUST.
main42611-0KL62i202110
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE O:REFER ILLUST.
main42611-0KL70i201604-201704
16X6J,#,TYPE G:REFER ILLUST.
sub42611-0KL71
main42611-0KL71i202011-202110
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE G:REFER ILLUST.
sub42611-0KL72
main42611-0KL71i201705-202110
16X6J,#,TYPE G:REFER ILLUST.
sub42611-0KL72
main42611-0KM30i202101
17X7.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE R:REFER ILLUST.
main42611-0KM30i201709-202012
17X7.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE R:REFER ILLUST.
main42611-0KM50i201511-202304
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE A:REFER ILLUST.
main42611-0KM50i201511-202304
16X6J,#,TYPE A:REFER ILLUST.
main42611-0KM50i201511-201708
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH,TYPE A:REFER ILLUST.
main42611-0KM50i202009-202304
16X6J,#,SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE A:REFER ILLUST.
main42611-0KM50i202009
16X6J,#,TIRE & DISC WHEEL-205/65R16 STEEL,TYPE A:REFER ILLUST.
main42611-0KM60i201511-202304
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE C:REFER ILLUST.
main42611-0KM60i201511-201708
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH,TYPE C:REFER ILLUST.
main42611-0KM60i201511-202008
17X6.5J,#,TYPE C:REFER ILLUST.
main42611-0KM60i201912-202008
17X6.5J,#,OCEANIA GENERAL SPEC&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE C:REFER ILLUST.
main42611-0KM60i201912-202008
17X6.5J,#,NEPAL & SRI LANKA SPEC EURO4&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE C:REFER ILLUST.
main42611-0KM60i202009-202304
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE C:REFER ILLUST.
main42611-0KM70i202009-202304
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE D:REFER ILLUST.
main42611-0KM70i201511-202304
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE D:REFER ILLUST.
main42611-0KM70i201912-202008
17X6.5J,#,OCEANIA GENERAL SPEC&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE D:REFER ILLUST.
main42611-0KM70i201912-202008
17X6.5J,#,NEPAL & SRI LANKA SPEC EURO4&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE D:REFER ILLUST.
main42611-0KM70i201511-202008
17X6.5J,#,TYPE D:REFER ILLUST.
main42611-0KM70i201511-201708
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH,TYPE D:REFER ILLUST.
main42611-0KR40i202102
16X6J,#,TIRE & DISC WHEEL-205/65R16 STEEL,TYPE K:REFER ILLUST.
main42611-0KR40i201604-202102
16X6J,#,TYPE K:REFER ILLUST.
main42611-0KR40i201709-202102
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE K:REFER ILLUST.
main42611-0KR50i201611-202012
16X6J,#,TYPE N:REFER ILLUST.
main42611-0KR60i201607-202009
16X6J,#,TYPE L:REFER ILLUST.
main42611-0KR70i202010
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE M:REFER ILLUST.
main42611-0KR70i202010
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE M:REFER ILLUST.
main42611-0KR70i201607-202009
17X6.5J,#,TYPE M:REFER ILLUST.
main42611-0KT70i202102
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUMWHEEL),TYPE Q:REFER ILLUST.
main42611-0KT70i202102
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE Q:REFER ILLUST.
main42611-0KT70i201709-202102
17X6.5J,#,TYPE Q:REFER ILLUST.
main42611-YP010i201912-202008
17X6.5J,#,MLM INDIA SPEC EURO5&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST.
main42611-YP010i201912-202008
17X6.5J,#,MLM INDONESIA SPEC EURO4&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST.
main42611-YP010i201611-201708
17X6.5J,#,MLM INDONESIA SPEC EURO4,TYPE E:REFER ILLUST.
main42611-YP010i201611-201912
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST.
main42611-YP010i202009-202304
17X6.5J,#,MLM INDIA SPEC EURO5&TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE E:REFER ILLUST.
main42611-YP020i201704-201709
17X6.5J,#,MLM INDIA SPEC EURO5&REAR SEAT-TUMBLE SEAT,TYPE O:REFER ILLUST.
sub42611-YP021
main42611-YP020i201704-201710
17X6.5J,#,MLM INDIA SPEC EURO4&REAR SEAT-TUMBLE SEAT,TYPE O:REFER ILLUST.
sub42611-YP021
main42611-YP020i201704-201709
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE O:REFER ILLUST.
sub42611-YP021
main42611-YP021i201710-202010
17X6.5J,#,MLM INDIA SPEC EURO4&REAR SEAT-TUMBLE SEAT,TYPE O:REFER ILLUST.
main42611-YP021i201710-202010
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE O:REFER ILLUST.
main42611-YP021i201912-202010
17X6.5J,#,MLM INDIA SPEC EURO4&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE O:REFER ILLUST.
main42611-YP030i201912-202012
17X6.5J,#,MLM MALAYSIA SPEC&TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE R:REFER ILLUST.
main42611-YP030i201709-201912
17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE R:REFER ILLUST.
main42611-YP040i201708-202008
16X6J,#,MLM PHILIPPINE SPEC,TYPE K:REFER ILLUST.
main42611-YP050i201711-202009
16X6J,#,MLM VIETNAM SPEC EURO4,TYPE L:REFER ILLUST.
main42611-YP250i202009-202304
16X6J,#,WITH(MLM PACKAGE)&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE S:REFERILLUST.
main42611-YP250i202009-202304
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE S:REFER ILLUST.
main42611-YP250i202009-202304
16X6J,#,WITH(MLM PACKAGE(TMMIN VENTURER))&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE S:REFER ILLUST.
main42611-YP260i202009-202304
16X6J,#,WITH(MLM PACKAGE(TMMIN VENTURER))&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE T:REFER ILLUST.
main42611-YP260i202009-202304
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE T:REFER ILLUST.
main42611-YP260i202009-202304
16X6J,#,WITH(MLM PACKAGE)&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE T:REFERILLUST.
main42611-YP280i202010-202104
16X6J,#,WITH(MLM PACKAGE)&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE W:REFERILLUST.
main42611-YP280i202010-202104
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE W:REFER ILLUST.
main42611-YP300i202011-202110
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE X:REFER ILLUST.
sub42611-YP301
main42611-YP300i202011-202109
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE X:REFER ILLUST.
sub42611-YP301
main42611-YP301i202110-202303
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE X:REFER ILLUST.
main42611-YP310i202011-202109
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE Y:REFER ILLUST.
sub42611-YP311
main42611-YP310i202011-202110
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE Y:REFER ILLUST.
sub42611-YP311
main42611-YP311i202110-202303
16X6J,#,TIRE & DISC WHEEL-205/65R16 ALUMINUM,TYPE Y:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01082i201511-202304
TYPE A:REFER ILLUST.
main90942-01082i201511-202304
TIRE & DISC WHEEL-205/65R16 STEEL,TYPE A:REFER ILLUST.
main90942-01109i201511-202303
TIRE & DISC WHEEL-215/55R17 ALUMINUM,(J),T/P B:REF.ILLUST
main90942-01109i201511-202304
(J),T/P B:REF.ILLUST
main90942-01109i201511-202304
TIRE & DISC WHEEL-205/65R16 ALUMINUM,(J),T/P B:REF.ILLUST
main90942-T1005i201511-202303
TIRE & DISC WHEEL-215/55R17 ALUMINUM,(L),T/P B:REF.ILLUST
main90942-T1005i201511-202304
TIRE & DISC WHEEL-205/65R16 ALUMINUM,(L),T/P B:REF.ILLUST
main90942-T1005i201511-202304
(L),T/P B:REF.ILLUST
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-42021i201708-202008
TIRE & DISC WHEEL-205/65R16 STEEL
main42607-42021i201709-202008
TIRE & DISC WHEEL-215/55R17 ALUMINUM
main42607-42021i202009-202209
main42607-42021i201511-201708
TIRE INFLATION PRESSURE WARNING-WITH
main42607-42021i201511-201708
TIRE & DISC WHEEL-205/65R16 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH
main42607-42021i201511-201708
TIRE & DISC WHEEL-215/55R17 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH
main42607-52040i202209-202304
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-42021i201511-201708
TIRE & DISC WHEEL-205/65R16 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH
main42607-42021i201511-201708
TIRE INFLATION PRESSURE WARNING-WITH
main42607-42021i201511-201708
TIRE & DISC WHEEL-215/55R17 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH
main42607-42021i201708-202209
main42607-52040i202209-202304
SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL)
42611GVALVE (FOR TUBELESS TIRE)
main90080-94031i201611-202012
main90942-05009i202009
TIRE & DISC WHEEL-205/65R16 STEEL
main90942-05009i201511-202304
main90942-T5001i202301-202303
TIRE & DISC WHEEL-215/55R17 ALUMINUM
main90942-T5001i201604-202301
main90942-T5001i202011-202110
TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL)
main90942-T5001i202301-202303
TIRE & DISC WHEEL-205/65R16 ALUMINUM
main90942-T5001i202301
SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL)
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90080-94031i201611-202012
main90942-05009i202009
TIRE & DISC WHEEL-205/65R16 STEEL
main90942-05009i201511-202304
main90942-T5001i202301-202303
TIRE & DISC WHEEL-215/55R17 ALUMINUM
main90942-T5001i202301-202303
TIRE & DISC WHEEL-205/65R16 ALUMINUM
main90942-T5001i201604-202301
main90942-T5001i202011-202110
TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL)
main90942-T5001i202301
SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL)
42611UCAP, TIRE VALVE
main90942-05039i201511-201708
TIRE & DISC WHEEL-215/55R17 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH
main90942-05039i201511-201708
TIRE & DISC WHEEL-205/65R16 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH
main90942-05039i201511-201708
TIRE INFLATION PRESSURE WARNING-WITH
main90942-05039i201708-202304
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05039i201511-201708
TIRE INFLATION PRESSURE WARNING-WITH
main90942-05039i201511-201708
TIRE & DISC WHEEL-215/55R17 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH
main90942-05039i201511-201708
TIRE & DISC WHEEL-205/65R16 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH
main90942-05039i201708-202304
main90942-05039i202209-202304
SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL)
42635GROMMET, TIRE VALVE
main42635-35010i202210-202304
SPARE TIRE-GROUND TIRE(FOR STEEL WHEEL)

12 parts on this diagram · 4 diagrams in section

DISC WHEEL & WHEEL CAP — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
