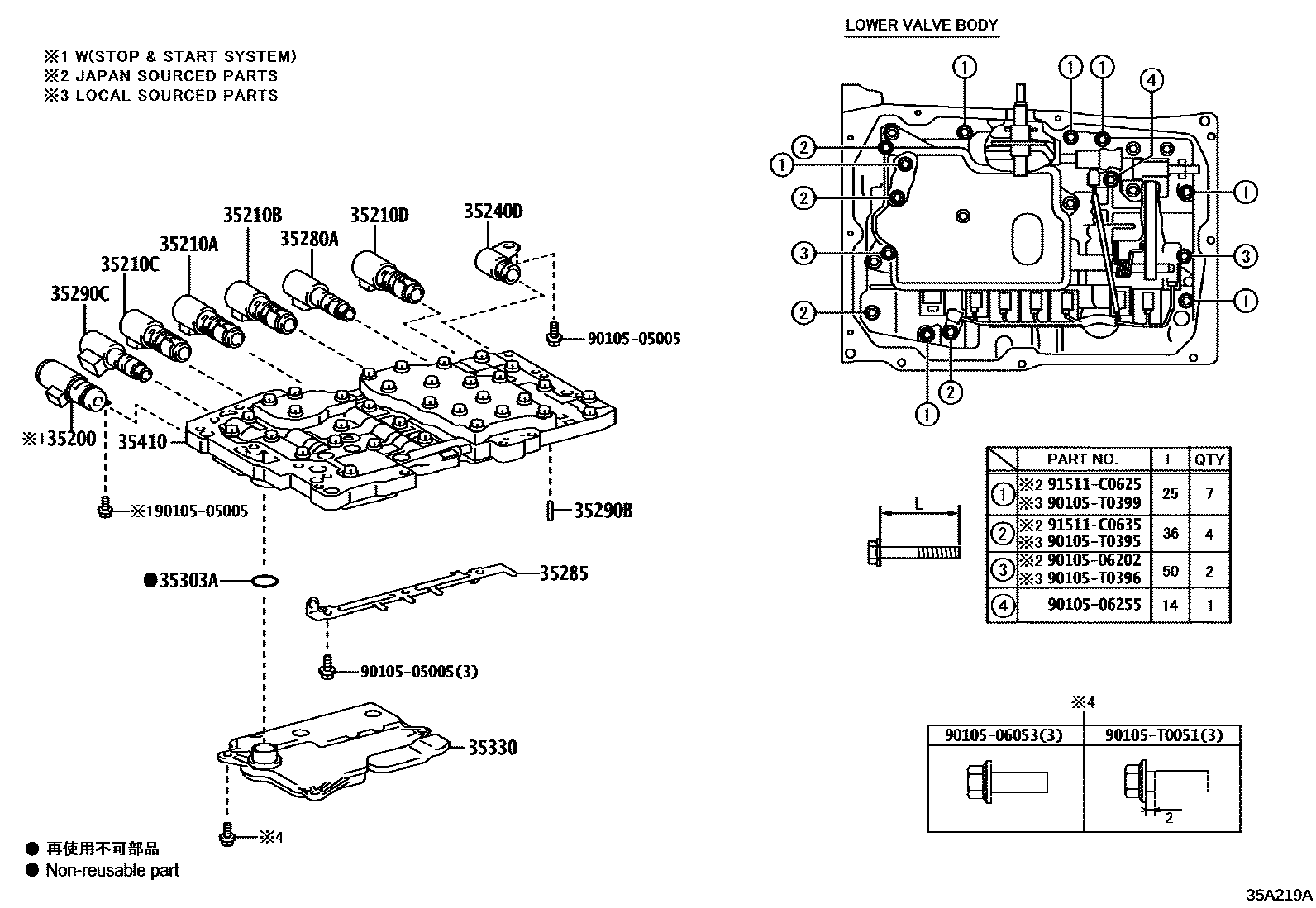

VALVE BODY & OIL STRAINER (ATM)

0001 1AC60E 0002 1 0003 1AC60E

35200PUMP ASSY, OIL, W/SOLENOID

main35200-71010iGUN142..TH201511-201707

35210AVALVE, SOLENOID(SL1)

main35210-71010iGUN143..IND201511-202001

35210BVALVE, SOLENOID(SL3)

main35210-71010iGUN143,TGN141..IDNP..6FC201809-202008

35210CVALVE, SOLENOID(SL2)

main35210-71010iGUN142..TH201511-201707

35210DVALVE, SOLENOID(SL4)

main35210-71010iGUN142..TH201511-201707

35240DVALVE, SOLENOID(SL)

main35240-71010iTGN140..GEN,TH;GUN14#,TGN141..6FC..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202309

35280AVALVE, SOLENOID(SLU)

main35280-0K010iGUN14#,TGN14#..6FC..(GCC,GEN,LA,TH)202108-202309

(L)

main35280-71010iGUN142,TGN140..IDNP..6FC..(20E,20G,20Q,20V,24G,24Q,24V)..(GEN,IDN,PHL)201511-202008

main35280-71020iGUN14#..IDNP..6FC..(IDN,PHL)202207

35285PLATE, SOLENOID LOCK

main35285-0K010iTGN140..MA201912-202012

(L)

main35285-71010iGUN14#,TGN141..IDNP..6FC202103-202206

(J)

35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)

main90250-03045×6iGUN143,TGN141..IDNP..6FC201511-201808

35290CVALVE, SOLENOID(SLT)

main35290-0K010iGUN14#,TGN14#..6FC..(IDN,MA,PHL,VN)202108

(L)

main35290-71020iGUN143,TGN141..IDNP..6FC201511-201808

main35290-71030iGUN14#,TGN141..6FC..(GCC,GEN,LA,TH)202207-202304

(J)

35303ARING, O (FOR OIL STRAINER)

main90301-27010iTGN141..IDNP..6FC201511-201808

(J)

main90301-T0071iTGN141..IDNP..6FC201809-202008

(L)

35330STRAINER ASSY, VALVE BODY OIL

main35330-0K010iTGN140..MA202009-202012

main35330-71010iGUN142..TH201511-201707

35410BODY ASSY, TRANSMISSION VALVE

main35410-0K010iTGN141..IDNP..6FC201809-201911

(L)

main35410-0K030iTGN140..6FC..VN201912-202009

(L)

main35410-0K031iGUN14#,TGN14#..6FC..(IDN,MA,PHL,VN)202402

(L)

main35410-71102iGUN143..IND201511-202001

main35410-71103iGUN14#..IDNP..6FC..(IDN,PHL)202311

main35410-71112iGUN142..TH201511-201707

sub35410-71113

9010505005

main90105-05005

9010506053

main90105-06053

9010506202

main90105-06202

9010506255

main90105-06255

90105T0051

main90105-T0051

90105T0395

main90105-T0395

90105T0396

main90105-T0396

90105T0399

main90105-T0399

91511C0625

main91511-C0625

91511C0635

main91511-C0635

23 parts on this diagram · 3 diagrams in section
