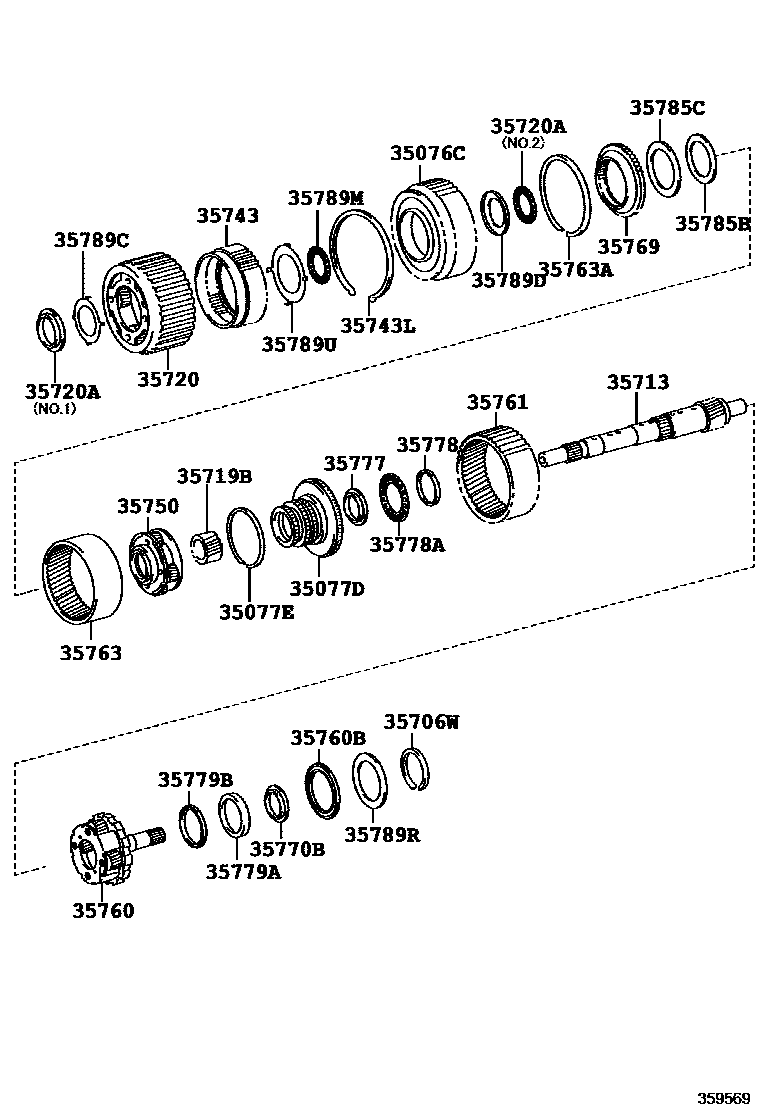

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
(L)
(J)
35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
(J)
(L)
35706WRING, SNAP (FOR PLANETARY SUN GEAR)
35713SHAFT, INTERMEDIATE
main35713-0K010iTGN140..GEN,TH;GUN14#,TGN141..6FC..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201912-202309
(L)
(J)
35719BGEAR, PLANETARY SUN
35720GEAR ASSY, FRONT PLANETARY
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35743GEAR, FRONT PLANETARY RING
35743LRING, SNAP (FOR PLANETARY RING GEAR)
35750GEAR ASSY, CENTER PLANETARY
35760BBEARING, THRUST NEEDLE ROLLER(FOR REAR PLANETRAY SUN GEAR)
35761GEAR, REAR PLANETARY RING
35763GEAR, CENTER PLANETARY RING
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
35769FLANGE, PLANETARY RING GEAR, CTR
35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)
35777RACE, THRUST BEARING, NO.7
35778RACE, THRUST BEARING, NO.8
35778ABEARING, THRUST NEEDLE ROLLER
35779ARACE, THRUST BEARING, NO.9
35779BBEARING, THRUST NEEDLE ROLLER
35785BRACE, THRUST BEARING, NO.4
35785CBEARING, THRUST NEEDLE ROLLER
35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)
35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)
35789MBEARING, THRUST NEEDLE ROLLER
35789RRACE, THRUST BEARING (FOR REAR OUTPUT SHAFT)
T=3.80
T=3.90
main35789-35080iTGN140..GEN,TH;GUN14#,TGN141..6FC..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202309
T=4.00
T=4.10
T=4.20
T=3.85
main35789-50080iTGN140..6FC..20G..IDN;GUN142,TGN141..6FC..(IDN,MA,TH,VN);GUN143,TGN140..6FC..(20,20E,20Q,20V,28E,28V)..(IDN,MA,PHL,VN)201511-202309
T=3.95
T=4.05
T=4.15
T=4.25
T=4.30
main35789-50130iTGN140..GEN,TH;GUN14#,TGN141..6FC..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202309
T=4.35
35789URACE, THRUST BEARING
30 parts on this diagram · 1 diagram in section
