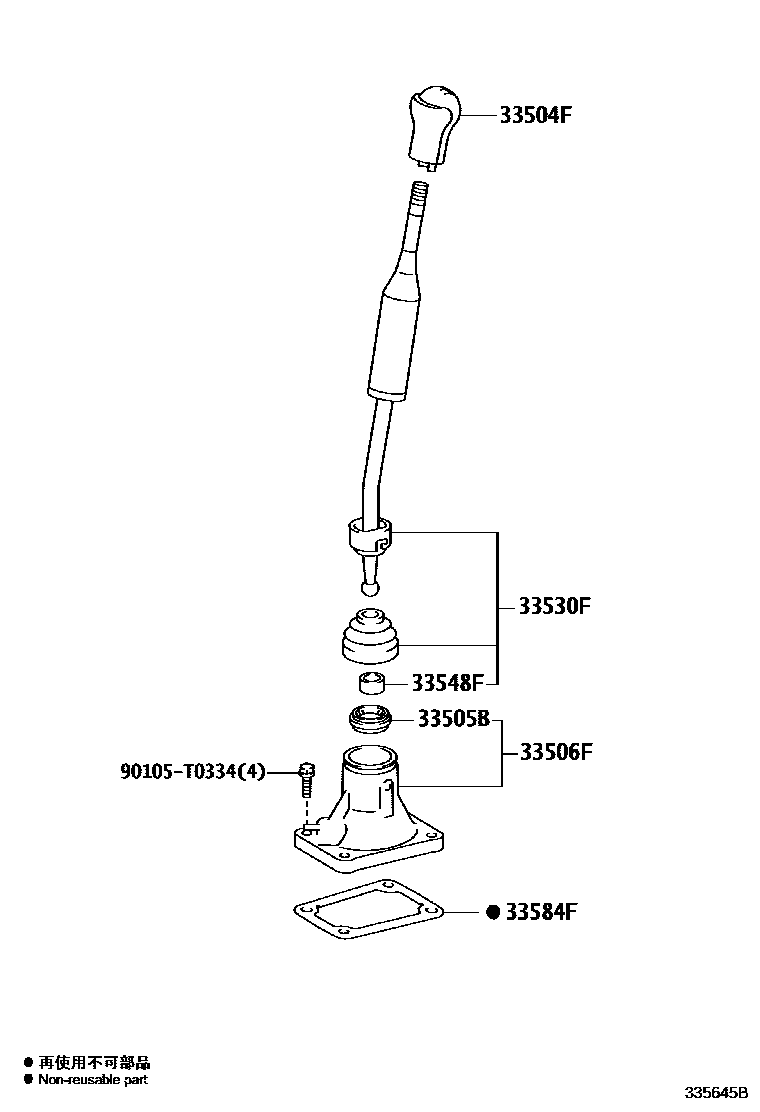

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0K120-C0iTGN140..20V..MA201709-201802

BLACK,TRIM2#

sub33504-0K121

main33504-0K120-C0iGUN142..24V..TH201511-201802

BLACK,TRIM2#,4#

sub33504-0K121

main33504-0K120-C0iTGN140..20G..VN201711-201802

MLM VIETNAM SPEC EURO4,BLACK,TRIM2#,4#

sub33504-0K121

main33504-0K121iGUN142..SA;GUN142..6FC..(24G,28V)..GCC201803-201807

main33504-0K121-C0iGUN142,TGN141..6FC..(24Z,27Z)201803-202304

BLACK,TRIM2#,4#

main33504-0K121-C0iTGN140..20V..VN201803-202009

BLACK,TRIM4#

main33504-0K121-C0iGUN143,TGN140..PHLP..6FC..(20G,28G)201803-202102

BLACK,TRIM2#

main33504-0K121-C0iTGN140..20G..VN201803-202009

MLM VIETNAM SPEC EURO4,BLACK,TRIM2#

main33504-0K121-C0iGUN142,TGN141..6FC..(24Z,27Z)202210-202301

BLACK,TRIM2#,4#,THA SOURCED PARTS

main33504-0K130-C0iGUN143..28G..TH;TGN140..(MAP,PHLP)..6FC..20E;GUN14#,TGN14#..6FC..(20G,24,27,28)..(GCC,LA,VN);GUN142,TGN140..6FC..(20,20G,20V,24G,24V)..(GEN,IDN)201511-201802

BLACK,TRIM2#,4#

sub33504-0K131

main33504-0K130-C0iGUN143..28G..IND;TGN140..IDNP..6FC..20E;GUN143,TGN141..6FC..(27G,28E)..(IND,PHL)201604-201802

BLACK,TRIM2#

sub33504-0K131

main33504-0K131iGUN142,TGN140..6FC..(20,24)..(GCC,GEN)201803-201807

main33504-0K131-C0iGUN143,TGN140..IDNP..6FC..(20E,28E)201803-202304

BLACK,TRIM2#,4#

main33504-0K131-C0iTGN141..VN201803-202009

BLACK,TRIM4#

main33504-0K131-C0iGUN143,TGN140..6FC..(20E,28E)201803-202301

BLACK,TRIM2#

main33504-0K131-C0iTGN140..TH;GUN14#,TGN141..6FC..(20G,27,28)202009-202304

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#

main33504-0K150-C0iGUN142,TGN141..5F..(24,27SR)201511-202304

BLACK,TRIM2#,4#

main33504-0K150-C0iTGN140..5F..MA201604-202102

BLACK,TRIM2#

main33504-0K170iGUN142,TGN141..5F..(24G,27G,G,N)..IND202009-202010

main33504-0K170-C0iGUN142..(24G,G,N)..IND201604-202301

BLACK,TRIM2#

main33504-0K180-C0iGUN14#,TGN140..5F..(20Q,24Q,28G)..(IDN,PHL)201511-201906

BLACK,TRIM2#,4#

sub33504-0K181

main33504-0K181-C0iGUN143..IDNP..5F..28G201907-202008

BLACK,TRIM2#

main33504-0K181-C0iGUN143..IDNP..5F..28G201907-202008

BLACK,TRIM2#,4#

main33504-0K200-C0iGUN142,TGN141..5F..(24V,27V)..IND201604-201909

BLACK,TRIM2#

sub33504-0K201

main33504-0K200-C0iGUN142..24Z201604-201909

BLACK,TRIM2#,4#

sub33504-0K201

main33504-0K201iGUN142..5F..(24V,24Z)..IND201910-202001

main33504-0K201-C0iGUN142,TGN141..5F..(24V,27V)..IND..(DCRL,HTWC)201910-202010

BLACK,TRIM2#

main33504-0K201-C0iGUN142..5F..24Z202002-202010

BLACK,TRIM2#,4#

main33504-0K201-C0iTGN141..5F..IND202011-202301

GRADE MARK-V&DOOR INNER GARNISH-FRONT:PAINT REAR:PAINT,BLACK,TRIM2#

main33504-0K260-C0iGUN142..6F201709-201912

BLACK,TRIM2#

sub33504-0K261

main33504-0K261-C0iGUN142..24202011-202301

BLACK,TRIM2#,4#

main33504-0K261-C0iGUN142..6F202002-202010

BLACK,TRIM2#

main33504-0K350-C0iGUN142,TGN141..6FC..(24Z,27Z)202210-202301

BLACK,TRIM2#,4#,IND SOURCED PARTS

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-0K010iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202107

TYPE B:REFER 33-01

main33505-0K010iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202304

TYPE C:REFER 33-01

main33505-0K010iGUN142..24201709-202301

main33505-0K010iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202010

TYPE B:REFER 33-01,TYPE C:REFER 33-01

main33505-35030iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202305

TYPE A:REFER 33-01

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-0K070iGUN142..6F201709-202301

main33570-0K080iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND201511-202305

TYPE A:REFER 33-01

main33570-0K090iTGN140..5F..VN201511-202107

TYPE B:REFER 33-01

main33570-0K100iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202304

TYPE C:REFER 33-01

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0K610iGUN142..5F..IND201604-202003

sub33530-0K611

main33530-0K611iGUN142..5F..IND202004-202010

main33530-0K620iTGN140..(PHLP,VNP)..5F201604-201908

sub33530-0K621

main33530-0K621iTGN140..PHLP..N201909-202102

main33530-0K640iGUN143..PHLP..5F201604-201908

sub33530-0K641

main33530-0K641iGUN143..PHLP..5F..28G201909-202102

main33530-0K720iGUN142..6F201709-202003

sub33530-0K721

main33530-0K721iGUN142..24202004-202301

main33530-0K770iTGN141..5F..27..GCC201511-201907

sub33530-0K771

main33530-0K771iTGN141..5F..LA201908-202304

main33530-0K790iGUN14#..IDNP..5F..(IDN,PHL)201511-201907

sub33530-0K791

main33530-0K791iGUN14#..IDNP..5F201908-202008

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-04010iGUN142,TGN141..5F..(24G,24Z,27G,G)..IND..(DCRL,HTWC)201511-202304

main33548-60040iGUN142..6F..DCRL201709-202301

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-0K020iGUN142..24201709-202301

main33584-0K040iTGN140..5F..VN201704-202107

TYPE B:REFER 33-01

main33584-71010iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND201511-202304

TYPE C:REFER 33-01

main33584-71010iGUN14#,TGN14#..5F201511-201703

TYPE B:REFER 33-01

main33584-71010iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202301

TYPE A:REFER 33-01,TYPE C:REFER 33-01

main33584-71010iTGN141..5F..IND201511-202305

TYPE A:REFER 33-01

90105T0334

main90105-T0334

7 parts on this diagram · 5 diagrams in section
