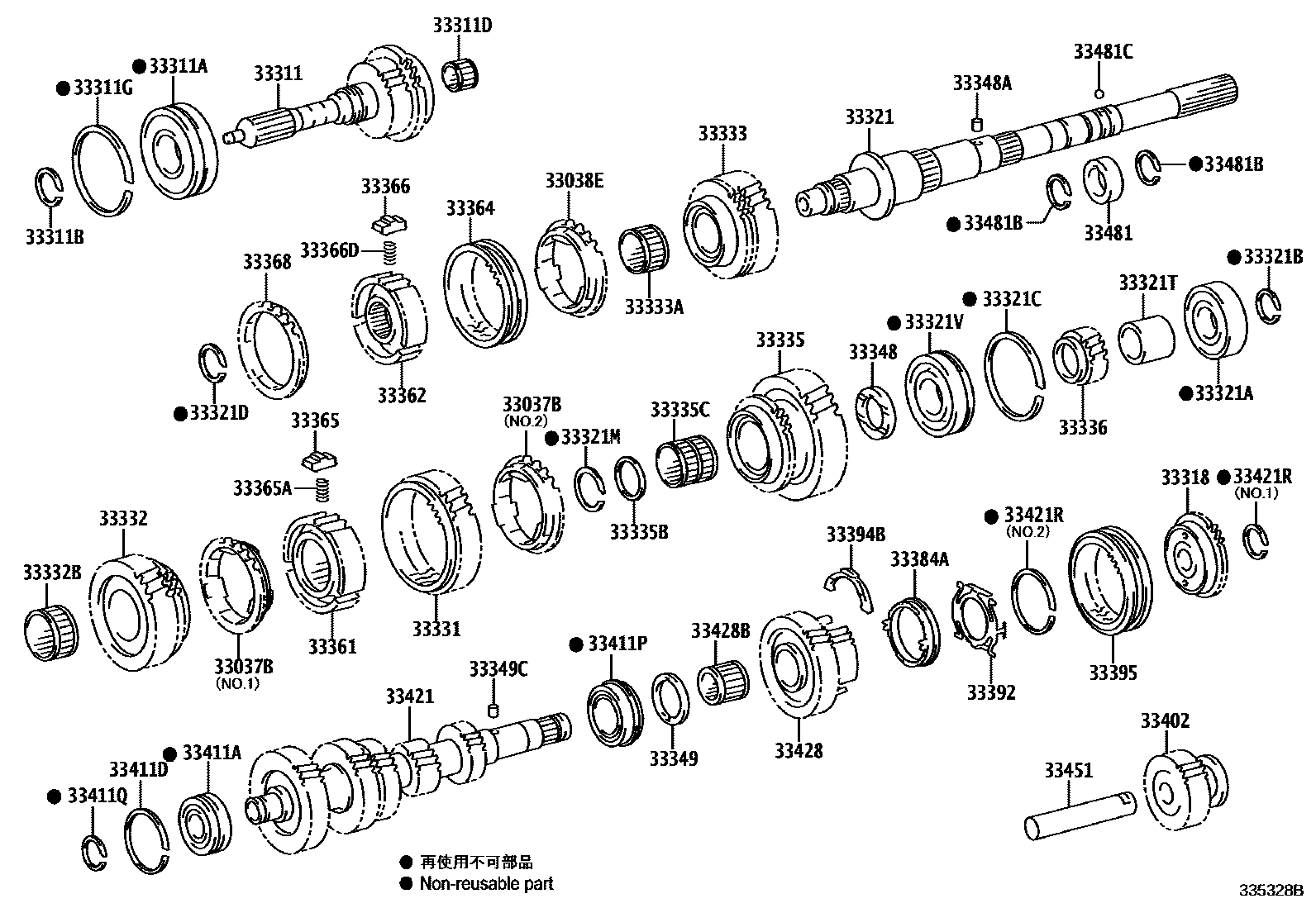

TRANSMISSION GEAR (MTM)

0001 1R151 0002 1RC60

33037BRING SET, SYNCHRONIZER, NO.1

main33037-0K010iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

T/P A:SEE 33-01,NO.2

main33037-0K020iGUN142,TGN14#..5F201511-201601

T/P A:SEE 33-01,NO.1

main33037-0K030iTGN141..5F..27G202009-202301

T/P C:SEE 33-01,NO.2

main33037-0K040iGUN142,TGN14#..5F201511-201601

T/P C:SEE 33-01,NO.1

main33037-0K060iTGN141..5F..IND201511-202010

T/P B:SEE 33-01,NO.2

main33037-0K070iGUN142..24202011-202301

main33037-0K130iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

T/P A:SEE 33-01,NO.1

main33037-0K140iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009-202403

T/P C:SEE 33-01,NO.1

main33037-0K150iGUN14#,TGN140..5F..(IDN,PHL,VN)202403

T/P C:SEE 33-01,NO.2

main33037-0K160iGUN14#,TGN140..5F..(IDN,PHL,VN)202403

T/P C:SEE 33-01,NO.1

main33037-35030iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T/P B:SEE 33-01,NO.1

33038ERING SET, SYNCHRONIZER, NO.2

main33038-0K010iGUN142,TGN140..5F..(IND,PHL)202104

TYPE A:REFER 33-01

main33038-0K020iGUN14#,TGN140..5F..(IDN,PHL,VN)202403

main33038-0K030iGUN14#,TGN140..5F..(IDN,PHL,VN)202202-202403

TYPE C:REFER 33-01

main33038-0K040iGUN142..24202011-202301

sub33038-0K090

main33038-0K050iTGN141..5F..27..GCC;GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA)201511-202010

TYPE A:REFER 33-01

main33038-0K060iTGN141..5F..IND201511-202010

TYPE B:REFER 33-01

main33038-0K070iTGN140..5F..VN201511-202009

TYPE C:REFER 33-01

33311SHAFT, INPUT

main33301-0K012iGUN142,TGN14#..5F201511-201601

TYPE A:REFER 33-01

main33301-0K051iGUN142,TGN14#..5F201511-201602

TYPE C:REFER 33-01

main33301-0K052iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

TYPE C:REFER 33-01

main33301-0K070iGUN142,TGN14#..5F201511-201604

TYPE B:REFER 33-01

main33301-0K090iTGN140..5F..VN201601-202009

TYPE A:REFER 33-01

main33301-0K120iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

TYPE B:REFER 33-01

main33311-0K070iGUN142..24202011-202301

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-T0021iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

TYPE B:REFER 33-01

main90363-T0030iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE C:REFER 33-01

main90363-T0041iGUN142..24202011-202301

main90363-T0048iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

TYPE A:REFER 33-01

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-38008iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=2.10,MARK A,TYPE A:REFER 33-01

main90520-38009iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202010

T=2.15,MARK B,TYPE A:REFER 33-01

main90520-38010iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=2.20,MARK C,TYPE A:REFER 33-01

main90520-38011iTGN140..5F..VN201511-202009

T=2.25,MARK D,TYPE A:REFER 33-01

main90520-38012iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202010

T=2.30,MARK E,TYPE A:REFER 33-01

main90520-38013iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

T=2.35,MARK F,TYPE A:REFER 33-01

main90520-38014iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

T=2.40,MARK G,TYPE A:REFER 33-01

main90520-T0049iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T=2.10,MARK A,TYPE B:REFER 33-01

main90520-T0050iTGN141..5F..IND201511-202010

T=2.15,MARK B,TYPE B:REFER 33-01

main90520-T0051iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T=2.20,MARK C,TYPE B:REFER 33-01

main90520-T0052iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

T=2.25,MARK D,TYPE B:REFER 33-01

main90520-T0053iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T=2.30,MARK E,TYPE B:REFER 33-01

main90520-T0054iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T=2.35,MARK F,TYPE B:REFER 33-01

main90520-T0055iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T=2.40,MARK G,TYPE B:REFER 33-01

main90520-T0142iGUN142..24202011-202301

T=2.65,MARK A

main90520-T0143iGUN142..24202011-202301

T=2.70,MARK B

main90520-T0144iGUN142..6F201709-202010

T=2.75,MARK C

main90520-T0145iGUN142..24202011-202301

T=2.80,MARK D

main90520-T0146iGUN142..24202011-202301

T=2.85,MARK E

main90520-T0147iGUN142..24202011-202301

T=2.90,MARK F

main90520-T0239iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=2.10,MARK A,TYPE C:REFER 33-01

main90520-T0240iTGN140..5F..VN201511-202009

T=2.15,MARK B,TYPE C:REFER 33-01

main90520-T0241iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

T=2.20,MARK C,TYPE C:REFER 33-01

main90520-T0242iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

T=2.25,MARK D,TYPE C:REFER 33-01

main90520-T0243iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

T=2.30,MARK E,TYPE C:REFER 33-01

main90520-T0244iTGN141..5F..27G202009-202301

T=2.35,MARK F,TYPE C:REFER 33-01

main90520-T0245iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

T=2.40,MARK G,TYPE C:REFER 33-01

33311DBEARING, INPUT SHAFT

main90364-T0014iTGN140..5F..VN201511-202009

TYPE A:REFER 33-01

main90364-T0019iTGN141..5F..IND201511-202010

TYPE B:REFER 33-01

main90364-T0024iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

TYPE C:REFER 33-01

main90364-T0038iGUN142..24202011-202301

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-67003iGUN142..24202011-202301

main90520-88001iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE C:REFER 33-01

main90520-T0037iGUN142,TGN14#..5F201511-201512

TYPE A:REFER 33-01

main90520-T0040iTGN140..5F..VN201511-202009

TYPE B:REFER 33-01

main90520-T0284iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201512-202102

TYPE A:REFER 33-01

33318PIECE, GEAR SPLINE, NO.5

main33318-0K030iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

TYPE B:REFER 33-01

main33318-0K040iTGN141..5F..27G202009-202301

TYPE C:REFER 33-01

main33318-0K060iTGN140..5F..VN201511-202009

TYPE A:REFER 33-01

33321SHAFT, OUTPUT

main33302-0K020iGUN142..6F201709-202010

main33321-0K051iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

TYPE B:REFER 33-01

main33321-0K060iTGN14#..5F201511-201603

TYPE C:REFER 33-01

main33321-0K061iGUN142..5F..IND202305

TYPE A:REFER 33-01

main33321-0K120iGUN14#,TGN14#..5F201511-201711

TYPE A:REFER 33-01

main33321-0K121iTGN141..5F..27G202009-202301

TYPE A:REFER 33-01

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-T0020iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE B:REFER 33-01

main90363-T0032iTGN141..5F..IND201511-202010

TYPE C:REFER 33-01

main90363-T0049iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

TYPE A:REFER 33-01

main90366-T0074iGUN142..6F201709-202003

main90366-T0129iGUN142..24202011-202301

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-28031iTGN141..5F..27G202009-202301

T=2.65,MARK A,TYPE A:REFER 33-01

main90520-28032iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

T=2.70,MARK B,TYPE A:REFER 33-01

main90520-28033iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

T=2.75,MARK C,TYPE A:REFER 33-01

main90520-28034iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

T=2.80,MARK D,TYPE A:REFER 33-01

main90520-28035iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

T=2.85,MARK E,TYPE A:REFER 33-01

main90520-28037iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202010

T=2.90,MARK F,TYPE A:REFER 33-01

main90520-28039iTGN141..5F..27G202009-202301

T=2.95,MARK G,TYPE A:REFER 33-01

main90520-28042iTGN140..5F..(20E,20G,20Q)..(IDN,VN);GUN14#,TGN141..(IDNP,PHLP)..5F..(24G,24V,27,28,28E,N)202009-202305

T=3.00,MARK H,TYPE A:REFER 33-01

main90520-28043iTGN141..5F..27G202009-202301

T=3.05,MARK J,TYPE A:REFER 33-01

main90520-28045iTGN141..5F..27G202009-202301

T=3.10,MARK K,TYPE A:REFER 33-01

main90520-28046iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202010

T=3.15,MARK L,TYPE A:REFER 33-01

main90520-28047iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

T=3.20,MARK M,TYPE A:REFER 33-01

main90520-28048iTGN140..5F..VN201511-202009

T=3.25,MARK N,TYPE A:REFER 33-01

main90520-28049iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202010

T=3.30,MARK P,TYPE A:REFER 33-01

main90520-28050iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=3.35,MARK Q,TYPE A:REFER 33-01

main90520-28051iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

T=3.40,MARK R,TYPE A:REFER 33-01

main90520-28052iTGN140..5F..VN201511-202009

T=3.45,MARK S,TYPE A:REFER 33-01

main90520-T0110iTGN140..5F..VN201511-202009

T=2.65,MARK A,TYPE B:REFER 33-01

main90520-T0111iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

T=2.70,MARK B,TYPE B:REFER 33-01

main90520-T0112iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

T=2.75,MARK C,TYPE B:REFER 33-01

main90520-T0113iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T=2.80,MARK D,TYPE B:REFER 33-01

main90520-T0114iTGN141..5F..IND201511-202010

T=2.85,MARK E,TYPE B:REFER 33-01

main90520-T0115iTGN141..5F..IND201511-202010

T=2.90,MARK F,TYPE B:REFER 33-01

main90520-T0116iTGN140..5F..VN201511-202009

T=2.95,MARK G,TYPE B:REFER 33-01

main90520-T0117iTGN140..5F..VN201511-202009

T=3.00,MARK H,TYPE B:REFER 33-01

main90520-T0118iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=3.05,MARK J,TYPE B:REFER 33-01

main90520-T0119iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T=3.10,MARK K,TYPE B:REFER 33-01

main90520-T0120iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T=3.15,MARK L,TYPE B:REFER 33-01

main90520-T0121iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

T=3.20,MARK M,TYPE B:REFER 33-01

main90520-T0122iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=3.25,MARK N,TYPE B:REFER 33-01

main90520-T0123iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

T=3.30,MARK P,TYPE B:REFER 33-01

main90520-T0124iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

T=3.35,MARK Q,TYPE B:REFER 33-01

main90520-T0125iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

T=3.40,MARK R,TYPE B:REFER 33-01

main90520-T0126iTGN141..5F..IND201511-202010

T=3.45,MARK S,TYPE B:REFER 33-01

main90520-T0252iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

T=2.65,MARK A,TYPE C:REFER 33-01

main90520-T0253iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

T=2.70,MARK B,TYPE C:REFER 33-01

main90520-T0254iTGN141..5F..LA202009-202304

T=2.75,MARK C,TYPE C:REFER 33-01

main90520-T0255iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=2.80,MARK D,TYPE C:REFER 33-01

main90520-T0256iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

T=2.85,MARK E,TYPE C:REFER 33-01

main90520-T0257iTGN141..5F..IND201511-202010

T=2.90,MARK F,TYPE C:REFER 33-01

main90520-T0258iTGN140..5F..VN201511-202009

T=2.95,MARK G,TYPE C:REFER 33-01

main90520-T0259iTGN140..5F..VN201511-202009

T=3.00,MARK H,TYPE C:REFER 33-01

main90520-T0260iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

T=3.05,MARK J,TYPE C:REFER 33-01

main90520-T0261iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

T=3.10,MARK K,TYPE C:REFER 33-01

main90520-T0262iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=3.15,MARK L,TYPE C:REFER 33-01

main90520-T0263iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=3.20,MARK M,TYPE C:REFER 33-01

main90520-T0264iTGN141..5F..LA202009-202304

T=3.25,MARK N,TYPE C:REFER 33-01

main90520-T0265iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=3.30,MARK P,TYPE C:REFER 33-01

main90520-T0266iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

T=3.35,MARK Q,TYPE C:REFER 33-01

main90520-T0267iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

T=3.40,MARK R,TYPE C:REFER 33-01

main90520-T0268iTGN140..5F..VN201511-202009

T=3.45,MARK S,TYPE C:REFER 33-01

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-T0038iGUN142,TGN14#..5F201511-201512

T=1.7,TYPE A:REFER 33-01,TYPE C:REFER 33-01

main90520-T0041iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=2.41,TYPE B:REFER 33-01

main90520-T0285iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

T=1.7,TYPE A:REFER 33-01

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-30014iTGN140..5F..(20E,20G,20Q)..(IDN,VN);GUN14#,TGN141..(IDNP,PHLP)..5F..(24G,24V,27,28,28E,N)202009-202305

T=1.80,MARK A,TYPE A:REFER 33-01

main90520-30015iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

T=1.85,MARK B,TYPE A:REFER 33-01

main90520-30016iTGN141..5F..27G202009-202301

T=1.90,MARK C,TYPE A:REFER 33-01

main90520-30017iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=1.95,MARK D,TYPE A:REFER 33-01

main90520-30018iTGN140..5F..(20E,20G,20Q)..(IDN,VN);GUN14#,TGN141..(IDNP,PHLP)..5F..(24G,24V,27,28,28E,N)202009-202305

T=2.00,MARK E,TYPE A:REFER 33-01

main90520-30019iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=2.05,MARK F,TYPE A:REFER 33-01

main90520-30020iTGN140..5F..(20E,20G,20Q)..(IDN,VN);GUN14#,TGN141..(IDNP,PHLP)..5F..(24G,24V,27,28,28E,N)202009-202305

T=2.10,MARK G,TYPE A:REFER 33-01

main90520-T0063iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=1.80,MARK A,TYPE B:REFER 33-01

main90520-T0064iTGN140..5F..VN201511-202009

T=1.85,MARK B,TYPE B:REFER 33-01

main90520-T0065iTGN141..5F..IND201511-202010

T=1.90,MARK C,TYPE B:REFER 33-01

main90520-T0066iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T=1.95,MARK D,TYPE B:REFER 33-01

main90520-T0067iTGN141..5F..IND201511-202010

T=2.00,MARK E,TYPE B:REFER 33-01

main90520-T0068iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

T=2.05,MARK F,TYPE B:REFER 33-01

main90520-T0069iTGN141..5F..IND201511-202010

T=2.10,MARK G,TYPE B:REFER 33-01

main90520-T0148iGUN142..6F201709-202010

T=1.80,MARK A

main90520-T0149iGUN142..24202011-202301

T=1.85,MARK B

main90520-T0150iGUN142..6F201709-202010

T=1.90,MARK C

main90520-T0151iGUN142..6F201709-202010

T=1.95,MARK D

main90520-T0152iGUN142..6F201709-202010

T=2.00,MARK E

main90520-T0153iGUN142..6F201709-202010

T=2.05,MARK F

main90520-T0276iTGN140..5F..VN201511-202009

T=1.80,MARK A,TYPE C:REFER 33-01

main90520-T0277iTGN140..5F..VN201511-202009

T=1.85,MARK B,TYPE C:REFER 33-01

main90520-T0278iTGN141..5F..IND201511-202010

T=1.90,MARK C,TYPE C:REFER 33-01

main90520-T0279iTGN140..5F..VN201511-202009

T=1.95,MARK D,TYPE C:REFER 33-01

main90520-T0280iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=2.00,MARK E,TYPE C:REFER 33-01

main90520-T0281iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

T=2.05,MARK F,TYPE C:REFER 33-01

main90520-T0282iTGN141..5F..LA202009-202304

T=2.10,MARK G,TYPE C:REFER 33-01

33321MRING, SHAFT SNAP (FOR BEARING)

main90520-36007iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=2.30,MARK A,TYPE A:REFER 33-01

main90520-36008iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

T=2.35,MARK B,TYPE A:REFER 33-01

main90520-36009iTGN140..5F..(20E,20G,20Q)..(IDN,VN);GUN14#,TGN141..(IDNP,PHLP)..5F..(24G,24V,27,28,28E,N)202009-202305

T=2.40,MARK C,TYPE A:REFER 33-01

main90520-36010iTGN141..5F..27G202009-202301

T=2.45,MARK D,TYPE A:REFER 33-01

main90520-36011iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=2.50,MARK E,TYPE A:REFER 33-01

main90520-36012iTGN140..5F..(20E,20G,20Q)..(IDN,VN);GUN14#,TGN141..(IDNP,PHLP)..5F..(24G,24V,27,28,28E,N)202009-202305

T=2.55,MARK F,TYPE A:REFER 33-01

main90520-36013iTGN140..5F..(20E,20G,20Q)..(IDN,VN);GUN14#,TGN141..(IDNP,PHLP)..5F..(24G,24V,27,28,28E,N)202009-202305

T=2.60,MARK G,TYPE A:REFER 33-01

main90520-T0103iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

T=2.30,MARK A,TYPE B:REFER 33-01

main90520-T0104iTGN141..5F..IND201511-202010

T=2.35,MARK B,TYPE B:REFER 33-01

main90520-T0105iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

T=2.40,MARK C,TYPE B:REFER 33-01

main90520-T0106iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=2.45,MARK D,TYPE B:REFER 33-01

main90520-T0107iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

T=2.50,MARK E,TYPE B:REFER 33-01

main90520-T0108iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

T=2.55,MARK F,TYPE B:REFER 33-01

main90520-T0109iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=2.60,MARK G,TYPE B:REFER 33-01

main90520-T0269iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

T=2.30,MARK A,TYPE C:REFER 33-01

main90520-T0270iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

T=2.35,MARK B,TYPE C:REFER 33-01

main90520-T0271iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

T=2.40,MARK C,TYPE C:REFER 33-01

main90520-T0272iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

T=2.45,MARK D,TYPE C:REFER 33-01

main90520-T0273iTGN141..5F..27G202009-202301

T=2.50,MARK E,TYPE C:REFER 33-01

main90520-T0274iTGN140..5F..VN201511-202009

T=2.55,MARK F,TYPE C:REFER 33-01

main90520-T0275iTGN141..5F..27G202009-202301

T=2.60,MARK G,TYPE C:REFER 33-01

33321TSPACER (FOR OUTPUT SHAFT)

main35469-0K050iGUN142..24202011-202301

main90387-T0007iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

TYPE A:REFER 33-01

main90387-T0010iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

TYPE C:REFER 33-01

main90387-T0011iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE B:REFER 33-01

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main90363-T0022iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

TYPE B:REFER 33-01

main90363-T0031iGUN14#,TGN14#..5F201511-201611

TYPE C:REFER 33-01

main90363-T0047iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

TYPE A:REFER 33-01

33331GEAR, REVERSE

main33331-0K031iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

TYPE B:REFER 33-01

main33331-0K040iTGN140..5F..VN201511-202009

TYPE C:REFER 33-01

main33331-0K060iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

TYPE A:REFER 33-01

33332GEAR, 2ND

main33033-0K030iTGN140..5F..VN201511-202009

TYPE B:REFER 33-01

main33033-0K050iTGN141..5F..IND201511-202010

TYPE C:REFER 33-01

main33033-0K070iTGN140..5F..VN201511-202009

TYPE A:REFER 33-01

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-T0011iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

TYPE A:REFER 33-01

main90364-T0020iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE B:REFER 33-01

main90364-T0026iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

TYPE C:REFER 33-01

main90364-T0035iGUN142..24202011-202301

33333GEAR, 3RD

main33034-0K070iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

TYPE B:REFER 33-01

main33034-0K080iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

TYPE C:REFER 33-01

main33034-0K090iGUN142..6F201709-202010

main33034-0K110iTGN141..5F..27..GCC;GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA)201511-202010

TYPE A:REFER 33-01

main33034-0K120iTGN141..5F..IND202101-202301

TYPE A:REFER 33-01

main33034-0K140iGUN142..24202204-202301

main33034-0K150iTGN141..5F..IND202202-202301

TYPE C:REFER 33-01

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-T0012iTGN141..5F..27G202009-202301

TYPE A:REFER 33-01

main90364-T0022iTGN140..5F..VN201511-202009

TYPE B:REFER 33-01

main90364-T0027iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

TYPE C:REFER 33-01

main90364-T0036iGUN142..6F201709-202010

33335GEAR, 1ST

main33032-0K021iGUN142,TGN14#..5F201511-201601

TYPE A:REFER 33-01

main33032-0K041iTGN140..5F..VN201511-202009

TYPE B:REFER 33-01

main33032-0K071iGUN142..5F..IND202305

TYPE A:REFER 33-01

main33032-0K100iTGN141..5F..27G202009-202301

TYPE A:REFER 33-01

33335BSPACER(FOR 1ST GEAR BEARING)

main90560-39002iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

TYPE A:REFER 33-01

main90560-T0010iTGN140..5F..VN201511-202009

TYPE B:SEE 33-01,(L)

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-T0010iTGN140..5F..VN201511-202009

TYPE A:REFER 33-01

main90364-T0021iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

TYPE B:REFER 33-01

main90364-T0025iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

TYPE C:REFER 33-01

main90364-T0034iGUN142..6F201709-202010

33336GEAR, 5TH

main33036-0K010iGUN142..24202011-202301

main33336-0K012iGUN142..5F201511-201602

TYPE A:REFER 33-01

main33336-0K031iGUN14#,TGN14#..5F201511-201709

TYPE C:REFER 33-01

main33336-0K032iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201709-202102

TYPE C:REFER 33-01

main33336-0K110iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

TYPE B:REFER 33-01

main33336-0K130iGUN143,TGN140..(MAP,PHLP)..5F;GUN14#..5F..(GCC,GEN,IND)..DCR201602-202102

TYPE A:REFER 33-01

33348WASHER, 1ST GEAR THRUST

main33348-0K010iTGN140..5F..VN201511-202009

TYPE B:REFER 33-01

main33348-0K020iTGN140..5F..VN201511-202009

TYPE C:REFER 33-01

main33348-0K030iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE A:REFER 33-01

main33348-0K040iGUN14#,TGN140..5F..(IDN,PHL,VN)202408

TYPE C:REFER 33-01

33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)

main90250-05026iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

TYPE A:REFER 33-01

main90250-T0021iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE B:REFER 33-01

33349WASHER, 5TH GEAR THRUST

main33346-0K020iTGN141..5F..LA202009-202304

TYPE C:REFER 33-01

main33346-0K030iGUN142,TGN141..5F..IND..(DCRL,HTWC)201602-202010

TYPE A:REFER 33-01

main33346-71010iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE B:SEE 33-01,(J)

33349CPIN (FOR 5TH GEAR THRUST WASHER)

main90250-05026iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

TYPE A:REFER 33-01

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-0K021iGUN14#,TGN14#..5F201511-201606

TYPE A:REFER 33-01

main33361-0K031iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE B:REFER 33-01

main33361-0K050iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE C:REFER 33-01

main33361-0K070iGUN142..6F201709-202010

main33361-0K090iGUN14#,TGN140..5F..(20G,20Q,24V,28,28E,N)..(IDN,PHL);GUN142,TGN14#..(IDNP,INDP,VNP)..5F..(20E,24G,24Z,27,G)202009-202305

TYPE A:REFER 33-01

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-0K030iGUN142,TGN14#..5F201511-201601

TYPE B:REFER 33-01

main33362-0K031iTGN140..5F..VN201601-202009

TYPE B:REFER 33-01

main33362-0K040iGUN142..6F201709-202010

main33362-0K050iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202010

TYPE A:REFER 33-01

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-0K020iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE B:REFER 33-01

main33364-0K030iTGN140..5F..VN201511-202009

TYPE C:REFER 33-01

main33364-0K040×2iGUN142..24202011-202301

main33364-0K060iGUN14#,TGN140..5F..(20G,20Q,24V,28,28E,N)..(IDN,PHL);GUN142,TGN14#..(IDNP,INDP,VNP)..5F..(20E,24G,24Z,27,G)202009-202305

TYPE A:REFER 33-01

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-0K010×3iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

TYPE B:REFER 33-01

main33365-0K020×3iTGN141..5F..27G202009-202301

TYPE A:REFER 33-01

main33365-0K030×9iGUN142..24202011-202301

main33365-35060×3iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE C:REFER 33-01

33365ASPRING, COMPRESSION

main90501-08212×3iGUN14#,TGN14#..5F201511-201701

TYPE C:REFER 33-01

main90501-T0023×3iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

TYPE B:REFER 33-01

main90501-T0051×3iTGN140..5F..(20E,20G,20Q)..(IDN,VN);GUN14#,TGN141..(IDNP,PHLP)..5F..(24G,24V,27,28,28E,N)202009-202305

TYPE A:REFER 33-01

main90501-T0063×3iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201701-202008

TYPE C:SEE 33-01,(L)

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33365-30060×3iTGN141..5F..27G202009-202301

TYPE A:REFER 33-01,TYPE C:REFER 33-01

33366DSPRING, COMPRESSION

main90501-08212×3iGUN14#,TGN14#..5F201511-201701

TYPE C:REFER 33-01

main90501-T0023×3iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE B:REFER 33-01

main90501-T0051×3iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

TYPE A:REFER 33-01

main90501-T0063×3iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

TYPE C:SEE 33-01,(L)

33368RING, SYNCHRONIZER, NO.2

main33368-0K020iGUN142,TGN14#..5F201511-201601

TYPE A:REFER 33-01

main33368-0K040iGUN142,TGN14#..5F201511-201601

TYPE C:REFER 33-01

main33368-0K090iTGN140..5F..VN201609-202009

TYPE B:REFER 33-01

main33368-0K220iGUN142,TGN141..5F..IND..(DCRL,HTWC)201601-202010

TYPE A:REFER 33-01

main33368-0K230iTGN140..5F..VN201601-202009

TYPE C:REFER 33-01

main33368-0K270iGUN14#..5F..(IDN,PHL)202403

TYPE C:REFER 33-01

main33368-35090iGUN14#,TGN14#..5F201511-201609

TYPE B:REFER 33-01

33384ARING, SYNCHRONIZER, OUTER NO.3

main33384-0K010iGUN14#,TGN14#..5F201511-201606

TYPE A:REFER 33-01

main33384-0K011iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201607-202102

TYPE A:REFER 33-01

main33384-0K020iGUN14#,TGN14#..5F201511-201702

TYPE B:REFER 33-01

main33384-0K021iTGN140..5F..VN201702-202009

TYPE B:REFER 33-01

main33384-0K030iGUN14#,TGN14#..5F201511-201609

TYPE C:REFER 33-01

main33384-0K031iTGN141..5F..IND201610-202010

TYPE C:REFER 33-01

33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3

main33392-0K010iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE A:REFER 33-01

main33392-35010iGUN142..6F201709-202010

main33392-60040iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

TYPE B:REFER 33-01

33394KEY, SYNCHROMESH SHIFTING, NO.3

main33394-20020×2iGUN142..24202011-202301

33394BKEY, SYNCHROMESH SHIFTING, NO.3

main33394-0K010×2iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

TYPE A:REFER 33-01

main33394-0K020×2iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

TYPE C:REFER 33-01

main33394-0K030×2iTGN141..5F..IND201511-202010

TYPE B:REFER 33-01

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-0K040iTGN140..5F..VN201511-202009

TYPE B:REFER 33-01

main33395-0K050iTGN140..5F..VN201511-202009

TYPE C:REFER 33-01

main33395-0K060iGUN14#,TGN140..5F..(20G,20Q,24V,28,28E,N)..(IDN,PHL);GUN142,TGN14#..(IDNP,INDP,VNP)..5F..(20E,24G,24Z,27,G)202009-202305

TYPE A:REFER 33-01

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-0K050iTGN140..5F..(20E,20G,20Q)..(IDN,VN);GUN14#,TGN141..(IDNP,PHLP)..5F..(24G,24V,27,28,28E,N)202009-202305

TYPE A:REFER 33-01

main33402-0K060iTGN140..5F..VN201511-202009

TYPE C:REFER 33-01

main33402-0K070iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

TYPE B:REFER 33-01

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90365-T0004iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE B:REFER 33-01

main90365-T0006iTGN141..5F..27..GCC;GUN143,TGN140..(MAP,PHLP,VNP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA)..(DCR,HTWC)201511-202009

TYPE A:REFER 33-01

main90365-T0011iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

TYPE C:REFER 33-01

main90369-T0011iGUN142..24202011-202301

33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1

main90520-56002iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202010

T=1.07,OD=62,TYPE A:REFER 33-01

main90520-T0087iTGN141..5F..IND201511-202010

T=1.07,OD=62,TYPE B:REFER 33-01

33411PBEARING, COUNTERSHAFT CENTER

main90365-T0003iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

TYPE B:REFER 33-01

main90365-T0007iTGN141..5F..27..GCC;GUN143,TGN140..(MAP,PHLP,VNP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27G,27SR,27V,28,28G,G,N)..(GCC,GEN,IND,LA)..(DCR,HTWC)201511-202009

TYPE A:REFER 33-01

main90365-T0009iGUN142..24202011-202301

main90365-T0012iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

TYPE C:REFER 33-01

33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2

main90520-23057iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=2.10,MARK A,TYPE A:REFER 33-01

main90520-23058iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202010

T=2.15,MARK B,TYPE A:REFER 33-01

main90520-23059iTGN141..5F..27G202009-202301

T=2.20,MARK C,TYPE A:REFER 33-01

main90520-23060iTGN140..5F..(20E,20G,20Q)..(IDN,VN);GUN14#,TGN141..(IDNP,PHLP)..5F..(24G,24V,27,28,28E,N)202009-202305

T=2.25,MARK D,TYPE A:REFER 33-01

main90520-23061iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

T=2.30,MARK E,TYPE A:REFER 33-01

main90520-23062iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202010

T=2.35,MARK F,TYPE A:REFER 33-01

main90520-T0097iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

T=2.10,MARK A,TYPE B:REFER 33-01

main90520-T0098iTGN140..5F..VN201511-202009

T=2.15,MARK B,TYPE B:REFER 33-01

main90520-T0099iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

T=2.20,MARK C,TYPE B:REFER 33-01

main90520-T0100iTGN140..5F..VN201511-202009

T=2.25,MARK D,TYPE B:REFER 33-01

main90520-T0101iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T=2.30,MARK E,TYPE B:REFER 33-01

main90520-T0102iTGN140..5F..VN201511-202009

T=2.35,MARK F,TYPE B:REFER 33-01

main90520-T0246iTGN141..5F..LA202009-202304

T=2.10,MARK A,TYPE C:REFER 33-01

main90520-T0247iTGN141..5F..27G202009-202301

T=2.15,MARK B,TYPE C:REFER 33-01

main90520-T0248iTGN140..5F..VN201511-202009

T=2.20,MARK C,TYPE C:REFER 33-01

main90520-T0249iTGN141..5F..IND201511-202010

T=2.25,MARK D,TYPE C:REFER 33-01

main90520-T0250iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=2.30,MARK E,TYPE C:REFER 33-01

main90520-T0251iTGN141..5F..LA202009-202304

T=2.35,MARK F,TYPE C:REFER 33-01

33421GEAR, COUNTER

main33421-0K013iGUN142,TGN14#..5F201511-201601

TYPE A:REFER 33-01

main33421-0K082iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

TYPE C:REFER 33-01

main33421-0K100iGUN142..24202011-202301

main33421-0K140iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202101

TYPE B:REFER 33-01

main33421-0K160iTGN140..5F..VN201601-202009

TYPE A:REFER 33-01

33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)

main90520-22016iTGN141..5F..27G202009-202301

T=2.85,MARK A,T/P A:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1

main90520-22017iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

T=2.90,MARK B,T/P C:SEE 33-01,NO.1

main90520-22018iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202010

T=2.95,MARK C,T/P C:SEE 33-01,NO.1

main90520-22019iTGN140..5F..VN201511-202009

T=3.00,MARK D,T/P A:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1

main90520-22020iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

T=3.05,MARK E,T/P A:SEE 33-01,NO.1

main90520-22021iTGN140..N..PHL;GUN142..5F..(24G,24Z,G)..IND202009

T=3.10,MARK F,T/P A:SEE 33-01,NO.1

main90520-22022iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=3.15,MARK G,T/P A:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1

main90520-33021iTGN140..5F..(20E,20G,20Q)..(IDN,VN);GUN14#,TGN141..(IDNP,PHLP)..5F..(24G,24V,27,28,28E,N)202009-202305

T=1.00,T/P A:SEE 33-01,NO.2

main90520-T0127iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T=2.85,MARK A,T/P B:SEE 33-01,NO.1

main90520-T0128iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T=2.90,MARK B,T/P B:SEE 33-01,NO.1

main90520-T0129iTGN141..5F..IND201511-202010

T=2.95,MARK C,T/P B:SEE 33-01,NO.1

main90520-T0130iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202008

T=3.00,MARK D,T/P B:SEE 33-01,NO.1

main90520-T0131iTGN141..5F..IND201511-202010

T=3.05,MARK E,T/P B:SEE 33-01,NO.1

main90520-T0132iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T=3.10,MARK F,T/P B:SEE 33-01,NO.1

main90520-T0133iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

T=3.15,MARK G,T/P B:SEE 33-01,NO.1

33428GEAR, COUNTERSHAFT 5TH

main33428-0K011iGUN142,TGN14#..5F201511-201601

TYPE A:REFER 33-01

main33428-0K012iGUN14#..5F201601-201610

TYPE A:REFER 33-01

main33428-0K061iGUN14#,TGN14#..5F201511-201709

TYPE C:REFER 33-01

main33428-0K062iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201709-202102

TYPE C:REFER 33-01

main33428-0K100iGUN14#..5F..(24G,24V,28,28E,N)..(IDN,PHL)202009-202107

TYPE B:REFER 33-01

main33428-0K120iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201611-202102

TYPE A:REFER 33-01

33428BBEARING (FOR COUNTER 5TH GEAR)

main90364-T0013iGUN142,TGN141..5F..IND..(DCRL,HTWC)201511-202010

TYPE A:REFER 33-01

main90364-T0023iTGN140..5F..VN201511-202009

TYPE B:REFER 33-01

main90364-T0028iTGN141..IDNP..5F..(27G,27SR);GUN143,TGN140..(MAP,PHLP)..5F;GUN14#,TGN141..5F..(24,24G,24V,24Z,27,28,28G,G,N)..(GCC,GEN,IND)..(DCR,HTWC)201511-202102

TYPE C:REFER 33-01

33451SHAFT, REVERSE IDLER GEAR

main33450-0K010iGUN142..24202011-202301

main33451-0K010iTGN141..5F..27G202009-202301

TYPE A:REFER 33-01

main33451-0K030iTGN140..5F..VN201511-202009

TYPE B:REFER 33-01

main33451-0K040iTGN140..20E..VN;GUN14#,TGN140..5F..(20G,20Q,24G,24V,28,28E,N)..(IDN,PHL)202009

TYPE C:REFER 33-01

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-0K020iTGN14#..5F201608-201901

N=10,MARK 10X31-33,TYPE A:REFER 33-01

main33481-0K030iGUN14#..5F201804-201901

N=11,MARK 11X31-33,TYPE A:REFER 33-01

main33481-35130iTGN14#..5F201511-201608

N=10,MARK 10X31-33,TYPE A:REFER 33-01

main33481-35190iGUN14#..5F201511-201910

N=11,MARK 11X31-33,TYPE C:REFER 33-01

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-28030×2iGUN14#,TGN14#..5F201511-201901

T=1.5,TYPE A:REFER 33-01

main90520-T0134×2iTGN141..5F..27..GCC;TGN14#..5F..(20,20E,20G,20Q,20V,27,27G,27V,N)..(IDN,IND,LA,MA,PHL,TH,VN)201511-201902

T=1.5,TYPE B:REFER 33-01

main90520-T0283×2iTGN14#..5F;GUN14#..5F..(GCC,GEN)201511-201911

T=1.5,TYPE C:REFER 33-01

33481CBALL, REVERSE SHIFT RESTRICT

main90360-06004iGUN14#,TGN14#..5F201511-201702

TYPE C:REFER 33-01

main90360-T0009iTGN14#..5F201511-201911

TYPE B:SEE 33-01,(L)

main90360-T0011iTGN14#..5F;GUN14#..5F..(GCC,GEN)201702-201911

TYPE C:SEE 33-01,(L)

55 parts on this diagram · 2 diagrams in section
