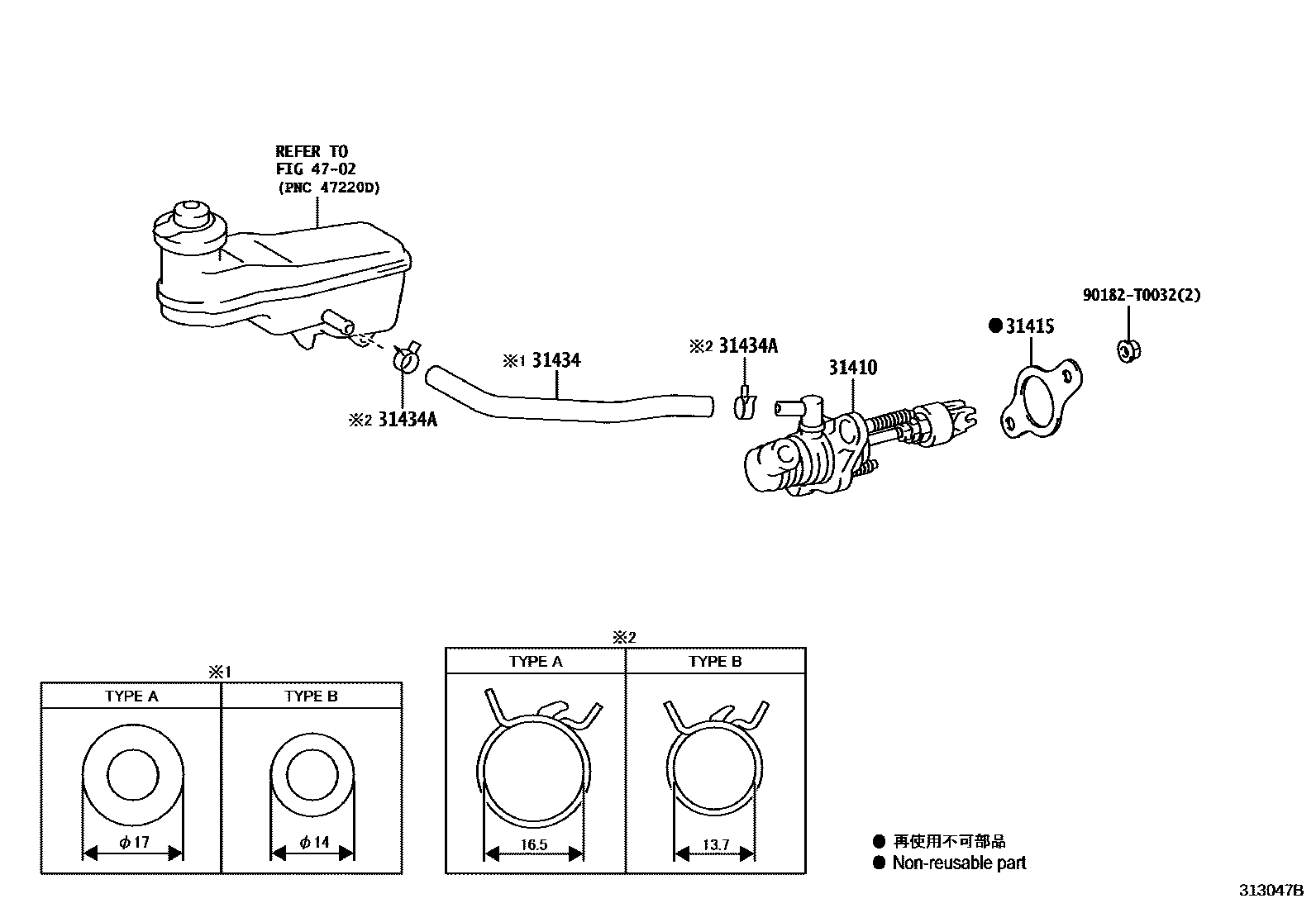

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0K013iTGN14#..5F201511-201911

sub31420-0K014

main31420-0K014iTGN140..20E..VN;TGN140..5F..(20G,20Q,N)201912-202304

main31420-0K060iGUN142..6F201709-201904

sub31420-0K061

main31420-0K061iGUN142..24201905-202301

main31420-0K070iGUN14#..5F201511-201904

sub31420-0K071

main31420-0K071iGUN142..5F..(24G,24Z,G);GUN14#..5F..(24V,28,28E,N)..(IDN,PHL)201905-202010

31415GASKET, CLUTCH MASTER CYLINDER

main31415-0K010iTGN140..20E..VN;GUN143,TGN140..5F..(20G,20Q,28,28E,N)201511-202304

31434TUBE, CLUTCH RESERVOIR

main31434-0K060iGUN142,TGN140..RHD..(IDNP,MAP)..5F201511-201910

TYPE A:REFER ILLUST.

main31434-0K061iGUN142,TGN140..RHD..IDNP..5F201910-202008

TYPE B:REFER ILLUST.

main31434-0K070iGUN14#,TGN14#..LHD..5F201511-201910

TYPE A:REFER ILLUST.

main31434-0K071iTGN140..5F..VN201910-202304

TYPE B:REFER ILLUST.

main31434-0K080iGUN142..6F201709-201905

TYPE A:REFER ILLUST.

main31434-0K081iGUN142..6F201905-202301

TYPE B:REFER ILLUST.

main31434-0K100iGUN142,TGN141..5F..IND201604-201905

TYPE A:REFER ILLUST.

main31434-0K101iGUN142,TGN141..5F..IND201905-202301

TYPE B:REFER ILLUST.

main31434-0K111iTGN140..20E..VN202010

TYPE B:REFER ILLUST.

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-T0015iTGN140..5F..VN201905-202304

TYPE B:REFER ILLUST.

main90466-T0052iGUN14#,TGN14#..(IDNP,MAP,PHLP,VNP)..5F201511-201910

TYPE A:REFER ILLUST.

4702

90182T0032

main90182-T0032

6 parts on this diagram · 4 diagrams in section
