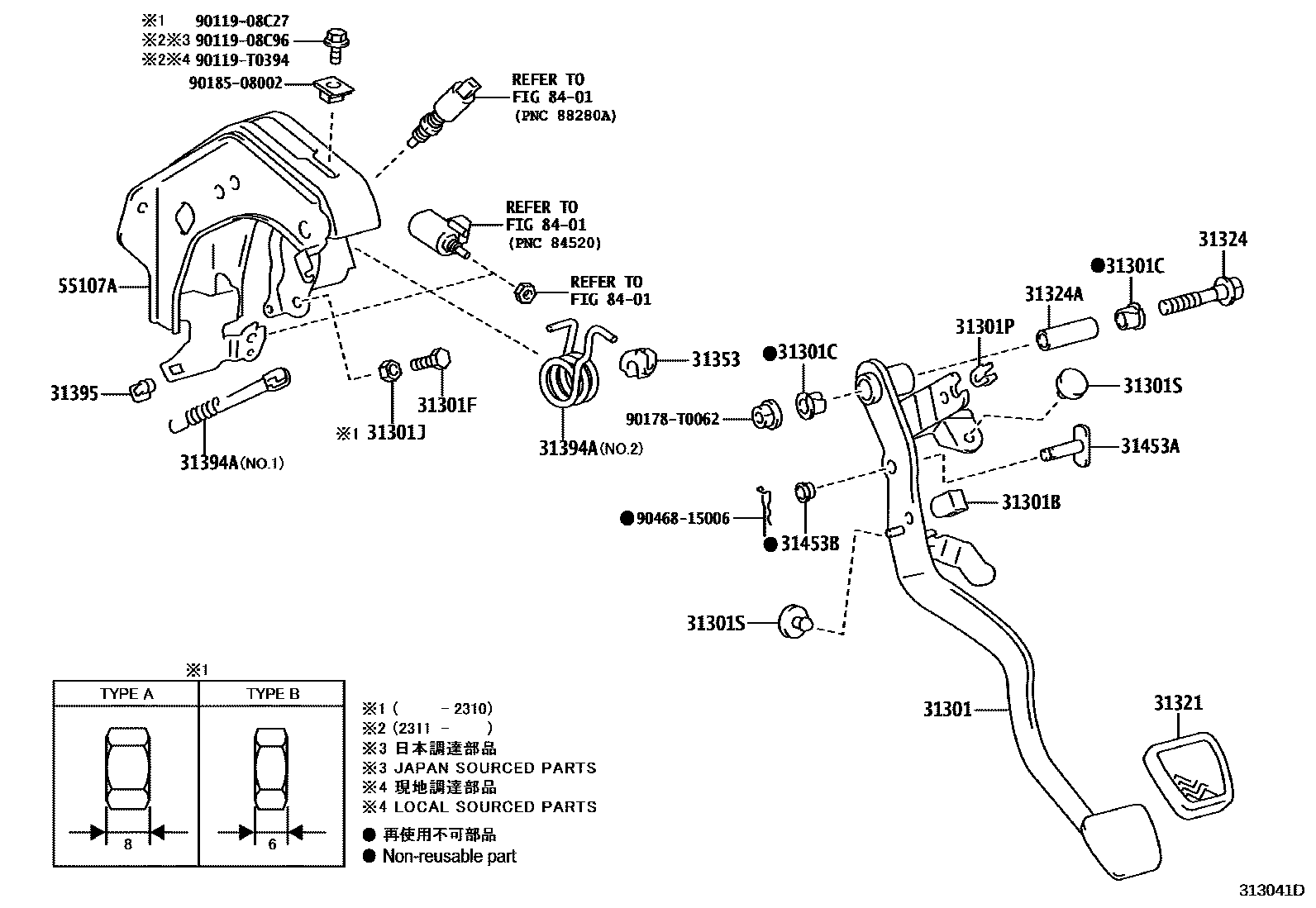

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1CLUTCH PEDAL 0002 1CLUTCH PEDAL 0003 1CLUTCH PEDAL 0004 1CLUTCH PEDAL 0005 1CLUTCH PIPING 0006 1CLUTCH PIPING 0007 1CLUTCH PIPING 0008 1CLUTCH PIPING 0009 1CLUTCH PIPING 0010 1CLUTCH PIPING 0011 1CLUTCH PIPING

31301PEDAL SUB-ASSY, CLUTCH

main31301-KK020iTGN141..5F..27G201511-202301

main31301-KK040iGUN142..MTM..IND201511-202301

main31301-KK080iGUN143..IDNP..5F..PHL201511-202008

main31301-KK100iTGN140..PHLP..5F;TGN141..5F..27..GCC;TGN141..IDNP..5F..(27G,27SR)201511-202304

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06063iGUN142,TGN14#..MTM..(IND,MA)201806-202010

(J)

main90541-T0004iGUN142,TGN140..RHD..IDNP..5F201806-202010

(L)

main90541-T0004iGUN142,TGN14#..RHD..MTM201511-202301

main90541-T0005iGUN143,TGN14#..IDNP..5F..(20E,27,28E,28G,N)..(LA,PHL)201511-202304

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iGUN142,TGN141..MTM..(24,27G)201511-202304

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-T0005iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202304

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-T0005iGUN142,TGN141..(24V,27V,N)..IND202004-202010

TYPE B:REFER ILLUST.

main90170-T0011iGUN142,TGN141..MTM..(24,27G)201511-202304

TYPE A:REFER ILLUST.

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iGUN14#..IDNP..5F..(IDN,PHL)201511-202301

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06036iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202304

31321PAD, CLUTCH PEDAL

main31321-02020iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202304

31324SHAFT, CLUTCH PEDAL

main90105-T0112iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202304

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202301

main90387-10003iGUN142..5F..24V..IDN;GUN142,TGN14#..MTM..(20G,20Q,24,24G,24Z,27G,G)202009-202304

(J)

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iGUN14#..IDNP..5F..(IDN,PHL)201511-202301

31394ASPRING, PEDAL W/HOOK

main31394-25010iGUN143..IDNP..5F..PHL201511-202301

NO.1

main31394-25010iGUN14#..5F..(GCC,GEN);GUN143..PHLP..5F..(28E,28G,N)201511

NO.1:REFER ILLUST.

main31394-KK010iGUN14#..5F..(GCC,GEN);GUN143..PHLP..5F..(28E,28G,N)201511-202008

NO.2:REFER ILLUST.

main31394-KK010iGUN142..MTM..IND201511-202301

NO.2

31395HOOK, PEDAL SPRING

main31395-33020iGUN142..(24V,N)..IND..DCRL201511-202301

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-T0002iGUN14#,TGN14#..IDNP..5F..(20E,20G,20Q,20V,24G,24Q,24V,27,28E,28G,N)..(IDN,LA,PHL,TH)201511-202304

L=31.9

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iGUN142,TGN141..MTM..(24,27G)201511-202304

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-KK020iTGN140..5F..VN201511-202304

main55107-KK030iGUN14#..IDNP..5F..(IDN,PHL)201511-202301

8401

9011908C27

main90119-08C27

9011908C96

main90119-08C96

90119T0394

main90119-T0394

90178T0062

main90178-T0062

9018508002

main90185-08002

9046815006

main90468-15006

23 parts on this diagram · 11 diagrams in section
