CLUTCH & RELEASE FORK

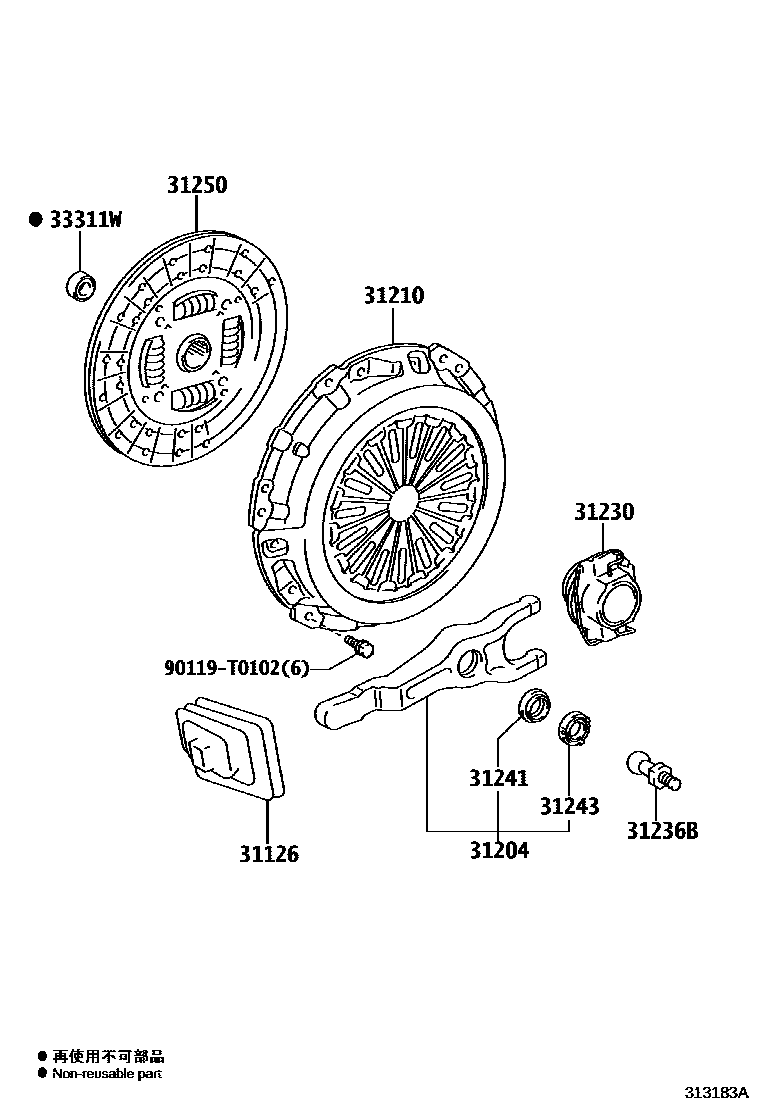

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-0K080i201709-202301
main31126-0K090i202009-202304
TYPE C:REFER 33-01
main31126-0K090i201511-202010
TYPE B:REFER 33-01,TYPE A:REFER 33-01,TYPE C:REFER 33-01
main31126-0K090i201511-202301
TYPE A:REFER 33-01,TYPE C:REFER 33-01
main31126-0K090i202009-202305
TYPE A:REFER 33-01
main31126-0K090i201511-202101
TYPE B:REFER 33-01
main31126-0K100i201511-202305
TYPE A:REFER 33-01
main31126-0K100i202009
TYPE C:REFER 33-01
main31126-0K100i201511-202008
TYPE B:REFER 33-01,TYPE A:REFER 33-01,TYPE C:REFER 33-01
main31126-0K100i201511-202107
TYPE B:REFER 33-01
main31126-0K100i201511-202102
TYPE A:REFER 33-01,TYPE C:REFER 33-01
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-0K110i201511-202301
main31204-0K120i201511-202208
TYPE A:REFER ILLUST.
main31204-0K190i202101-202305
TYPE B:REFER ILLUST.
31210COVER ASSY, CLUTCH
main31210-0K260i201511-202304
main31210-0K300i201511-202009
main31210-0K310i201511-202301
main31210-0K450i201604-202010
31230BEARING ASSY, CLUTCH RELEASE
main31230-0K040i202310
main31230-0K050i202310
main31230-71050i201511-201805
sub31230-71051
main31230-71051i201806-201809
sub31230-71052
main31230-71052i201810-202310
main31230-71052i202009-202107
TYPE B:REFER 33-01
main31230-71060i201511-201902
sub31230-71061
main31230-71061i201903-202208
TYPE A:REFER ILLUST.
main31230-71080i202208-202310
main31230-71080i202101-202305
TYPE B:REFER ILLUST.
31236BSUPPORT, RELEASE FORK
main31236-0K010i201709-202301
main31236-0K020i201511-202208
TYPE A:REFER ILLUST.
main31236-0K030i201511-202102
main31236-0K030i202009-202107
TYPE B:REFER 33-01
main31236-0K060i202101-202305
TYPE B:REFER ILLUST.
31241SEAL, CLUTCH RELEASE FORK DUST
main31241-71010i201511-202305
TYPE A:REFER 33-01
main31241-71010i201511-202008
TYPE B:REFER 33-01,TYPE A:REFER 33-01,TYPE C:REFER 33-01
main31241-71010i201709-202301
main31241-71010i201511-202107
TYPE B:REFER 33-01
main31241-71010i201511
TYPE A:REFER 33-01,TYPE C:REFER 33-01
main31241-71010i202009
TYPE C:REFER 33-01
31243COLLAR, CLUTCH RELEASE FORK
main31243-0K010i201511-202305
TYPE A:REFER 33-01
main31243-0K010i201511-202008
TYPE B:REFER 33-01,TYPE A:REFER 33-01,TYPE C:REFER 33-01
main31243-0K010i201709-202301
main31243-0K010i201511-202107
TYPE B:REFER 33-01
main31243-0K010i201511
TYPE A:REFER 33-01,TYPE C:REFER 33-01
main31243-0K010i202009
TYPE C:REFER 33-01
31250DISC ASSY, CLUTCH
main31250-0K260i201511-201709
sub31250-0K261
main31250-0K261i201710-202304
sub31250-0K262
main31250-0K280i201709-201712
sub31250-0K281
main31250-0K281i201801-202301
main31250-0K300i201511-201709
sub31250-0K301
main31250-0K301i201710-202408
sub31250-0K302
main31250-0K302i202409
main31250-0K310i201511-201707
sub31250-0K311
main31250-0K311i201708-202008
main31250-0K450i201604-201904
sub31250-0K451
main31250-0K451i201905-202004
sub31250-0K452
main31250-0K452i202005-202010
33311WBEARING (FOR INPUT SHAFT)
main90363-T0006i201511-202301
main90363-T0019i201511-202304
90119T0102
main90119-T0102

10 parts on this diagram · 3 diagrams in section
