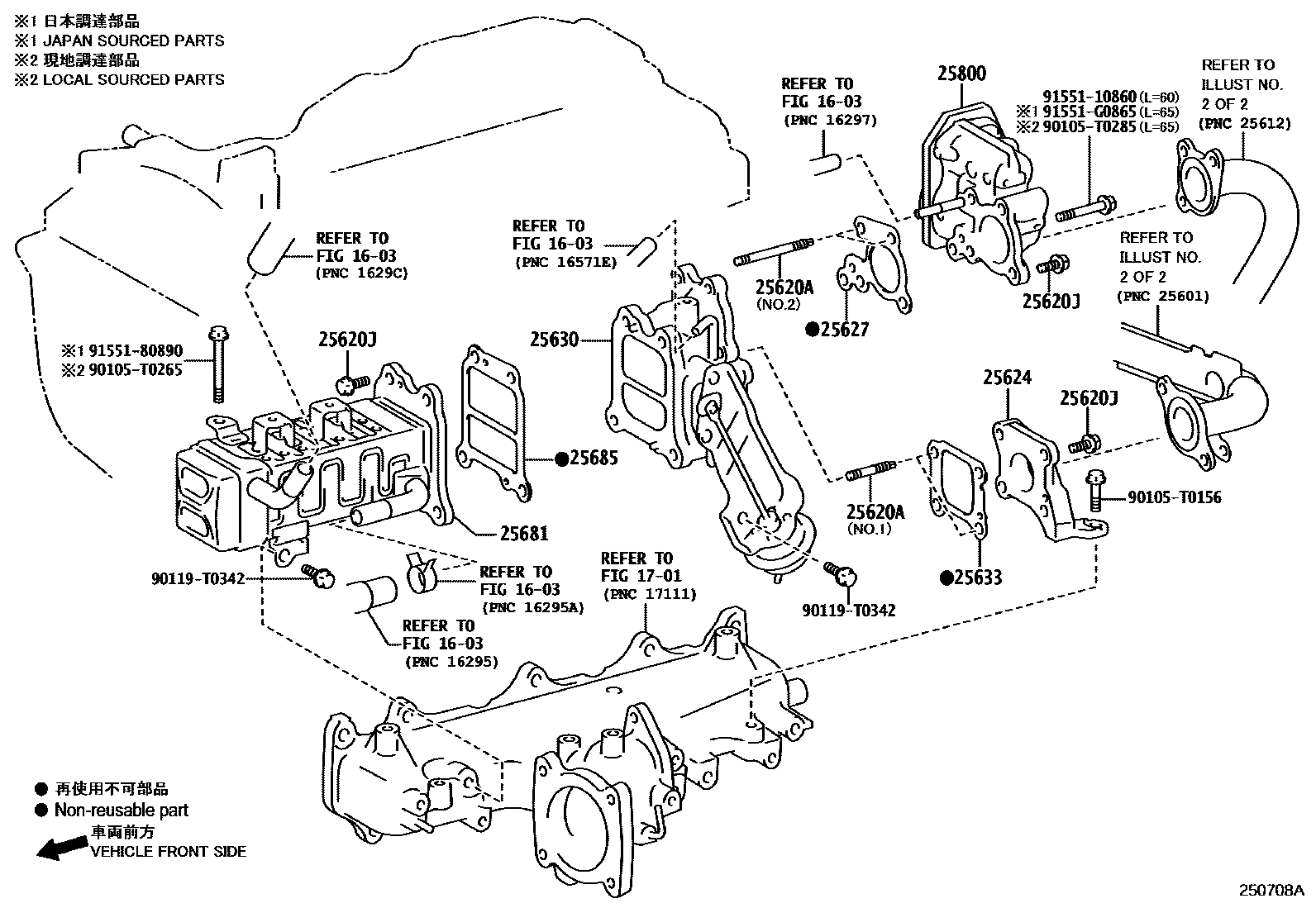

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1W(EGR PRE-COOLER) 0004 1EURO 2 0005 1EURO 2 0006 1EURO 0

1603

1701

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047×2i2GDFTV..GUN142..(24V,N)..IND..DCRL201511-202010

NO.1

main90126-08052×2i2GDFTV..GUN142..(24,24G)..(GCC,SA)201708-202008

NO.1

main90126-T0018×2supersedes 90126-T0018i1GDFTV..GUN143..IDNP..PHL201709-202008

NO.2

25620JBOLT(FOR EGR VALVE)

main90119-T0238×5supersedes 90119-T0238i2GDFTV..GUN142..GEN202009-202304

25624ADAPTER, EGR VALVE

main25607-0E020i2GDFTV..GUN142..GEN201905-202008

main25607-11010supersedes 25607-11010i2GDFTV..GUN142..IDN,MA202009

main25624-0E010i2GDFTV..GUN142..GCC,SA201511-201708

main25624-0E020i2GDFTV..GUN142..(6F,6FC)..IND202011-202301

25627GASKET, EGR VALVE

main25627-0E010supersedes 25627-0E010i1GDFTV..GUN143..IDNP..PHL201709-202008

main25627-0E020i2GDFTV..GUN142..(6F,6FC)..IND202011-202301

25630VALVE ASSY, EGR, NO.2

main25630-0E010i2GDFTV..GUN142..GCC,SA201511-201708

main25630-0E020i1GDFTV,2GDFTV..GUN14#..IND201604-202004

main25630-0E030i2GDFTV..GUN142..IDN202009-202205

EXHAUST EMISSION CONTROL-EURO4,WITH(ON BOARD DIAGNOSIS)

main25630-0E031i2GDFTV..GUN142..IDN202206

EXHAUST EMISSION CONTROL-EURO4,WITH(ON BOARD DIAGNOSIS)

main25630-0E040i2GDFTV..GUN142..IND202005-202010

main25630-0E041i2GDFTV..GUN142..5F..IND202204

25633GASKET, EGR VALVE

main25633-0E010i2GDFTV..GUN142..GCC,SA201511-201708

main25633-0E020i2GDFTV..GUN142..(6F,6FC)..IND202011-202301

25681COOLER, EGR, NO.1

main25681-0E010i1GDFTV..GUN143..GCC,TH202009-202304

main25681-0E020i2GDFTV..GUN142..IND202002-202010

THA SOURCED PARTS

main25681-0E030i2GDFTV..GUN142..IND202006-202010

IND SOURCED PARTS

25685GASKET, EGR COOLER, NO.1

main25685-0E010i2GDFTV..GUN142..GCC,SA201511-201708

main25685-0E020i2GDFTV..GUN142..5F..IND202011

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-0E010supersedes 25800-0E010i2GDFTV..GUN142..IDN;1GDFTV..GUN143..6FC..(GCC,TH)201511-202008

90105T0156

main90105-T0156

90105T0265

main90105-T0265

90105T0285

main90105-T0285

90119T0342

main90119-T0342

9155110860

main91551-10860

9155180890

main91551-80890

91551G0865

main91551-G0865

18 parts on this diagram · 6 diagrams in section
