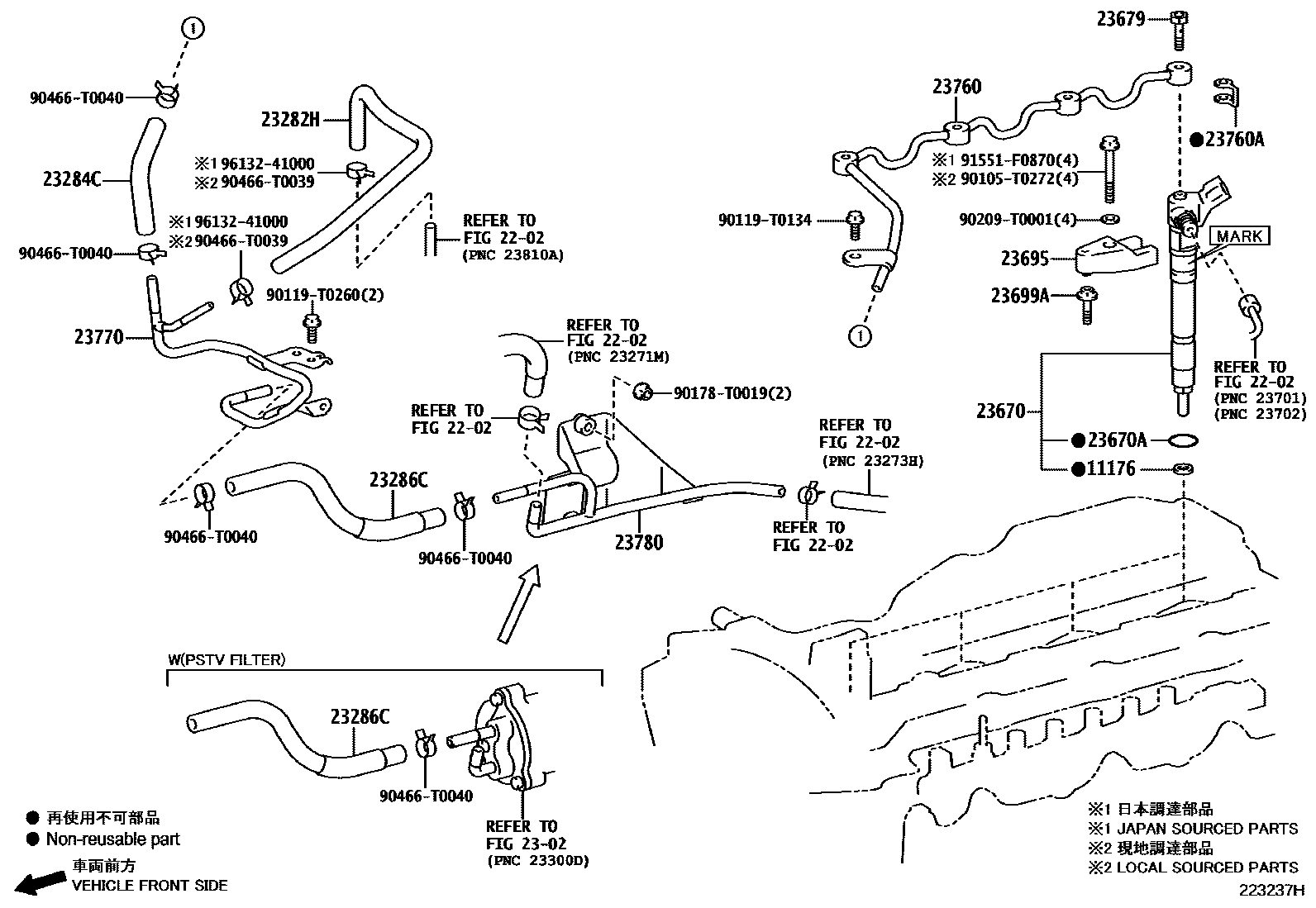

INJECTION NOZZLE

0001 1W/O(PRESSURIZED FUEL FILTER) 0002 1W(FUEL ADDITIONAL INJECTOR)

11176SEAT, INJECTION NOZZLE

main11176-0E010i1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)201511-202010

main11176-0E010i2GDFTV..GUN142..5F..24V..IDN;2GDFTV..GUN142..5F..(24G,24Z,G);2GDFTV..GUN142..6FC..(IDN,MA,TH);1GDFTV..GUN143..(28,28E,28V,N)..PHL202009-202304

(L)

main11176-33010i1GDFTV,2GDFTV..GUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)¥300202009-202304

(J)

2202

2302

23282HHOSE, FUEL, NO.4

main23282-0E010i1GDFTV,2GDFTV..GUN14#..IND¥970201511-201807

main23282-0E011i1GDFTV,2GDFTV..GUN14#..IDNP,PHLP¥970201808-201901

MARK=WHITE

sub23282-0E012¥800

main23282-0E012i1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..PHLP..(28E,28G,28V,N)¥800201901-202008

MARK=PINK

main23282-0E012i2GDFTV..GUN142..IDN,MA,TH;1GDFTV..GUN143..(28,28E,28V,N)..PHL¥800202009-202304

main23282-0E020i1GDFTV,2GDFTV..GUN14#..IND201709-201807

sub23282-0E021

main23282-0E021i1GDFTV,2GDFTV..GUN14#..IND201808-202001

sub23282-0E022

main23282-0E022i2GDFTV..GUN142..(6F,6FC)..IND202011-202301

main23282-0E022i2GDFTV..GUN142..IND202002-202010

MARK=PINK

23284CHOSE, FUEL, NO.5

main23284-0E010i1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N)201511-202304

main23284-0E020i1GDFTV,2GDFTV..GUN14#..IND201604-202301

23286CHOSE, FUEL, NO.6

main23286-0E010i1GDFTV..GUN143..IDNP..PHL201511-202006

sub23286-0E011

sub23770-0E011¥2,460

main23286-0E011i1GDFTV,2GDFTV..GUN14#..IDNP202006-202304

main23286-0E020i2GDFTV..GUN142..(6F,6FC)..IND201604-202301

23670INJECTOR ASSY

main23670-09420i1GDFTV..GUN143..IDNP..PHL201604-202304

main23670-09430i2GDFTV..GUN142..IDNP¥55,400201511-202008

main23670-09440i1GDFTV..GUN143..IND201604-202001

main23670-09450i2GDFTV..GUN142..IND201604-202001

main23670-09460i2GDFTV..GUN142..IND¥50,400202002-202106

THA SOURCED PARTS

main23670-09460i2GDFTV..GUN142..IDNP,MAP¥50,400202009-202212

main23670-09480i2GDFTV..GUN142..IND202002-202106

IND SOURCED PARTS

sub23670-09550

main23670-09500i2GDFTV..GUN142..IND¥55,400202107-202205

THA SOURCED PARTS

sub23670-09560¥50,400

main23670-09560i2GDFTV..GUN142..5F..IND¥50,400202205-202301

MARK 23670-08040

main23670-09570i2GDFTV..GUN142..(6F,6FC)..IND202205-202301

MARK 23670-08080

main23670-09590i2GDFTV..GUN142..GEN202212-202304

23670ARING, O(FOR INJECTOR ASSY)

main96721-19017i2GDFTV..GUN142..5F..24V..IDN;2GDFTV..GUN142..5F..(24G,24Z,G);2GDFTV..GUN142..6FC..(IDN,MA,TH);1GDFTV..GUN143..(28,28E,28V,N)..PHL¥160201511-202304

23679SCREW, INJECTOR FOLLOW

main90401-T0007i2GDFTV..GUN142..(6F,6FC)..(24,24G,24Z)..IND201511-202304

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0E010i1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N);2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL201511-202304

(L)

main23695-0E010i1GDFTV,2GDFTV..GUN14#..IND201604-202001

main23695-11010i2GDFTV..GUN142..5F..24V..IDN;2GDFTV..GUN142..5F..(24G,24Z,G);2GDFTV..GUN142..6FC..(IDN,MA,TH);1GDFTV..GUN143..(28,28E,28V,N)..PHL¥990201906-202304

(J)

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-0E010i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)201511-202304

main23699-0E020i1GDFTV,2GDFTV..GUN14#..IND201604-202301

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0E010i1GDFTV..GUN143..IDNP..PHL¥4,110201511-201910

sub23760-0E011¥3,300

main23760-0E011i1GDFTV,2GDFTV..GUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)¥3,300201911-202304

main23760-0E020i1GDFTV,2GDFTV..GUN14#..IND201604-202301

23760AGASKET

main90430-T0017i1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)201511-202304

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-0E010i1GDFTV..GUN143..IDNP..PHL¥3,240201511-202006

sub23770-0E011¥2,460

sub23286-0E011

main23770-0E011i1GDFTV,2GDFTV..GUN14#..IDNP¥2,460202006-202304

main23770-0E020i1GDFTV,2GDFTV..GUN14#..IND201604-202001

sub23770-0E021

main23770-0E021i2GDFTV..GUN142..(6F,6FC)..IND202002-202301

23780PIPE, NOZZLE LEAKAGE, NO.3

main23780-0E010i1GDFTV..GUN143..IDNP..PHL201511-202304

main23780-0E020i1GDFTV,2GDFTV..GUN14#..IND201604-202001

90105T0272

main90105-T0272

90119T0134

main90119-T0134¥90

90119T0260

main90119-T0260

90178T0019

main90178-T0019

90209T0001

main90209-T0001

90466T0039

main90466-T0039¥80

90466T0040

main90466-T0040¥100

91551F0870

main91551-F0870¥100

9613241000

main96132-41000¥80

24 parts on this diagram · 2 diagrams in section
