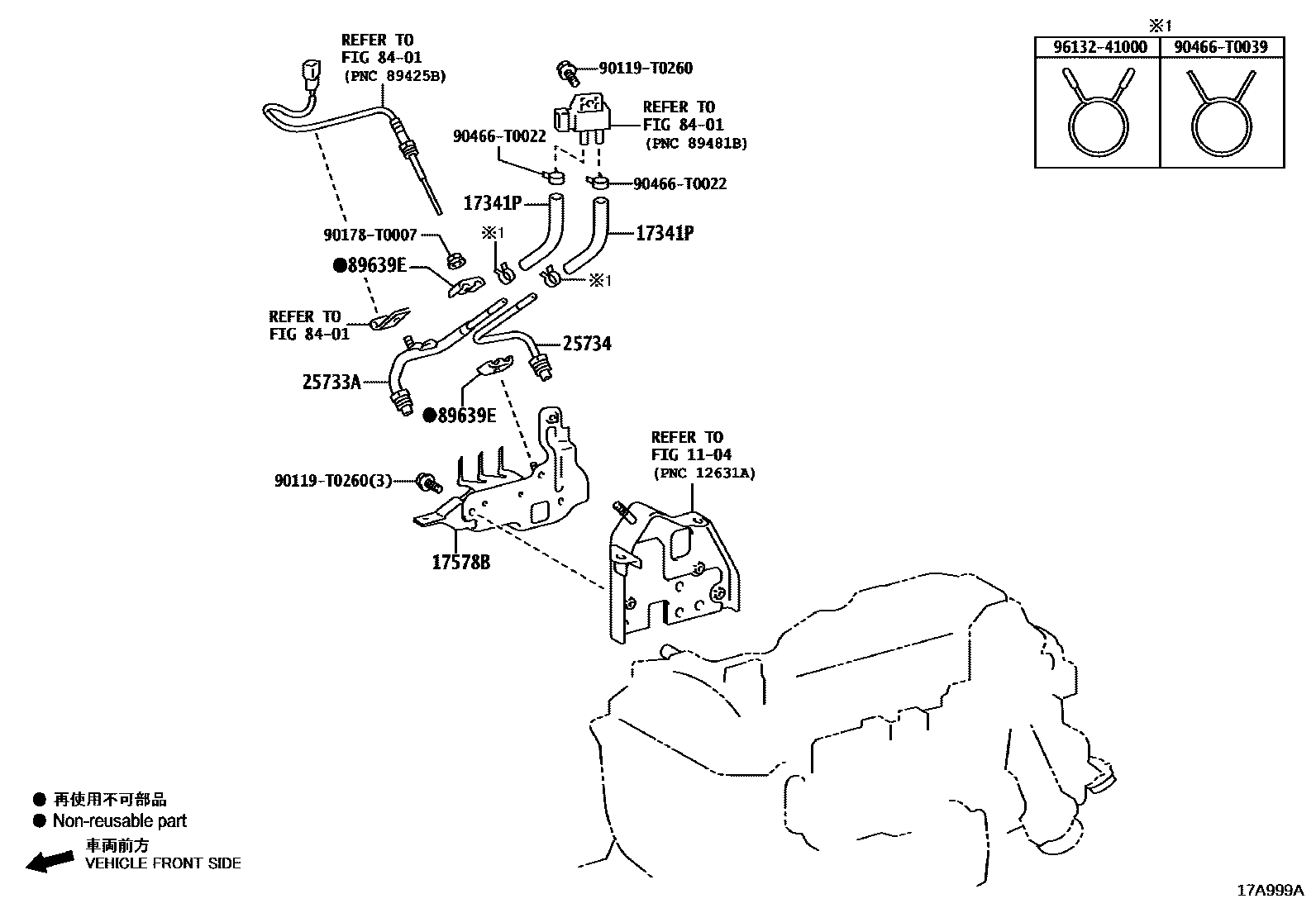

VACUUM PIPING

0001 1 0002 1 0003 1EURO 0&2 0004 1 0006 1

1104

17341PHOSE, AIR

main17341-0E010×2i1GDFTV..GUN143..IND;2GDFTV..GUN142..IND,TH201511-201709

main17341-0E030×2i2GDFTV..GUN142..5F..IND202011

IND SOURCED PARTS

17578BCLAMP, PIPE

main17578-0E020i1GDFTV,2GDFTV..GUN14#..IND201511-201709

25733APIPE, VACUUM, NO.1

main25733-0E010i2GDFTV..GUN142..(6F,6FC)..IND202011-202301

25734PIPE, VACUUM, NO.2

main25734-0E010i2GDFTV..GUN142..5F..IND202011

8401

89639ECLAMP

main89639-0K010×2iGUN142..IND202002-202010

90119T0260

main90119-T0260

90178T0007

main90178-T0007

90466T0022

main90466-T0022

90466T0039

main90466-T0039

9613241000

main96132-41000

12 parts on this diagram · 5 diagrams in section
