MANIFOLD AIR INJECTION SYSTEM

17117BPIPE, INTAKE, NO.4

main17117-0C020supersedes 17117-0C020i1TRFE,2TRFE..TGN14#..IDNP..(20E,20G,27,27SRV,N)..(LA,PHL,TH)201511-202008

ECUADOR SPEC

17314CBRACKET, AIR PUMP

main17314-0C010i2TRFE..TGN141..LA201511-201707

SAUDI ARABIA SPEC EURO4

main17314-0C011supersedes 17314-0C011i1TRFE,2TRFE..TGN14#..IDNP..(20E,20G,27,27SRV,N)..(LA,PHL,TH)201708-202008

ECUADOR SPEC

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-0C070supersedes 17341-0C070i1TRFE,2TRFE..TGN14#..IDNP..(20E,20G,27,27SRV,N)..(LA,PHL,TH)201511-202008

ECUADOR SPEC

main17341-0C130i1TRFE..TGN140..VN201604-202009

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-0C070supersedes 17342-0C070i1TRFE,2TRFE..TGN14#..IDNP..(20E,20G,27,27SRV,N)..(LA,PHL,TH)201511-202008

ECUADOR SPEC

main17342-0C130i2TRFE..TGN141..27G,27Z202010-202301

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-0C070supersedes 17343-0C070i1TRFE,2TRFE..TGN14#..IDNP..(20E,20G,27,27SRV,N)..(LA,PHL,TH)201511-202008

ECUADOR SPEC

main17343-0C090i2TRFE..TGN141..IND201604-202010

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-0C070supersedes 17344-0C070i1TRFE,2TRFE..TGN14#..IDNP..(20E,20G,27,27SRV,N)..(LA,PHL,TH)201511-202008

ECUADOR SPEC

main17344-0C090i1TRFE..TGN140..PHLP..N;1TRFE..TGN140..PHLP..6FC..20E201604-202102

17366CLAMP, AIR INJECTION HOSE, NO.1

main17366-0C010i1TRFE..TGN140..VN201604-202009

main17366-0C020supersedes 17366-0C020i1TRFE,2TRFE..TGN14#..IDNP..(20E,20G,27,27SRV,N)..(LA,PHL,TH)201511-202008

ECUADOR SPEC

17610CPUMP ASSY, AIR

main17610-0C040supersedes 17610-0C040i1TRFE,2TRFE..TGN14#..IDNP..(20E,20G,27,27SRV,N)..(LA,PHL,TH)201511-202008

ECUADOR SPEC

17611APIPE, AIR PUMP INLET

main17611-0C060supersedes 17611-0C060i1TRFE,2TRFE..TGN14#..IDNP..(20E,20G,27,27SRV,N)..(LA,PHL,TH)201511-202008

ECUADOR SPEC

17618AINSULATOR, AIR PUMP

main17618-0C010×3supersedes 17618-0C010i1TRFE,2TRFE..TGN14#..IDNP..(20E,20G,27,27SRV,N)..(LA,PHL,TH)201511-202008

ECUADOR SPEC

17621AINLET, AIR PUMP

main17621-0C070supersedes 17621-0C070i1TRFE,2TRFE..TGN14#..IDNP..(20E,20G,27,27SRV,N)..(LA,PHL,TH)201511-202008

ECUADOR SPEC

main17621-0C080i1TRFE..TGN140..VN201604-202009

25710VALVE ASSY, AIR SWITCHING

main25710-75015supersedes 25710-75015i1TRFE,2TRFE..TGN14#..IDNP..(20E,20G,27,27SRV,N)..(LA,PHL,TH)201511-202008

ECUADOR SPEC

25717AGASKET, AIR SWITCHING VALVE

main25717-0C010×2i1TRFE..TGN140..VN202007-202009

(L)

main25717-75010×2supersedes 25717-75010i2TRFE..TGN141..(27,27SRV)..LA201511-202007

ECUADOR SPEC

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9012608031

main90126-08031

9012608052

main90126-08052

90126T0016

main90126-T0016

90126T0034

main90126-T0034

9017908228

main90179-08228

90182T0030

main90182-T0030

9046626002

main90466-26002

90466T0049

main90466-T0049

90929T1002

main90929-T1002

9167380616

main91673-80616

9613642701

main96136-42701

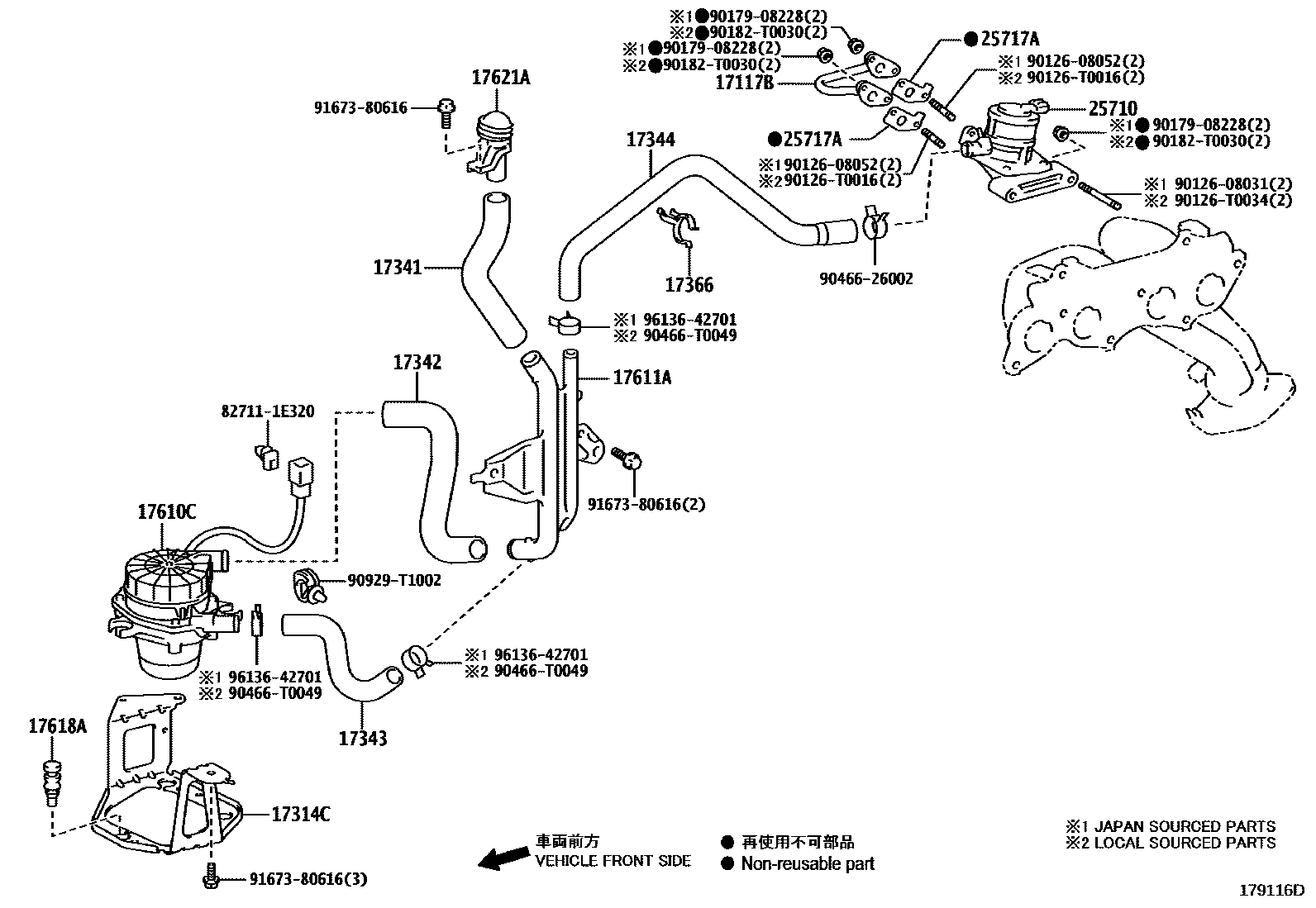

25 parts on this diagram · 1 diagram in section
