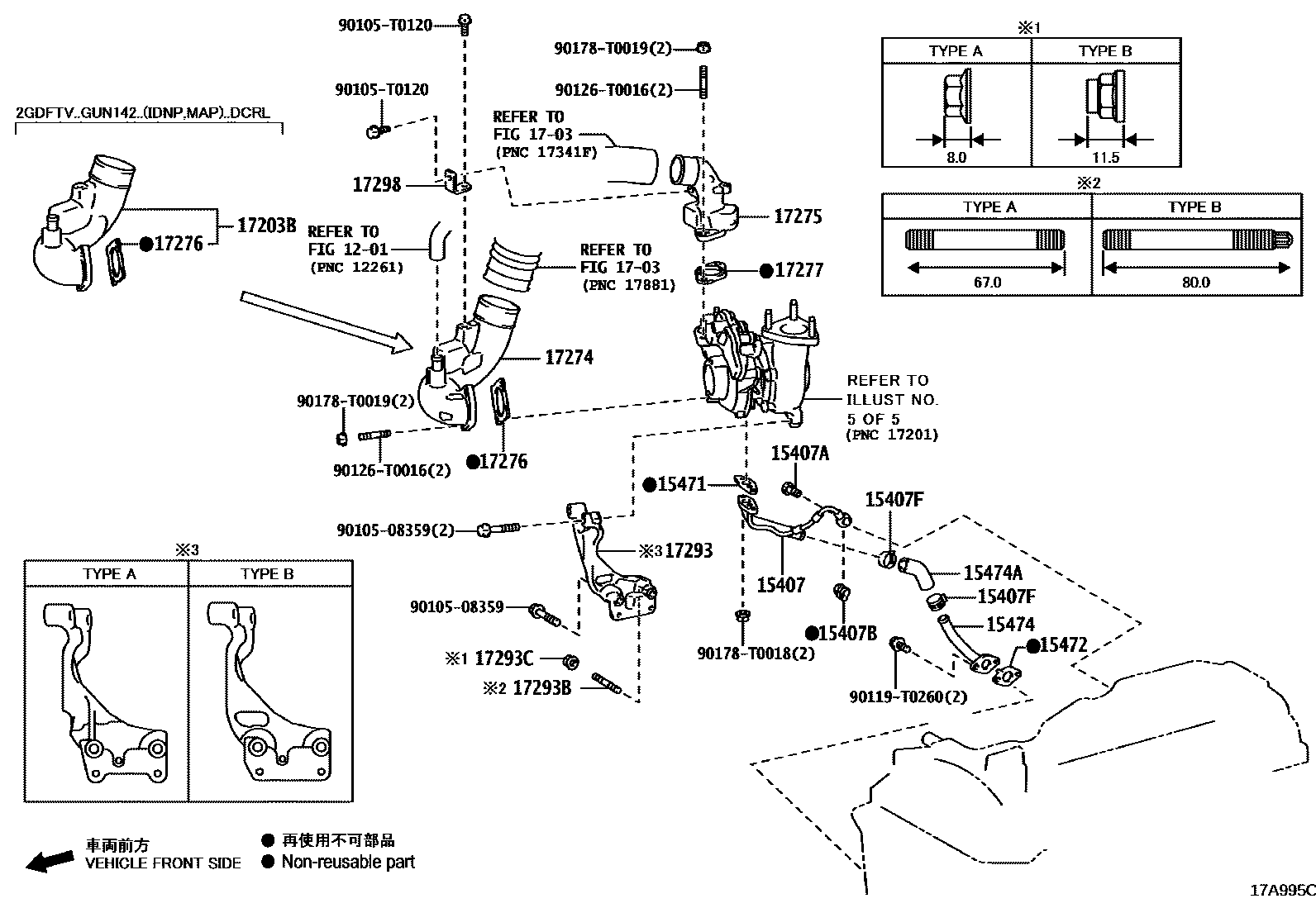

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-0E020i1GDFTV..GUN143..6FC..GCC;1GDFTV,2GDFTV..GUN14#..IDNP..(24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL,TH)201808-202010

main15407-0E020i2GDFTV..GUN142..5F..24V..IDN;2GDFTV..GUN142..5F..(24G,24Z,G);2GDFTV..GUN142..6FC..(IDN,MA,TH);1GDFTV..GUN143..(28,28E,28V,N)..PHL201511-202304

(L)

main15407-11030i1GDFTV..GUN143..IND;2GDFTV..GUN142..GCC,IND,SA,TH201511-201809

(J)

sub15407-0E020

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-T0004i2GDFTV..GUN142..(24V,N)..IND..DCRL201511-202304

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90430-T0006i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)201511-202304

15407FCLAMP OR CLIP, OIL HOSE

main96137-42501i1GDFTV..GUN143..IDNP..PHL201511-202304

15471GASKET, TURBO OIL INLET

main15471-0E010i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)201511-202304

main15471-0E020i1GDFTV,2GDFTV..GUN14#..IND201709-202301

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-0E010i1GDFTV,2GDFTV..GUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)201511-202304

main15472-0E020i2GDFTV..GUN142..(6F,6FC)..IND201709-202301

15474PIPE, TURBO OIL OUTLET

main15474-0E010i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)201511-202304

main15474-0E020i2GDFTV..GUN142..5F..IND201709-202301

15474AHOSE, TURBO OIL OUTLET

main15491-0E010i1GDFTV,2GDFTV..GUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)201511-202304

main15491-0E020i2GDFTV..GUN142..5F..IND201604-202301

17203BELBOW SUB-ASSY, COMPRESSOR INLET

main17203-0E030i2GDFTV..GUN142..GEN202009-202304

17274ELBOW, COMPRESSOR INLET

main17203-0E020i2GDFTV..GUN142..5F..IND202002-202301

(L)

main17203-11010i2GDFTV..GUN142..5F..IND202002-202301

(J)

main17274-0E010i1GDFTV..GUN143..(28,28E,28V,N)..PHL201511-202304

main17274-0E030i1GDFTV,2GDFTV..GUN14#..IND201604-202001

17275ELBOW, COMPRESSOR OUTLET

main17275-0E010i1GDFTV..GUN143..IDNP..PHL201511-202008

main17275-0E020i1GDFTV,2GDFTV..GUN14#..IND201604-202001

main17275-0E040i2GDFTV..GUN142..(6F,6FC)..IND202002-202301

THA SOURCED PARTS

main17275-0E040i1GDFTV,2GDFTV..GUN14#..IDNP201904-202304

main17275-0E060i2GDFTV..GUN142..(6F,6FC)..IND202002-202301

IND SOURCED PARTS

17276GASKET, COMPRESSOR INLET

main17276-0E010i2GDFTV..GUN142..IDN,MA,TH202009-202304

main17276-0L010i1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)201511-202304

main17276-26010i2GDFTV..GUN142..5F..IND202002-202301

17277GASKET, COMPRESSOR OUTLET

main17277-0E010i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)201511-202304

main17277-0E020i2GDFTV..GUN142..5F..IND201709-202301

17293STAY, TURBOCHARGER

main17293-0E010i1GDFTV..GUN143..PHLP;1GDFTV,2GDFTV..GUN14#..GCC,GEN,IDN,SA,TH201511-201904

TYPE B,*652

main17293-0E020i1GDFTV,2GDFTV..GUN14#..IND201604-202001

TYPE B,*650

sub17293-0E050

sub92122-80855

sub94151-80800

main17293-0E040i1GDFTV,2GDFTV..GUN14#..IDNP201904-202304

TYPE A,*652

main17293-0E050i2GDFTV..GUN142..IND202002-202301

TYPE A,*650

17293BBOLT(FOR TURBOCHARGER STAY)

main90178-T0019i2GDFTV..GUN142..(6F,6FC)..IND202110-202304

(L),T/P A:REF.ILLUST

main90179-08119i1GDFTV..GUN143..IDNP..PHL201511-202001

TYPE B:REFER ILLUST.

main94151-80800i1GDFTV,2GDFTV..GUN14#..GCC,GEN,TH202110-202304

(J),T/P A:REF.ILLUST

main94151-80800i1GDFTV,2GDFTV..GUN14#..IDNP201904-202110

TYPE A:REFER ILLUST.

17293CNUT(FOR TURBOCHARGER STAY)

main90126-08056i1GDFTV..GUN143..GEN,IND;1GDFTV..GUN143..5F..GCC;2GDFTV..GUN142..GCC,IND,SA,TH201511-202001

TYPE B:REFER ILLUST.

main92122-80855i1GDFTV..GUN143..PHLP..(28E,28G,28V,N);2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL201904-202304

TYPE A:REFER ILLUST.

17298STAY, COMPRESSOR ELBOW

main17298-0E010i1GDFTV..GUN143..IDNP..PHL201511-202304

main17298-0E020i1GDFTV,2GDFTV..GUN14#..IND201604-202301

9010508359

main90105-08359

90105T0120

main90105-T0120

90119T0260

main90119-T0260

90126T0016

main90126-T0016

90178T0018

main90178-T0018

90178T0019

main90178-T0019

23 parts on this diagram · 7 diagrams in section
