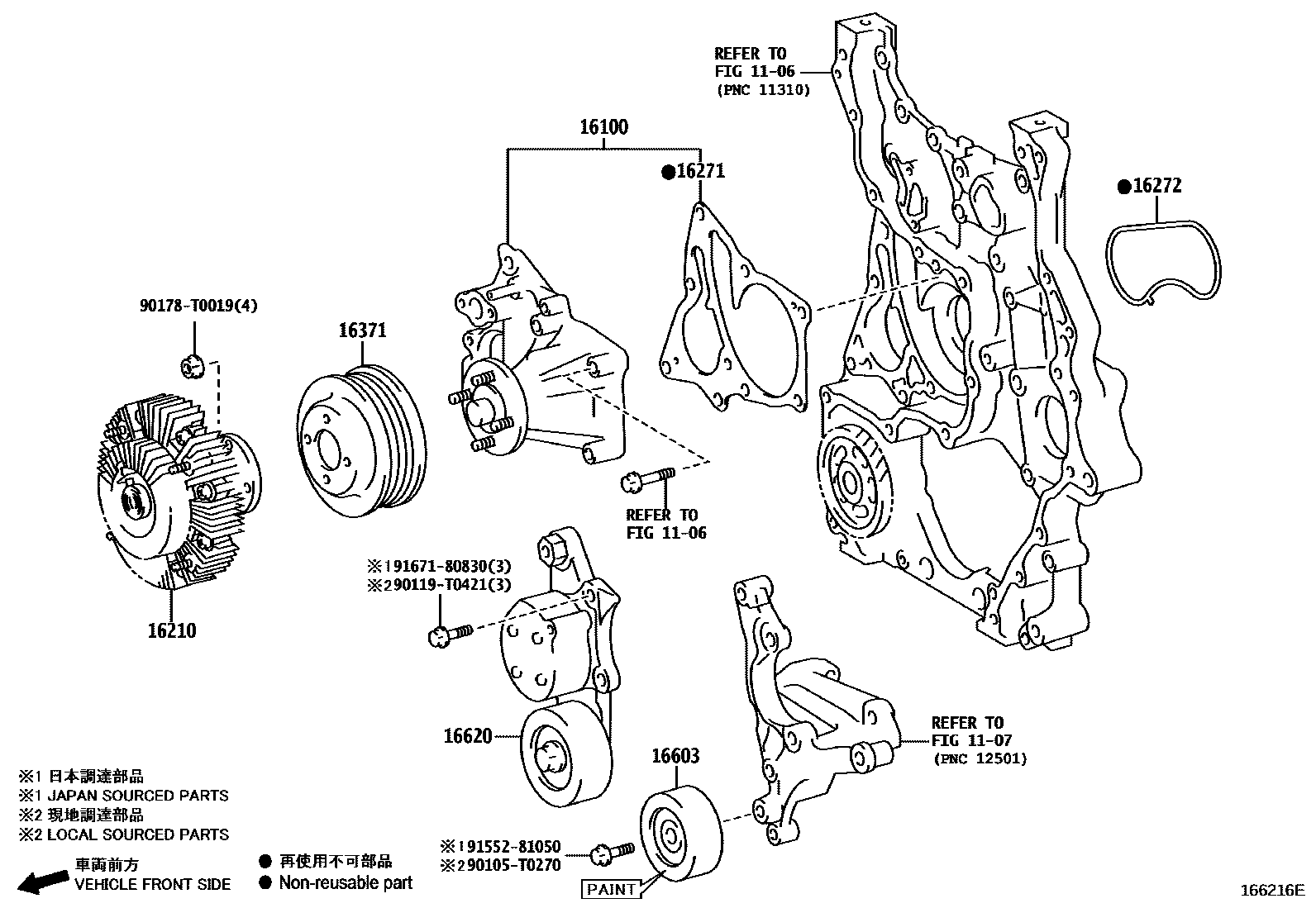

WATER PUMP

0001 1 0002 1

1106

1107

16100PUMP ASSY, ENGINE WATER

main16100-09460i1TRFE..TGN140..5F..MA201511-201905

main16100-09710i2GDFTV..GUN142201511-201603

main16100-09711i1GDFTV,2GDFTV..GUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)202009-202304

16210COUPLING ASSY, FLUID

main16210-0C010i1TRFE..TGN140..5F..MA201511-201905

main16210-0E010i2GDFTV..GUN142..GEN201905-202008

main16210-0E020supersedes 16210-0E020i1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)201511

16271GASKET, WATER PUMP

main16271-0E010i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)201511-202008

main16271-0E020i2GDFTV..GUN142..(6F,6FC)..IND202011-202301

16272GASKET, WATER PUMP, NO.2

main16272-0E010i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)201511-202008

main16272-0E020i2GDFTV..GUN142..5F..IND202011

16371PULLEY, FAN

main16371-0C010i2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH)201511-202008

main16371-0E010i1GDFTV,2GDFTV..GUN14#..IND201511-201710

main16371-0E020i2GDFTV..GUN142..5F..IND202011

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0C013supersedes 16603-0C013i1TRFE..TGN140..TH201511-201608

main16603-0E010i2GDFTV..GUN142..6FC..(IDN,MA)202009

(L)

main16603-31050i1TRFE..TGN140..VN201605-202009

(J)

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0E010supersedes 16620-0E010i2GDFTV..GUN142..IDN;1GDFTV..GUN143..6FC..(GCC,TH)201511-202008

main16620-0E020i2GDFTV..GUN142..GEN202009-202304

90105T0270

main90105-T0270

90119T0421

main90119-T0421

90178T0019

main90178-T0019

9155281050

main91552-81050

9167180830

main91671-80830

14 parts on this diagram · 2 diagrams in section
