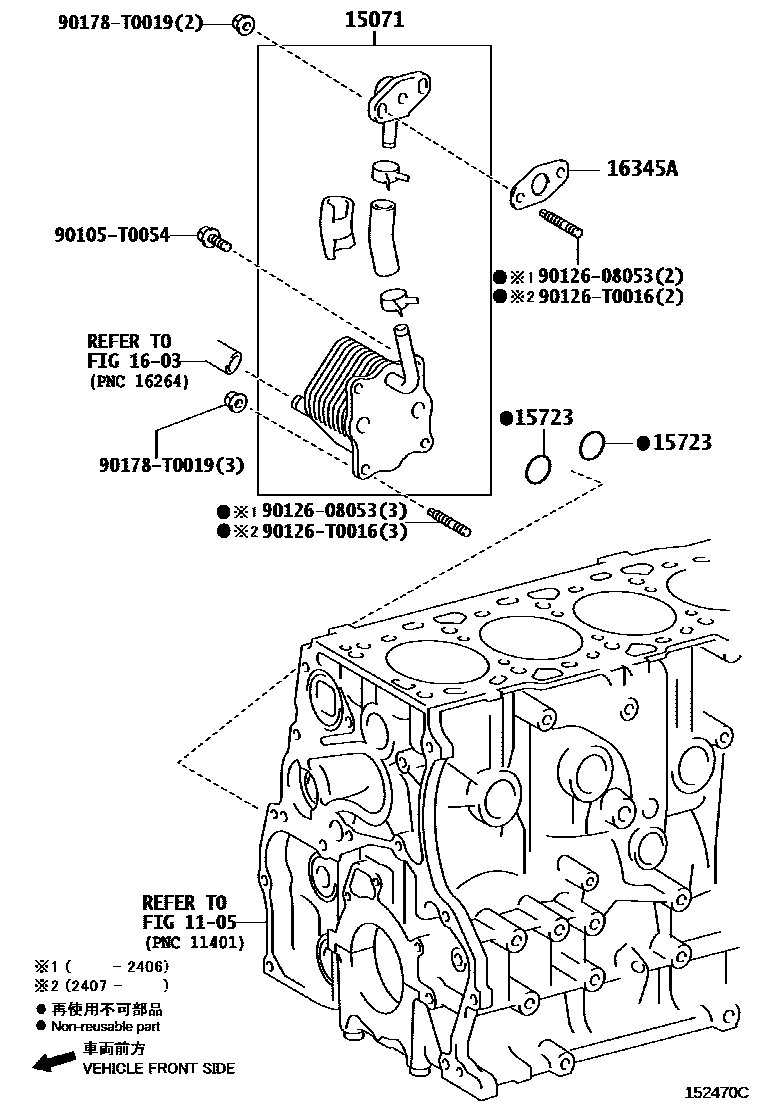

ENGINE OIL COOLER

1105

15071COOLER SET, ENGINE OIL

main15071-08010i2GDFTV..GUN142..(6F,6FC)..IND202209-202304

main15071-0E010i2GDFTV..GUN142..(24,24G,24Z,G)..IND201511-202209

sub15071-08010

15723RING, O

main90301-T0010i1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)201511-202304

1603

16345AGASKET, WATER OUTLET PIPE

main16345-0E010i1GDFTV,2GDFTV..GUN14#..IND201511-202304

main16345-0E020i1GDFTV,2GDFTV..GUN14#..IND201709-202301

90105T0054

main90105-T0054

9012608053

main90126-08053

90126T0016

main90126-T0016

90178T0019

main90178-T0019

9 parts on this diagram · 1 diagram in section
