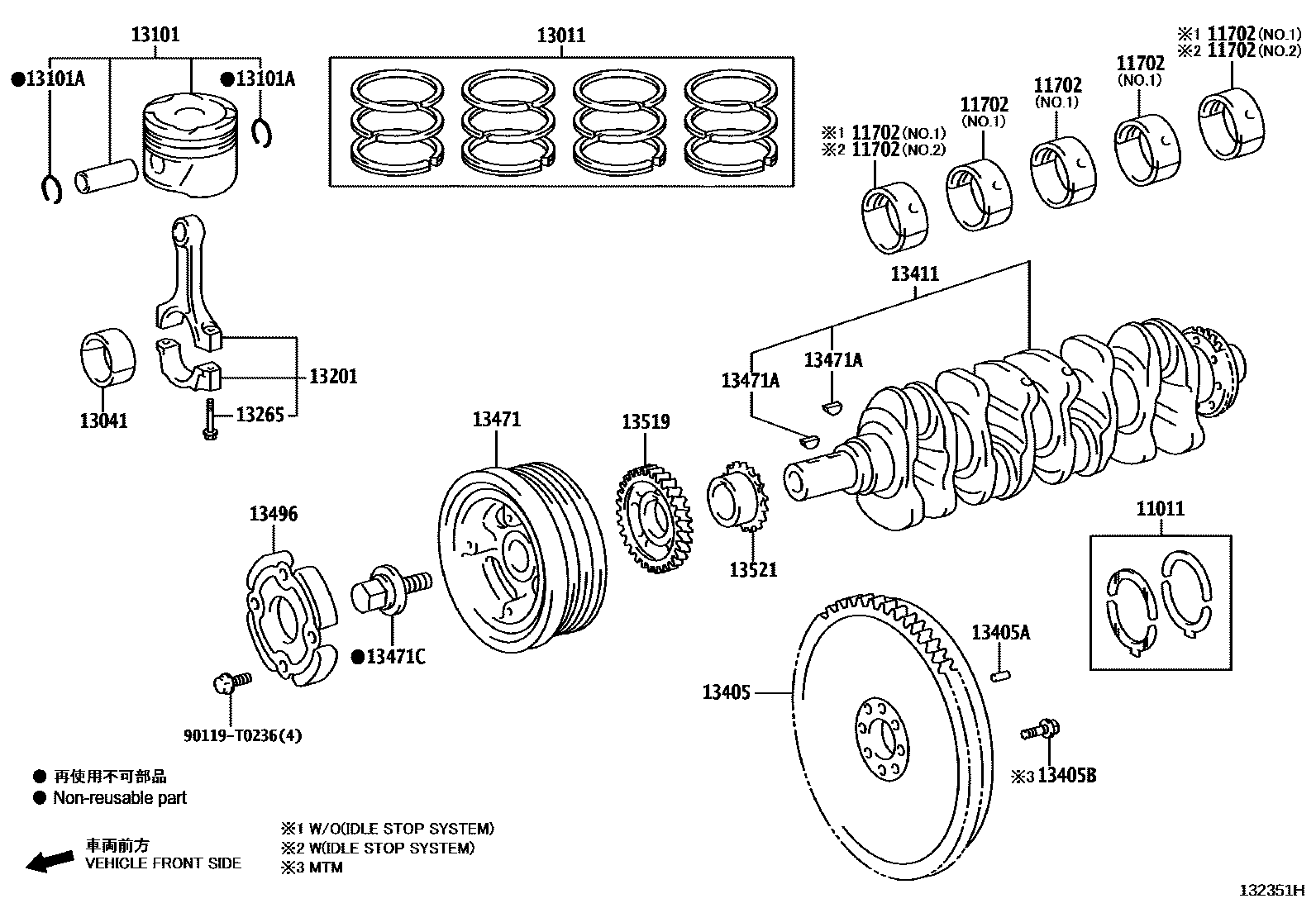

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11702BEARING SET, CRANKSHAFT
MARK 2,NO.1
MARK 3,NO.1
MARK 4,NO.1
MARK 5,NO.1
MARK 6,NO.1
MARK 2,NO.2
MARK 3,NO.2
MARK 4,NO.2
MARK 5,NO.2
MARK 6,NO.2
MARK 2,NO.1
MARK 3,NO.1
MARK 4,NO.1
MARK 5,NO.1
MARK 6,NO.1
EXHAUST EMISSION CONTROL-EURO4,WITH(ON BOARD DIAGNOSIS),MARK 2,NO.2
EXHAUST EMISSION CONTROL-EURO4,WITH(ON BOARD DIAGNOSIS),MARK 3,NO.2
EXHAUST EMISSION CONTROL-EURO4,WITH(ON BOARD DIAGNOSIS),MARK 4,NO.2
EXHAUST EMISSION CONTROL-EURO4,WITH(ON BOARD DIAGNOSIS),MARK 5,NO.2
EXHAUST EMISSION CONTROL-EURO4,WITH(ON BOARD DIAGNOSIS),MARK 6,NO.2
13011RING SET, PISTON
STD,(L)
STD,(L)
STD
STD
STD,HIGHSULFUR SPEC
STD,HIGHSULFUR SPEC
STD,EXHAUST EMISSION CONTROL-EURO4,WITH(ON BOARD DIAGNOSIS)
STD
STD
STD
STD
STD,(J)
STD,(J)
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 4,(L),REFER R/M
MARK 5,(L),REFER R/M
MARK 6,(L),REFER R/M
MARK 2
MARK 3
MARK 4,THA SOURCED PARTS
MARK 5,THA SOURCED PARTS
MARK 6
MARK 2,THA SOURCED PARTS
MARK 3
MARK 4
MARK 5
MARK 6,THA SOURCED PARTS
MARK 2
main13041-0E020-03×4i1GDFTV..GUN143..5F..(GCC,GEN);1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)201604-202103
MARK 3
MARK 4
MARK 5
MARK 6
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 2,IND SOURCED PARTS
MARK 3,IND SOURCED PARTS
MARK 4,IND SOURCED PARTS
MARK 5,IND SOURCED PARTS
MARK 6,IND SOURCED PARTS
MARK 2,IND SOURCED PARTS
MARK 3,IND SOURCED PARTS
MARK 4,IND SOURCED PARTS
MARK 5,IND SOURCED PARTS
MARK 6,IND SOURCED PARTS
main13041-75070-04×4i2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH)201603-202008
MARK 4,(J),REFER R/M
MARK 5,(J),REFER R/M
MARK 6,(J),REFER R/M
13101PISTON SUB-ASSY, W/PIN
main13101-0C060×4i1TRFE..TGN140..PHLP..(20,N);1TRFE..TGN140..PHLP..6FC..20E;1TRFE..TGN140..IDNP..(IDN,PHL);1TRFE..TGN140..(20E,20V)..(MA,VN)202009
STD
STD
STD,MARK 1
STD,MARK 2
STD,MARK 1
STD,MARK 2
STD,MARK 1
STD,MARK 2
STD,MARK 1
STD,MARK 2
STD,MARK 1
STD,MARK 2
STD,MARK 1
STD,MARK 2
O/S 0.50
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-32013×8i2GDFTV..GUN142..5F..24V..IDN;2GDFTV..GUN142..5F..(24G,24Z,G);2GDFTV..GUN142..6FC..(IDN,MA,TH);1GDFTV..GUN143..(28,28E,28V,N)..PHL202009
13201ROD SUB-ASSY, CONNECTING
TYPE A
TYPE A
TYPE A
TYPE A
TYPE B
TYPE B
TYPE B
TYPE B
MARK A,(L)
MARK B,(L)
MARK C,(L)
MARK A,(L)
MARK B,(L)
MARK C,(L)
MARK A
MARK B
MARK C
MARK A
MARK B
MARK C
MARK A,(J)
MARK B,(J)
MARK C,(J)
MARK A,(J)
MARK B,(J)
MARK C,(J)
13265BOLT, CONNECTING ROD
(L),MADE IN IDN
(L),MADE IN THAILAND
main13265-22031×8i1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)201511
main13265-28010×8i2TRFE..TGN141..6FC;2TRFE..TGN141..5F..27..GCC;1TRFE..TGN140..IDN,MA,PHL,TH,VN;2TRFE..TGN141..5F..(27,27G,27V)..(IND,LA)201511-201812
(J)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8,(J)
L=22,OD=10
L=23,OD=8,(L)
L=15,OD=5
13405BBOLT, FLYWHEEL SETTING
(J)
(J)
(L)
13411CRANKSHAFT
main13401-0C010i1TRFE..TGN140..IDNP;1TRFE..TGN140..PHLP..(20,N);1TRFE..TGN140..PHLP..6FC..20E;1TRFE..TGN140..(20E,20V)..(MA,VN)202009-202202
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-T0002×2i2GDFTV..GUN142..5F..24V..IDN;2GDFTV..GUN142..5F..(24G,24Z,G);2GDFTV..GUN142..6FC..(IDN,MA,TH);1GDFTV..GUN143..(28,28E,28V,N)..PHL202009
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
(L)
13496COVER, CRANKSHAFT PULLY
13519GEAR, OIL PUMP DRIVE
main13519-0E010i1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)201511
IND SOURCED PARTS
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
(L)
main13521-0E010i1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,SA,TH)..DCR;1GDFTV..GUN143..PHLP..(28E,28G,28V,N)201511
(J)
90119T0236
main90119-T0236
19 parts on this diagram · 3 diagrams in section
