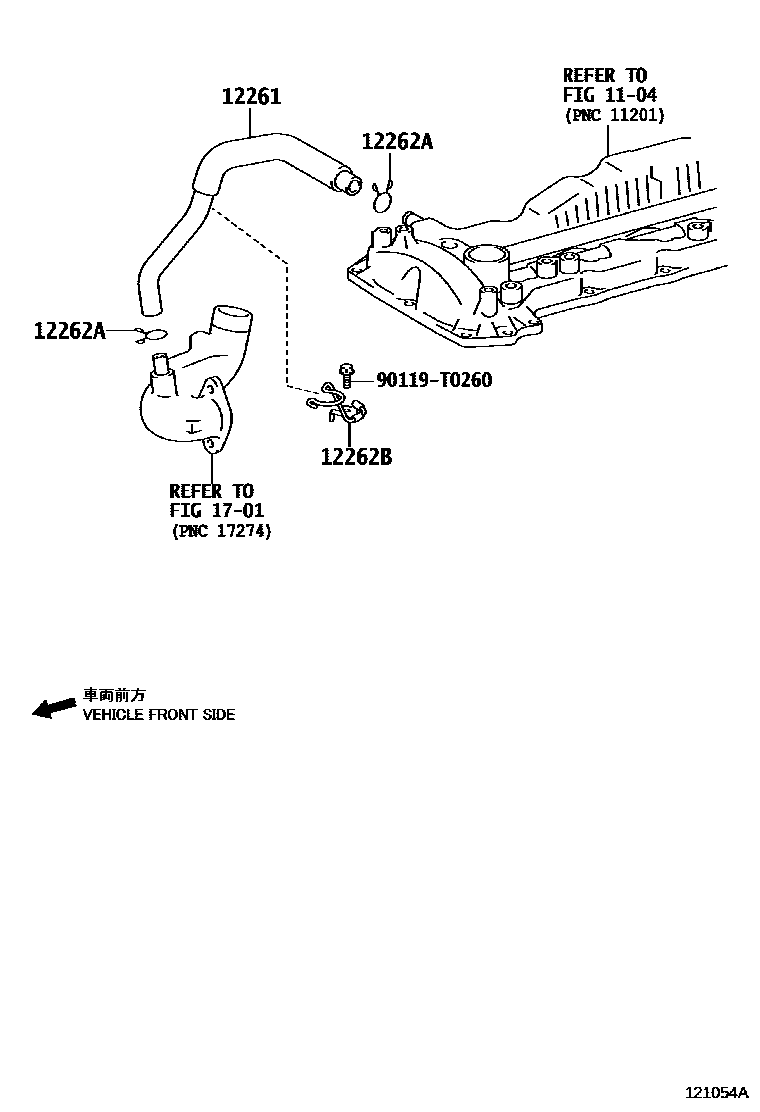

VENTILATION HOSE

0001 1 0002 1

1104

12261HOSE, VENTILATION

main12261-0C030i1TRFE..TGN140..6FC..MA201511-202012

main12261-0E010i1GDFTV..GUN143..IDNP..PHL201709-202008

main12261-0E020i1GDFTV,2GDFTV..GUN14#..IND201604-202010

12262HOSE, VENTILATION, NO.2

main12262-0C050i1TRFE..TGN140..GEN;2TRFE..TGN141..IDNP..5F..(27G,27SR)201511-201807

main12262-0C070i1TRFE..TGN140..6FC..MA201811-202012

main12262-0C090i1TRFE,2TRFE..TGN14#..VN202010

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-22005×2i2GDFTV..GUN142..5F..24V..IDN;2GDFTV..GUN142..5F..(24G,24Z,G);2GDFTV..GUN142..6FC..(IDN,MA,TH);1GDFTV..GUN143..(28,28E,28V,N)..PHL202009

main90466-T0027i1TRFE..TGN140..GEN;2TRFE..TGN141..IDNP..5F..(27G,27SR)201511-201807

(L),NO.1

main90466-T0075i1TRFE..TGN140..PHLP..N;1TRFE..TGN140..PHLP..6FC..20E201908-202102

(L),NO.2

main90467-21004i2TRFE..TGN141..5F..27..GCC201511-201904

(J),NO.1

main90467-24038i2TRFE..TGN141..5F..27..GCC201511-201904

NO.2

12262BCLAMP(FOR VENTILATION HOSE)

main16581-11040i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)201511-202008

1701

90119T0260

main90119-T0260

7 parts on this diagram · 2 diagrams in section
