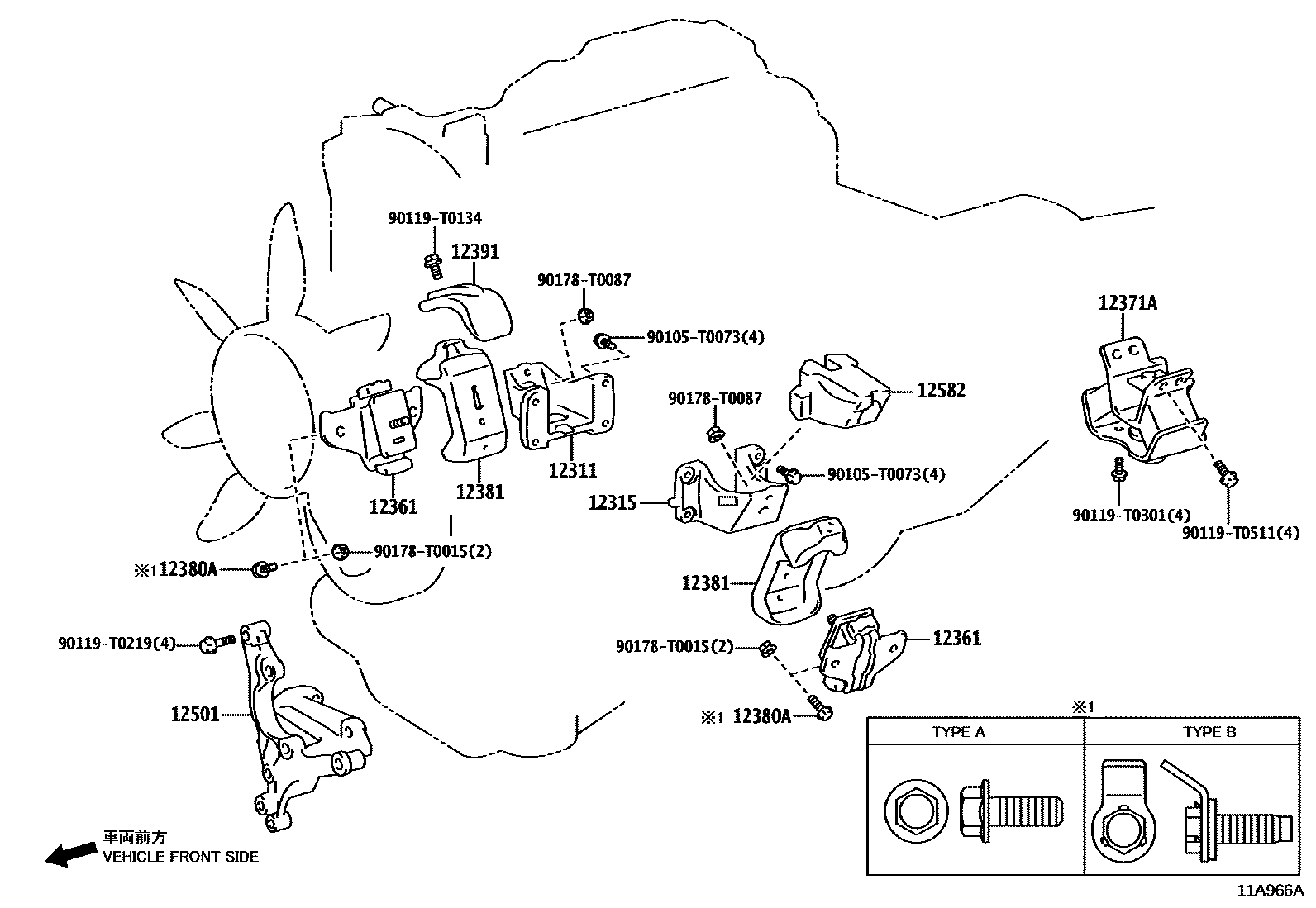

MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0C010i1TRFE..TGN140..VN201511-202304

main12311-0E020i1GDFTV..GUN143..5F..(GCC,GEN)201511-202304

main12311-0E020i1GDFTV,2GDFTV..GUN14#..IND201604-202301

THA SOURCED PARTS

main12311-0E050i2GDFTV..GUN142..IND202002-202301

IND SOURCED PARTS

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0C010i1TRFE..TGN140..PHLP..(20,N);1TRFE..TGN140..PHLP..6FC..20E;1TRFE..TGN140..IDNP..(IDN,PHL);1TRFE,2TRFE..TGN14#..(20E,20V,27V)..(MA,VN)201511-202304

main12315-0E010i1GDFTV..GUN143..PHLP..28G201511-202304

main12315-0E010i1GDFTV,2GDFTV..GUN14#..IND201604-202301

THA SOURCED PARTS

main12315-0E040i2GDFTV..GUN142..IND202002-202301

IND SOURCED PARTS

12361INSULATOR, ENGINE MOUNTING, FRONT

main12305-0C050i2TRFE..TGN141..IND201511-202210

sub12305-0C051

main12305-0C051i1TRFE,2TRFE..TGN14#..IDN,MA,VN202211-202304

main12361-0L020i1GDFTV,2GDFTV..GUN14#..IND201511-202006

sub12361-0L021

sub12381-0L081

main12361-0L021i1GDFTV..GUN143..PHLP..28G202006-202304

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-0C072i1TRFE..TGN140..PHLP..5F..20E201511-202304

main12371-0C190i1TRFE..TGN140..6FC..MA201511-202304

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0L052i2GDFTV..GUN142..5F..(24G,24Z,G)..IND201511-202108

main12371-0L170i2GDFTV..GUN142..5F..IND202108

main12371-0L180i2GDFTV..GUN142..6F201709-202301

main12371-0L200i2GDFTV..GUN142..6FC..IND201511-202304

12380ABOLT(FOR ENGINE MOUNTING INSURATOR)

main90105-T0174i1TRFE,2TRFE..TGN14#..GCC,GEN,LA,TH201511-202304

TYPE A:REFER ILLUST.

main90910-03003i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH)201511-202304

TYPE B:REFER ILLUST.

12381STABILIZER, ENGINE MOUNTING

main12381-0L080i2GDFTV..GUN142..TH201511-202006

main12381-0L081i1GDFTV,2GDFTV..GUN14#..IDNP202006-202304

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-0L010i2GDFTV..GUN142..IND..DCRL201604-202301

main12391-0L030i2TRFE..TGN141..5F..27..GCC201511-202304

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-0E010i2GDFTV..GUN142..TH201511-201903

sub12501-0E011

main12501-0E011i1GDFTV,2GDFTV..GUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)201904-202304

main12501-0E020i2GDFTV..GUN142..(6F,6FC)..IND201604-202301

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-0E010i1GDFTV..GUN143..PHLP..(28E,28V,N)201511-202311

main12582-0E020i2GDFTV..GUN142..5F..IND201709-202311

IND SOURCED PARTS

90105T0073

main90105-T0073

90119T0134

main90119-T0134

90119T0219

main90119-T0219

90119T0301

main90119-T0301

90119T0511

main90119-T0511

90178T0015

main90178-T0015

90178T0087

main90178-T0087

17 parts on this diagram · 4 diagrams in section
