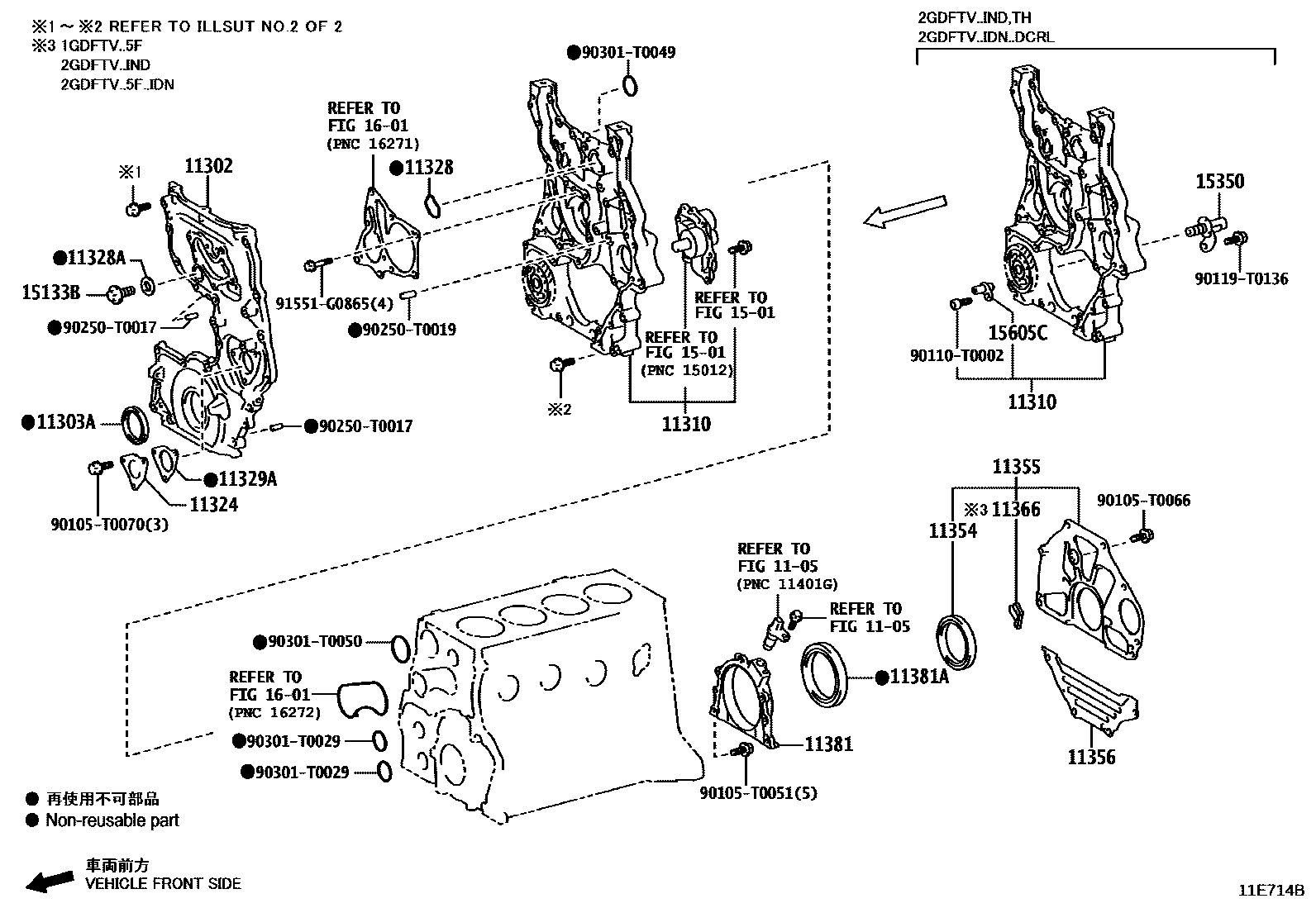

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

1105

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0C030i1TRFE..TGN140..GEN201511-201807

main11310-0C040i2TRFE..TGN141..27G,27Z202009-202301

main11321-0E010i1GDFTV,2GDFTV..GUN14#..(IDNP,MAP,PHLP)..(20G,24G,24V,28,28E,28V,N)202009-202110

main11321-0E020i2GDFTV..GUN142..5F..IND202011

main11321-11120i1GDFTV,2GDFTV..GUN14#..IDN,PHL202110-202401

(J)

sub11321-35040

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main90311-T0054i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)201511-202008

main90311-T0060i1TRFE,2TRFE..TGN14#201511-201801

main90311-T0099i2TRFE..TGN141..IND201802-202010

11310COVER ASSY, TIMING CHAIN

main11310-0E010i1GDFTV,2GDFTV..GUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)202009-202304

main11310-0E040i2GDFTV..GUN142..TH202009-202107

main11310-0E050i2GDFTV..GUN142..5F..IND202011-202506

IND SOURCED PARTS

11324PLATE, TIMING CHAIN COVER

main11324-0C010i2TRFE..TGN141..5F..27..GCC201704-201904

main11324-0E010i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..(GCC,TH)201511-202008

main11324-0E020i2GDFTV..GUN142..5F..IND202011

main11324-75010i1TRFE,2TRFE..TGN14#201511-201703

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-0C010i1TRFE..TGN140..VN201704-202009

main11328-0E010i1GDFTV,2GDFTV..GUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)202009-202304

main11328-0E020i2GDFTV..GUN142..5F..IND202011

main11328-75030i1TRFE,2TRFE..TGN14#201511-201703

11328AGASKET, TIMING BELT COVER, NO.1

main11328-11080i2GDFTV..GUN142..5F..24V..IDN;2GDFTV..GUN142..5F..(24G,24Z,G);2GDFTV..GUN142..6FC..(IDN,MA,TH);1GDFTV..GUN143..(28,28E,28V,N)..PHL202009

main11328-38030i1GDFTV..GUN143..IDNP..PHL201709-201910

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-0E010i1GDFTV..GUN143..IDNP..PHL201709-202008

main11329-0E020i2GDFTV..GUN142..5F..IND202011

11354SEAL, FLYWHEEL HOUSING DUST

main11354-0L020i1GDFTV,2GDFTV..GUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)202009-202304

11355PLATE, REAR END

main11355-0C010i1TRFE..TGN140..PHLP..20G;1TRFE..TGN140..PHLP..5F..20E201511

main11355-0E010i1GDFTV..GUN143..6FC..(GCC,TH);2GDFTV..GUN142..6FC..(GEN,IDN)201511-202008

main11355-0E020i2GDFTV..GUN142..IND201604-201811

main11355-0E040i1GDFTV,2GDFTV..GUN14#..IDNP..5F..(IDN,PHL)201802-202008

main11355-0E050i2GDFTV..GUN142..24202011-202301

11356PLATE, REAR END, NO.2

main11356-0L011i1GDFTV,2GDFTV..GUN14#..IDNP,PHLP201511-201711

main11356-0L012i2GDFTV..GUN142..5F..IND202011

THA SOURCED PARTS

main11356-0L041i1GDFTV,2GDFTV..GUN14#..IND201604-201711

main11356-0L042i1GDFTV,2GDFTV..GUN14#..IND201712-202010

IND SOURCED PARTS

11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST

main11366-0E010i2GDFTV..GUN142..IND..DCR201811

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0C012i1TRFE..TGN140..VN201511-202009

main11381-0E010i1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)201511

main11381-0E040i2GDFTV..GUN142..IND202002-202010

IND SOURCED PARTS

11381ASEAL, ENGINE REAR OIL

main90311-T0046i2GDFTV..GUN142..(24V,N)..IND..DCRL201511-202010

main90311-T0058i1TRFE..TGN140..VN201511-202009

1501

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071i1GDFTV..GUN143..5F..(GCC,GEN);2GDFTV..GUN142..(GCC,IND,SA,TH)..DCR;2GDFTV..GUN142..(24G,24Z,G)..IND..DCRL;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)201511

15350VALVE ASSY, OIL PRESSURE SWITCHING

main15350-11010i2GDFTV..GUN142..IND202002-202010

15605CVALVE SUB-ASSY, OIL CHECK

main15605-30040i2GDFTV..GUN142..IND202002-202010

1601

90105T0051

main90105-T0051

90105T0066

main90105-T0066

90105T0070

main90105-T0070

90110T0002

main90110-T0002

90119T0136

main90119-T0136

90250T0017

main90250-T0017

90250T0019

main90250-T0019

90301T0029

main90301-T0029

90301T0049

main90301-T0049

90301T0050

main90301-T0050

91551G0865

main91551-G0865

30 parts on this diagram · 4 diagrams in section
