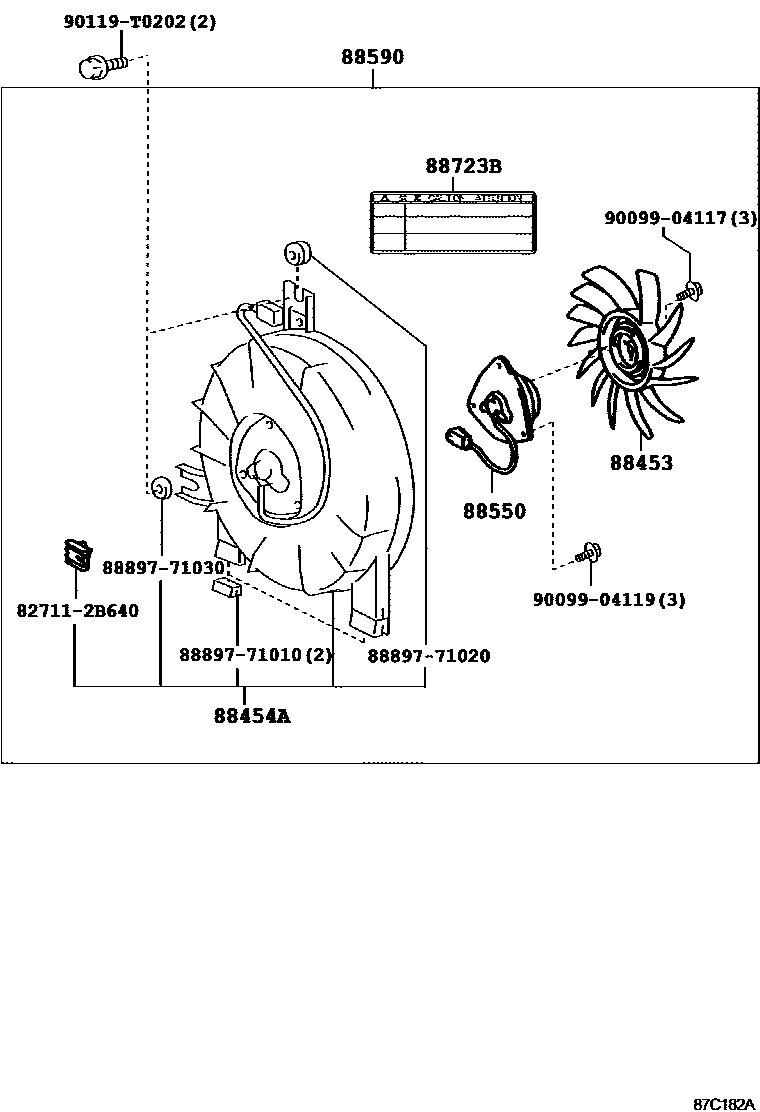

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FUN SHROUD 0002 1FRONT 0003 1FRONT DUAL AIR CONDITIONER 0004 1FRONT SINGLE AIR CONDITIONER 0005 1FRONT DUAL AIR CONDITIONER 0006 1FRONT SINGLE AIR CONDITIONER 0007 1FRONT DUAL AIR CONDITIONER 0008 1FRONT DUAL AIR CONDITIONER 0009 1FRONT DUAL AIR CONDITIONER 0010 1FRONT DUAL AIR CONDITIONER 0011 1FRONT SINGLE AIR CONDITIONER 0012 1FRONT SINGLE AIR CONDITIONER 0013 1FRONT DUAL AIR CONDITIONER 0014 1FRONT DUAL AIR CONDITIONER 0015 1FRONT DUAL AIR CONDITIONER 0016 1FRONT DUAL AIR CONDITIONER 0017 1REAR 0020 1REAR 0021 1REAR 0022 1O-RING

88453FAN, COOLING (FOR CONDENSER)

main88453-60010iTGN41..GCC201107-201510

88454ASHROUD, FAN

main88454-0K020iTGN41..GCC201107-201510

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12160iTGN41..GCC201107-201510

88590BLOWER ASSY, W/SHROUD

main88590-0K020iTGN41..GCC201107-201510

88723BLABEL, COOLER SERVICE CAUTION

main88723-20081iTGN41..GCC201107-201510

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8889771010VALVE, COOLER MAGNET

main88897-71010

8889771020VALVE, COOLER MAGNET

main88897-71020

8889771030VALVE, COOLER MAGNET

main88897-71030

9009904117

main90099-04117

9009904119

main90099-04119

90119T0202

main90119-T0202
