METER

0001 1METER 0002 1CLOCK

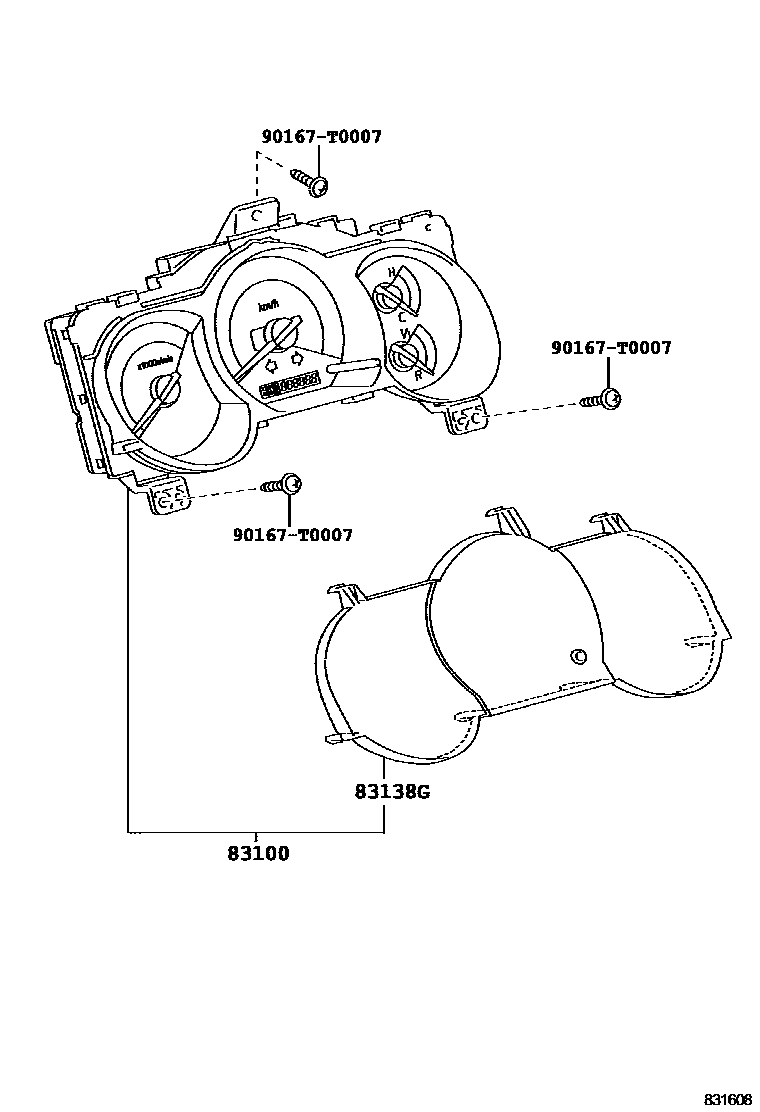

83100METER ASSY, COMBINATION

main83800-F0890iTGN40..STD..TH201107-201308

main83800-F0A00iTGN40..4FC..TH201107-201308

main83800-F0A01iTGN40..4FC..TH201308-201510

main83800-F0A10iTGN40..5F..(LO,STD)..IDN201107-201308

main83800-F0A21iTGN40..RHD..5F..(LO,STD)201308-201510

main83800-F0A30iTGN40..5F..DLX..IDN201107-201308

main83800-F0A31iTGN40..5F..DLX..IDN201308-201510

main83800-F0A41iKUN40..(LO,STD)..IDN201308-201510

main83800-F0A50iKUN40..DLX..DCR..IDN201107-201308

main83800-F0A51iKUN40..DLX..DCR..IDN201308-201510

main83800-F0A60iTGN40..5F..GL..IDN201107-201308

main83800-F0A61iTGN40..5F..GL..IDN201308-201510

main83800-F0A70iTGN40..4FC..GL..IDN201107-201308

main83800-F0A71iTGN40..4FC..GL..IDN201308-201510

main83800-F0A80iKUN40..GL..DCR..IDN201107-201308

main83800-F0A81iKUN40..GL..DCR..IDN201308-201510

main83800-F0A90iKUN40..GL..HDCR..IDN201107-201308

main83800-F0A91iKUN40..GL..HDCR..IDN201308-201510

main83800-F0B00iTGN41..5F..DLX201107-201308

main83800-F0B01iTGN41..5F..DLX201308-201510

main83800-F0B10iTGN41..5F..GL..GCC201107-201308

main83800-F0B11iTGN41..5F..GL..GCC201308-201510

main83800-F0B20iTGN41..4FC..GL201107-201308

main83800-F0B21iTGN41..4FC..GL201308-201510

main83800-F0B30iTGN40..STD..PHL201202-201302

main83800-F0B40iTGN40..5F..DLX..VN201110-201403

main83800-F0B41iTGN40..STD..PHL201402-201603

main83800-F0B50iKUN40..DLX..DCR..PHL201202-201402

main83800-F0B51iKUN40..STD..PHL201402-201603

main83800-F0B60iKUN40..STD..PHL201202-201302

main83800-F0B70iTGN40..5F..GL..PHL201202-201402

sub83800-F0C10

main83800-F0B71iTGN40..5F..GL..PHL201402-201611

main83800-F0B80iTGN40..4FC..GL..PHL201110-201403

main83800-F0B81iTGN40..4FC..GL..PHL201402-201611

main83800-F0B90iKUN40..GL..HDCR..PHL201202-201402

main83800-F0B91iKUN40..GL..HDCR..PHL201402-201603

main83800-F0C00iKUN40..GL..DCR..PHL201202-201402

main83800-F0C01iKUN40..GL..DCR..PHL201402-201603

main83800-F0C10iTGN40..GL..IND201201-201401

main83800-F0C11iTGN40..GL..IND201401-201501

main83800-F0C20iKUN40..GL..IND201201-201401

main83800-F0C21iKUN40..GL..IND201401-201603

main83800-F0C30iKUN40..DLX..IND201201-201401

main83800-F0C31iKUN40..DLX..IND201401-201603

main83800-F0C40iKUN40..STD..IND201201-201401

main83800-F0C41iKUN40..STD..IND201401-201412

sub83800-F0C42

main83800-F0C42iKUN40..STD..IND201501-201603

main83800-F0C60iTGN40..DLX..IND201201-201401

main83800-F0C61iTGN40..DLX..IND201401-201501

main83800-F0C70iKUN40..(LO,STD)..IDN201107-201308

main83800-F0C80iTGN40..4FC..STD201107-201308

main83800-F0C81iTGN40..4FC..STD201308-201510

main83800-F0C90iTGN40..4FC..DLX..IDN201107-201308

main83800-F0C91iTGN40..4FC..DLX..IDN201308-201510

main83800-F0D00iKUN40..DLX..HDCR..IDN201107-201308

main83800-F0D01iKUN40..DLX..HDCR..IDN201308-201510

main83800-F0D10iTGN40..STD..VN201202-201303

main83800-F0D20iTGN40..4FC..DLX..VN201110-201403

main83800-F0D21iTGN40..4FC..DLX..PHL201402-201603

main83800-F0D30iKUN40..DLX..HDCR..PHL201202-201402

main83800-F0D31iKUN40..DLX..HDCR..PHL201402-201603

main83800-FA550iTGN41..4FC..DLX201107-201308

main83800-FA551iTGN41..4FC..DLX201308-201510

main83800-FA560iTGN41..SA201107-201308

main83800-FA561iTGN41..SA201308-201510

main83800-FB410iTGN40..STD..PHL201302-201402

main83800-FB411iTGN40..STD..PHL201402-201502

main83800-FB420iTGN40..STD..VN201303-201403

main83800-FB421iTGN40..STD..VN201403-201611

main83800-FB430iKUN40..STD..PHL201302-201402

main83800-FB431iKUN40..STD..PHL201402-201502

main83800-FC420iTGN40..5F..MA201309-201601

main83800-FC430iTGN40..GL..MA201309-201601

main83800-FC440iTGN40..4FC..DLX..MA201309-201510

83138GGLASS, COMBINATION METER

main83852-0K680iKUN40,TGN40..(DLX,STD)..IND201201-201603

main83852-0KC00iTGN40..LO,STD;TGN40..5F..MA;TGN40..DLX..(IDN,PHL);KUN40,TGN41..(DLX,LO,STD)..(GCC,IDN,PHL)201107-201611

main83852-F0A00iTGN40..DLX..TH;KUN40,TGN4#..GL201107-201611

90167T0007

main90167-T0007

3 parts on this diagram · 2 diagrams in section
