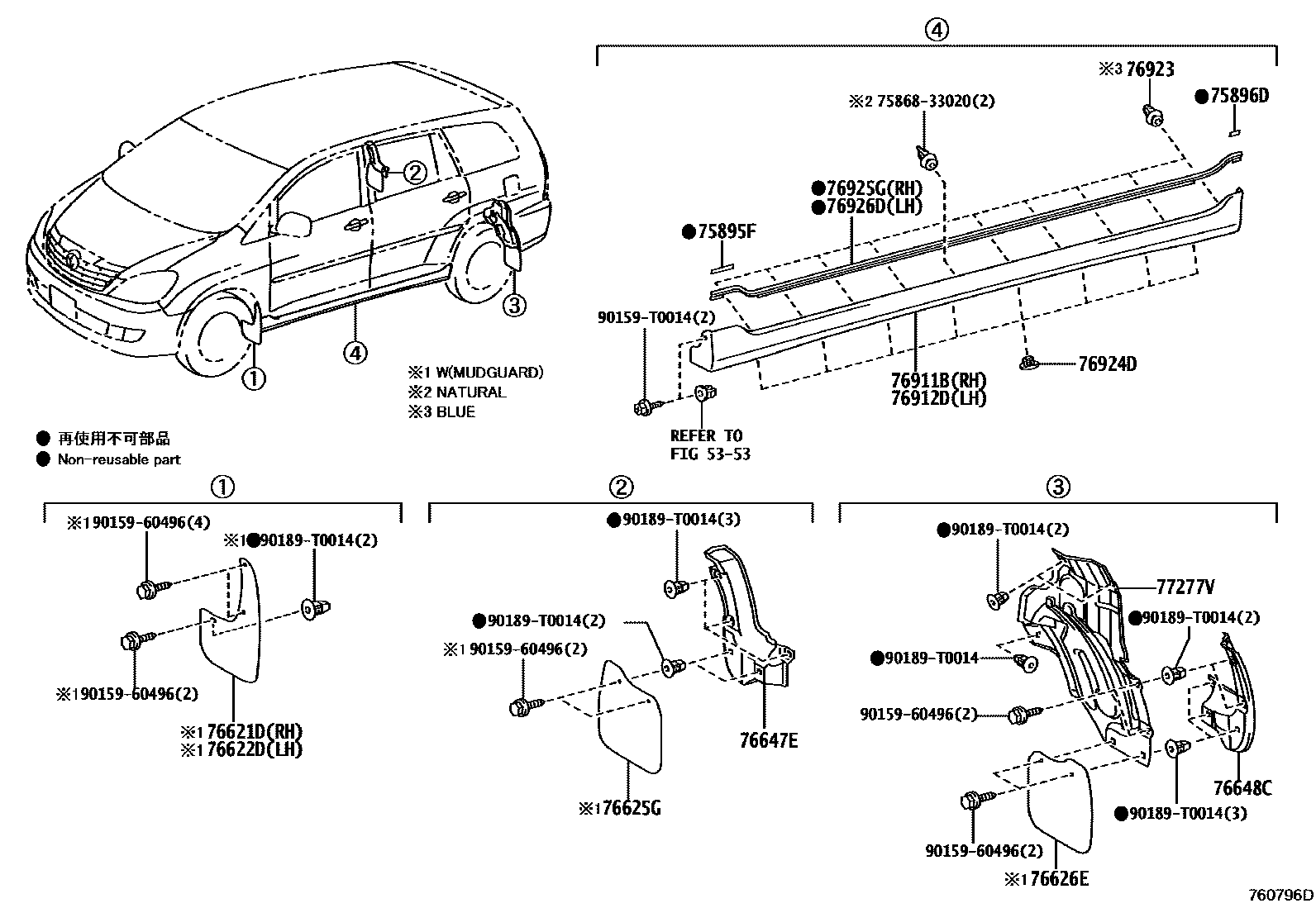

SPOILER & SIDE MUDGUARD
5353
75895FTAPE, MOULDING, NO.1
main75895-0K010iTGN41;KUN40,TGN40..DLX..(IND,TH,VN);KUN40,TGN40..GL..(IDN,IND,PHL,TH,VN)201107-201611
75896DTAPE, MOULDING, NO.2
main75896-0K010iTGN41;KUN40,TGN40..DLX..(IND,TH,VN);KUN40,TGN40..GL..(IDN,IND,PHL,TH,VN)201107-201611
76621DMUDGUARD, FRONT FENDER, RH
76622DMUDGUARD, FRONT FENDER, LH
76625GMUDGUARD, QUARTER PANEL, REAR RH
76626EMUDGUARD, QUARTER PANEL, REAR LH
76647ESUPPORT, REAR BODY MUDGUARD, NO.1 RH
76648CSUPPORT, REAR BODY MUDGUARD, LH
76911BMUDGUARD, SIDE, RH
76912DMUDGUARD, SIDE, LH
76923RETAINER, SIDE MUDGUARD
76924DRETAINER, SIDE MUDGUARD, NO.2
main76924-13020iTGN41;KUN40,TGN40..DLX..(IND,TH,VN);KUN40,TGN40..GL..(IDN,IND,PHL,TH,VN)¥70201107-201611
76925GPROTECTOR, SIDE MUDGUARD, RH
GRAY,040 ,1C0 ,1D6 ,5A7 ,8S9
SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN,GRAY,040 ,1C0 ,1D6 ,5A7 ,8S9
SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN,BLACK,1E3 ,1H2 ,209 ,218 ,4U3
BLACK,1E3 ,1H2 ,209 ,218 ,4U3
BLACK,000
GRAY,040 ,1D6 ,1E7 ,4T3 ,5A7
BLACK,1E3 ,1G3 ,209 ,218 ,3Q3 ,8U6
76926DPROTECTOR, SIDE MUDGUARD, LH
SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN,GRAY,040 ,1C0 ,1D6 ,5A7 ,8S9
GRAY,040 ,1C0 ,1D6 ,5A7 ,8S9
BLACK,1E3 ,1H2 ,209 ,218 ,4U3
SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN,BLACK,1E3 ,1H2 ,209 ,218 ,4U3
BLACK,000
GRAY,040 ,1D6 ,1E7 ,4T3 ,5A7
BLACK,1E3 ,1G3 ,209 ,218 ,3Q3 ,8U6
77277VPROTECTOR, FUEL TANK FILLER PIPE, NO.1
7586833020ORNAMENT, BACK DOOR OUTSIDE, RH
9015960496
90159T0014
main90159-T0014
90189T0014
main90189-T0014
20 parts on this diagram · 1 diagram in section
