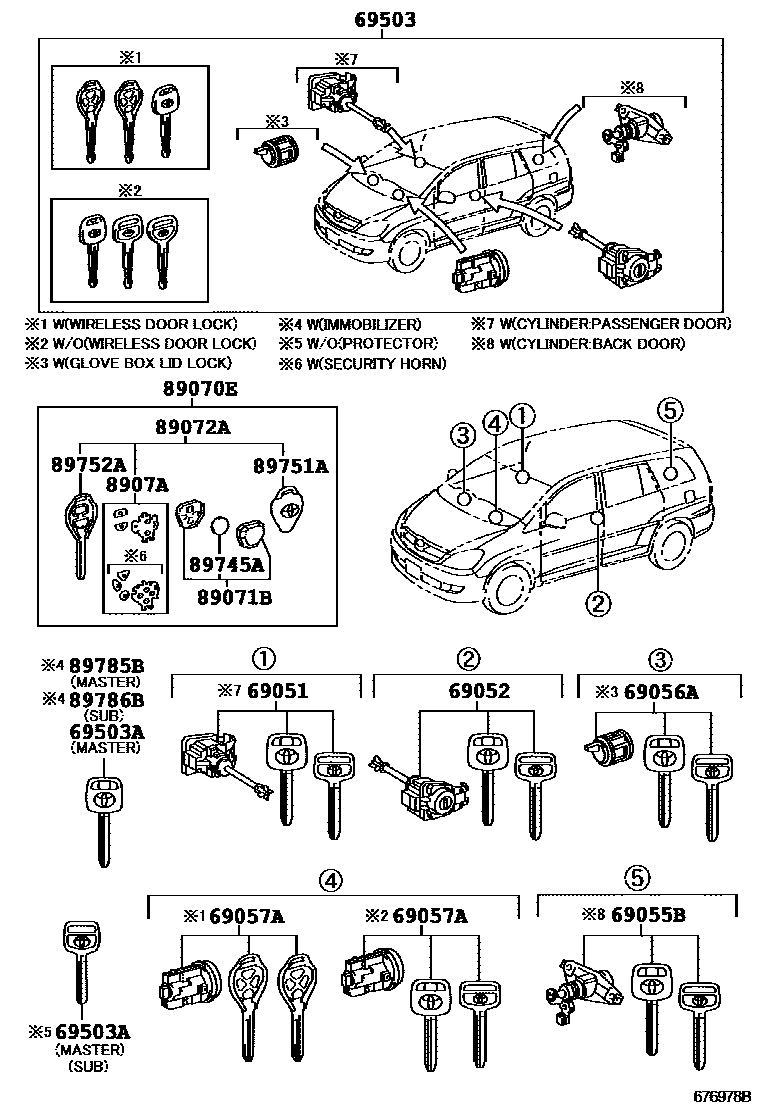

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055BCYLINDER & KEY SET, BACK DOOR LOCK
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
WIRELESS DOOR LOCK-WITH
69503CYLINDER SET, LOCK
WIRELESS DOOR LOCK-WITH
69503AKEY, BLANK
MASTER KEY
main90999-00188iKUN40..STD..IND;TGN40..(GL,STD)..VN;TGN40..4FC..DLX..VN;KUN40,TGN40..IDN,PHL201107-201611
SUB KEY
MASTER KEY,W(*68)
89070ETRANSMITTER ASSY, DOOR CONTROL
POWER DOOR LOCK-WITH&MULTI INFORMATION DISPLAY-CLOCK ONLY
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&MULTI INFORMATION DISPLAY-CLOCK ONLY
sub89070-0KA10
main89070-0K344iTGN40..4FC..IDN;TGN40..5F..DLX..VN;KUN40..(DLX,GL,STD)..IDN;TGN40..5F..(DLX,GL,STD)..(IDN,TH)201308-201608
sub89070-0K345
sub89070-0K485
sub89070-0K484
sub89070-0K491
sub89070-0K651
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&MULTI INFORMATION DISPLAY-CLOCK ONLY
sub89070-0K701
WIRELESS DOOR LOCK-WITH
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&MULTI INFORMATION DISPLAY-CLOCK ONLY
sub89071-71091
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&MULTI INFORMATION DISPLAY-CLOCK ONLY
sub89072-0K213
POWER DOOR LOCK-WITH&MULTI INFORMATION DISPLAY-CLOCK ONLY
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&MULTI INFORMATION DISPLAY-CLOCK ONLY
CS AMERICA SPEC
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
8907ASWITCH SET, TRANSMITTER
89745ABATTERY, TRANSMITTER
89751ACOVER, TRANSMITTER HOUSING
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
89752ACASE, TRANSMITTER HOUSING
POWER DOOR LOCK-WITH&MULTI INFORMATION DISPLAY-CLOCK ONLY
WIRELESS DOOR LOCK-WITH
89785BTRANSMITTER, TRANSPONDER KEY MASTER
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY
BLANK KEY
16 parts on this diagram · 2 diagrams in section
