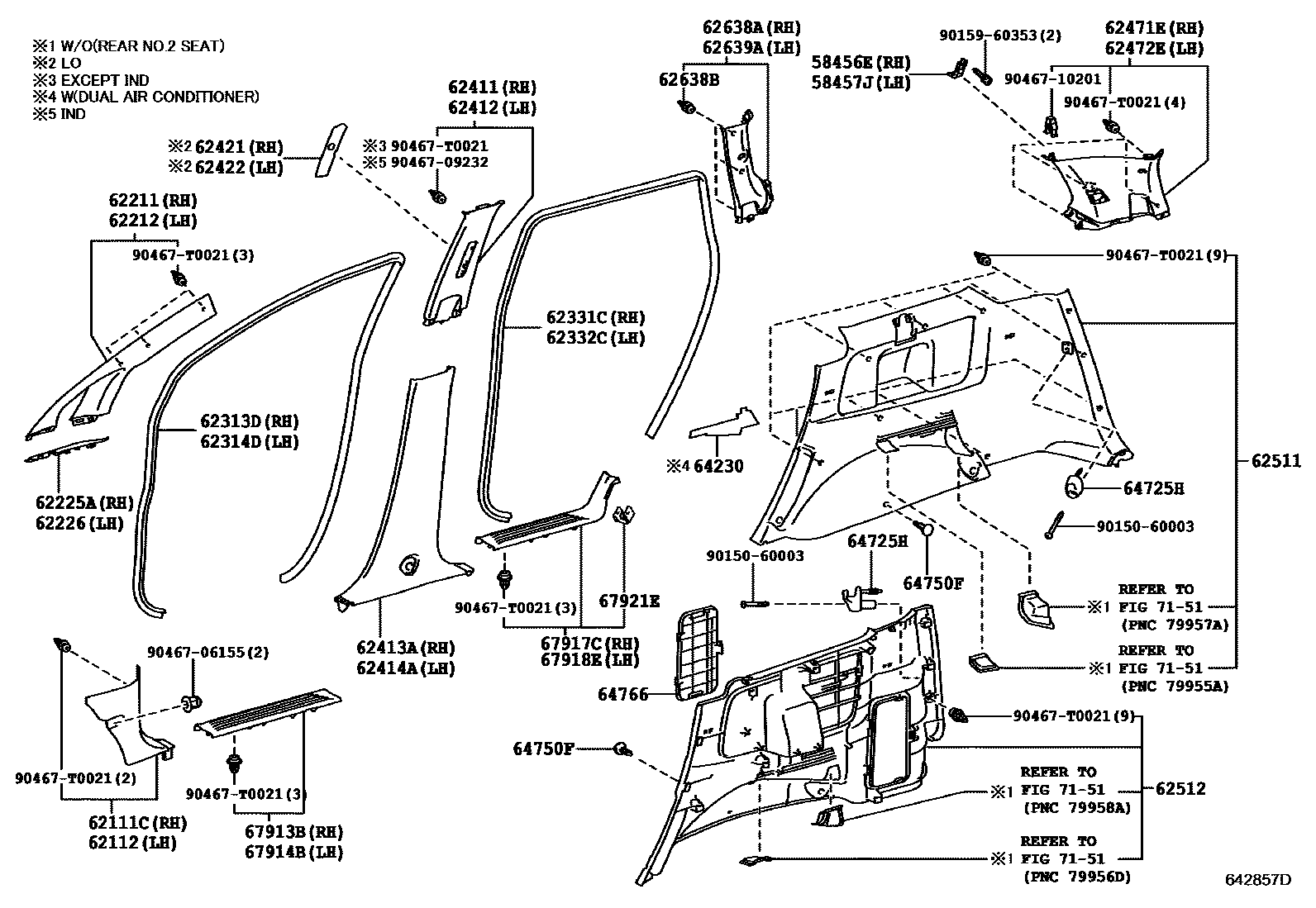

INSIDE TRIM BOARD

58456EBRACKET, REAR GARNISH, NO.1 RH

main58456-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main58456-0K020iKUN40,TGN40..IND201201-201603

58457JBRACKET, REAR GARNISH, NO.1 LH

main58456-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main58456-0K020iKUN40,TGN40..IND201201-201603

62111CBOARD, COWL SIDE TRIM, RH

main62111-0K060-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main62111-0K060-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,SA,TH)201107-201611

GREGE,TRIM4#

main62111-0K070-E0iTGN40..IND201201-201501

GREGE,TRIM4#

main62111-0K130-E0iKUN40,TGN40..LO201107-201510

GREGE,TRIM4#

main62111-0K070-E2supersedes 62111-0K140-E1iKUN40..IND201501-201603

INDIA SPEC(EURO 3 REGULATION),ORK,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-0K060-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main62112-0K060-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,SA,TH)201107-201611

GREGE,TRIM4#

main62112-0K070-E0iTGN40..IND201201-201501

GREGE,TRIM4#

main62112-0K130-E0iKUN40,TGN40..LO201107-201510

GREGE,TRIM4#

main62112-0K070-E2supersedes 62112-0K140-E1iKUN40..IND201501-201603

INDIA SPEC(EURO 3 REGULATION),ORK,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-0K060-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

LT.GRAY,TRIM1#

main62211-0K060-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main62211-0K070-E0supersedes 62211-0K090-E0iTGN40..IND;KUN40..STD..IND201201-201603

GREGE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-0K060-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

LT.GRAY,TRIM1#

main62212-0K060-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main62212-0K070-E0supersedes 62212-0K130-E0iTGN40..IND;KUN40..STD..IND201201-201603

GREGE,TRIM4#

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-0K010-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

LT.GRAY,TRIM1#

main62225-0K010-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main62225-0K020-E0iKUN40,TGN40..IND201201-201603

GREGE,TRIM4#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-0K010-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

LT.GRAY,TRIM1#

main62226-0K010-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main62226-0K020-E0iKUN40,TGN40..IND201201-201603

GREGE,TRIM4#

62313DTRIM, FRONT DOOR OPENING, RH

main62311-0K030iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main62311-0K080iKUN40..(DLX,GL)..IND201201-201212

main62311-0K081iKUN40..(DLX,GL)..IND201301-201603

main62313-0K020iTGN40..IND;KUN40..STD..IND201201-201603

62314DTRIM, FRONT DOOR OPENING, LH

main62312-0K030iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main62312-0K080iKUN40..(DLX,GL)..IND201201-201212

main62312-0K081iKUN40..(DLX,GL)..IND201301-201603

main62314-0K020iTGN40..IND;KUN40..STD..IND201201-201603

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0K030iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main62331-0K090iKUN40..(DLX,GL)..IND201201-201212

main62331-0K091iKUN40..(DLX,GL)..IND201301-201603

main62333-0K010iTGN40..IND;KUN40..STD..IND201201-201603

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0K030iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main62332-0K090iKUN40..(DLX,GL)..IND201201-201212

main62332-0K091iKUN40..(DLX,GL)..IND201301-201603

main62334-0K010iTGN40..IND;KUN40..STD..IND201201-201603

62411GARNISH, CENTER PILLAR, RH

main62411-0K040-B2iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

LT.GRAY,TRIM1#

main62411-0K040-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main62411-0K050-E0iKUN40,TGN40..IND201201-201406

GREGE,TRIM4#

main62411-0K051-E0iKUN40,TGN40..IND201407-201603

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62412-0K040-B2iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

LT.GRAY,TRIM1#

main62412-0K040-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main62412-0K050-E0iKUN40,TGN40..IND201201-201406

GREGE,TRIM4#

main62412-0K051-E0iKUN40,TGN40..IND201407-201603

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0K040-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main62413-0K040-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main62413-0K050-E0iKUN40,TGN40..IND201201-201501

GREGE,TRIM4#

main62413-0K050-E1iKUN40..IND201501-201603

ORK,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0K040-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main62414-0K040-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main62414-0K050-E0iKUN40,TGN40..IND201201-201501

GREGE,TRIM4#

main62414-0K050-E1iKUN40..IND201501-201603

ORK,TRIM4#

62421COVER, CENTER PILLAR GARNISH, RH

main62421-0K010-E0iKUN40,TGN40..LO201107-201510

GREGE,TRIM4#

62422COVER, CENTER PILLAR GARNISH, LH

main62422-0K010-E0iKUN40,TGN40..LO201107-201510

GREGE,TRIM4#

62471EGARNISH, ROOF SIDE, INNER UPPER RH

main62471-0K060-E0iKUN40,TGN40..IND201201-201603

GREGE,TRIM4#

main62471-0K070-B2iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main62471-0K070-E0supersedes 62471-0K050-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,SA,TH)201107-201611

GREGE,TRIM4#

62472EGARNISH, ROOF SIDE, INNER UPPER LH

main62472-0K060-E0iKUN40,TGN40..IND201201-201603

GREGE,TRIM4#

main62472-0K070-B2iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main62472-0K070-E0supersedes 62472-0K050-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,SA,TH)201107-201611

GREGE,TRIM4#

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-0K080-E0iKUN40,TGN40..(DLX,GL)..IND201201-201501

GREGE,TRIM4#

main62510-0K080-E1iKUN40..(DLX,GL)..IND201501-201603

ORK,TRIM4#

main62510-0K140-E0iKUN40..STD..IND201201-201501

GREGE,TRIM4#

main62510-0K140-E1iKUN40..STD..IND201501-201603

ORK,TRIM4#

main62510-0K210-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main62510-0K210-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..(DLX,GL,STD)..(IDN,MA,SA,TH)201107-201611

GREGE,TRIM4#

main62510-0K220-E0iTGN41..GCC201107-201510

GREGE,TRIM4#

main62510-0K230-E0supersedes 62510-0K240-E0iKUN40,TGN40..LO201107-201308

MULTI INFORMATION DISPLAY-CLOCK ONLY,GREGE,TRIM4#

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-0K070-E0iKUN40,TGN40..(DLX,GL)..IND201201-201501

GREGE,TRIM4#

main62520-0K070-E1iKUN40..(DLX,GL)..IND201501-201603

ORK,TRIM4#

main62520-0K110-E0iKUN40..STD..IND201201-201501

GREGE,TRIM4#

main62520-0K110-E1iKUN40..STD..IND201501-201603

ORK,TRIM4#

main62520-0K160-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main62520-0K160-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,SA,TH)201107-201611

GREGE,TRIM4#

main62520-0K170-E0supersedes 62520-0K180-E1iKUN40,TGN40..LO201408-201510

AIR CONDITIONER-COOLER DUAL,GREGE,TRIM4#

62638AGARNISH, QUARTER PILLAR, RH

main62638-0K050-B2iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main62638-0K050-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main62638-0K060-E0iKUN40,TGN40..IND201201-201603

GREGE,TRIM4#

62638BCLIP

main90467-T0021×6iKUN40,TGN4#201107-201611

62639AGARNISH, QUARTER PILLAR, LH

main62639-0K050-B2iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main62639-0K050-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main62639-0K060-E0iKUN40,TGN40..IND201201-201603

GREGE,TRIM4#

64230NET ASSY, ROOM PARTITION

main63650-0K010iKUN40,TGN40..DLX..IND201201-201603

AIR CONDITIONER-AIR CONDITIONER DUAL

64725HHOOK, QUARTER TRIM,

main64725-0K010-B1×2iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main64725-0K010-E0×2iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-T0003-B1×2iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main90467-T0003-E0×2iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main90467-T0036-E0×2iKUN40,TGN40..IND201301-201501

GREGE,TRIM4#

main90467-T0036-E2×2iKUN40..IND201501-201603

ORK,TRIM4#

64766COVER SUB-ASSY, QUARTER TRIM JACK

main64766-0K040-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main64766-0K040-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main64766-0K050-E0iKUN40,TGN40..IND201201-201501

GREGE,TRIM4#

main64766-0K050-E1iKUN40..IND201501-201603

ORK,TRIM4#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0K070-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main67913-0K070-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main67913-0K080-E0iKUN40,TGN40..IND201201-201501

GREGE,TRIM4#

main67913-0K080-E1iKUN40..IND201501-201603

ORK,TRIM4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0K070-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main67914-0K070-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main67914-0K080-E0iKUN40,TGN40..IND201201-201501

GREGE,TRIM4#

main67914-0K080-E1iKUN40..IND201501-201603

ORK,TRIM4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-0K070-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main67917-0K070-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main67917-0K080-E0iKUN40,TGN40..IND201201-201501

GREGE,TRIM4#

main67917-0K080-E1iKUN40..IND201501-201603

ORK,TRIM4#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-0K070-B1iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201611

MD.GRAY,TRIM1#

main67918-0K070-E0iKUN40,TGN40..LHD..(DLX,GL);KUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201611

GREGE,TRIM4#

main67918-0K080-E0iKUN40,TGN40..IND201201-201501

GREGE,TRIM4#

main67918-0K080-E1iKUN40..IND201501-201603

ORK,TRIM4#

67921ERETAINER, REAR DOOR SCUFF PLATE

main67921-71010×2iKUN40,TGN4#201107-201611

7151

9015060003

main90150-60003

9015960353

main90159-60353

9046706155

main90467-06155

9046709232

main90467-09232

9046710201

main90467-10201

90467T0021

main90467-T0021

41 parts on this diagram · 1 diagram in section
