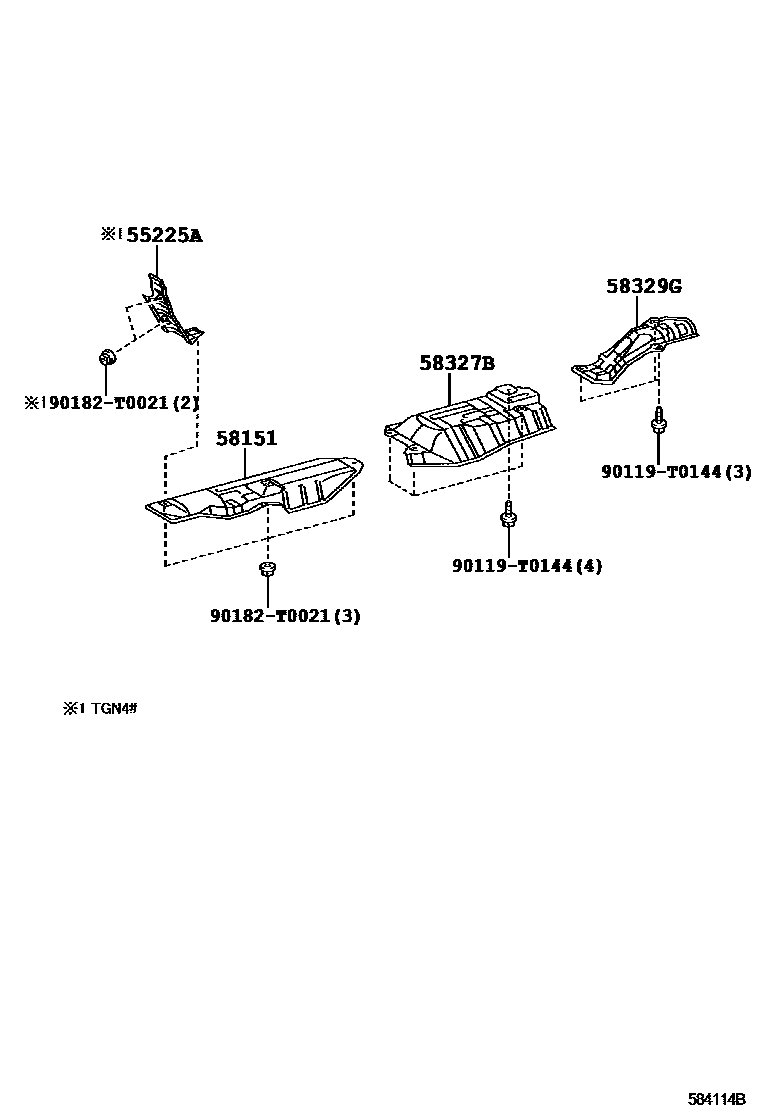

FLOOR INSULATOR

55225AINSULATOR, DASH PANEL HEAT, NO.1

main55225-0K010iTGN40..IND201201-201501

main55225-0K030iTGN40..MA,PHL,VN201107-201611

main55225-0K040iTGN4#..GCC,IDN,SA,TH201412-201510

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0K010iKUN40..PHL201107-201208

main58151-0K030iKUN40,TGN4#..GCC,IDN,SA,TH201203-201611

main58151-0K060iKUN40,TGN4#..GCC,IDN,SA,TH201412-201510

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K030iKUN40,TGN4#201107-201611

58329GINSULATOR, MAIN MUFFLER HEAT, REAR UPPER

main58329-0K010iKUN40,TGN4#..GCC,IDN,SA,TH201107-201510

main58329-0K020iKUN40,TGN40201412-201611

90119T0144

main90119-T0144

90182T0021

main90182-T0021

6 parts on this diagram · 1 diagram in section
