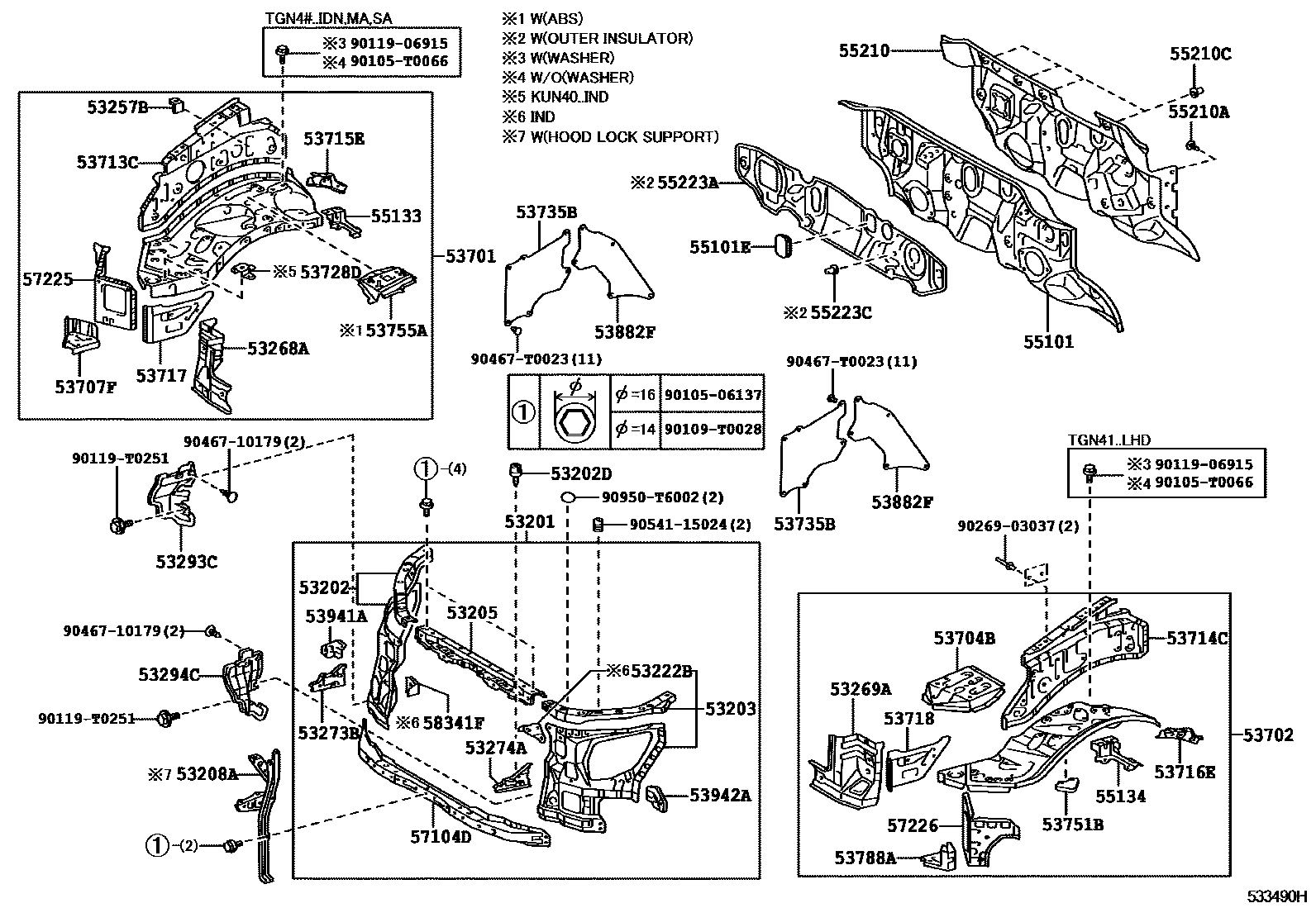

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0K120iTGN4#..SA,TH201107-201510

main53201-0K130iKUN40,TGN40..IDN,MA,PHL,VN201107-201611

main53201-0K150iTGN41..GCC201107-201510

main53201-0K200iKUN40..DLX..IND201401-201603

INDIA SPEC(EURO 3 REGULATION)&FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)

main53201-0K200iKUN40..DLX..IND201401-201603

INDIA SPEC(EURO 3 REGULATION)&FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)

main53201-0K200iKUN40..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)

main53201-0K210iKUN40,TGN40..IND201201-201603

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0K060iTGN4#..GCC,SA,TH201107-201510

main53202-0K070iKUN40,TGN40..IDN,MA,PHL,VN201107-201611

main53202-0K110iKUN40..GL..IND201401-201603

INDIA SPEC(EURO 3 REGULATION)&FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)

main53202-0K110iKUN40..GL..IND201401-201603

INDIA SPEC(EURO 3 REGULATION)&FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)

main53202-0K110iKUN40..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)

main53202-0K120iKUN40,TGN40..IND201201-201603

53202DCUSHION, RADIATOR SUPPORT

main53119-71010iKUN40,TGN4#201107-201611

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0K060iTGN4#..GCC,SA,TH201107-201510

main53203-0K070iKUN40,TGN40..IDN,MA,PHL,VN201107-201611

main53203-0K080iKUN40,TGN40..IND201201-201603

main53203-0K090iKUN40..DLX..IND201401-201603

INDIA SPEC(EURO 3 REGULATION)&FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)

main53203-0K090iKUN40..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)

main53203-0K090iKUN40..GL..IND201401-201603

INDIA SPEC(EURO 3 REGULATION)&FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0K010iKUN40,TGN4#..IDN,MA,PHL,SA,TH,VN201107-201611

main53205-0K010iKUN40..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)

main53205-0K010iKUN40..DLX..IND201401-201603

INDIA SPEC(EURO 3 REGULATION)&FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)

main53205-0K010iKUN40..DLX..IND201401-201603

INDIA SPEC(EURO 3 REGULATION)&FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)

main53205-0K040iTGN41..GCC201107-201510

main53205-0K050iKUN40,TGN40..IND201201-201603

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0K070iKUN40,TGN4#..IDN,MA,PHL,SA,TH,VN201107-201611

main53208-0K080iKUN40,TGN40..IND201201-201603

main53208-0K090iTGN41..GCC201107-201510

main53208-0K100iKUN40..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)

main53208-DX040iTGN40..4FC..DLX..VN;KUN40,TGN40..GL..(MA,PHL,VN)201403-201611

FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)

main53208-DX040iKUN40,TGN40..STD..IDN201403-201611

FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)

main53208-DX050iTGN41..4FC..GL201408-201510

FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)

53222BBRACE, RADIATOR SUPPORT APRON, LH

main53222-0K010iKUN40,TGN40..IND201201-201603

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iKUN40,TGN4#201107-201611

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main53268-0K020iKUN40,TGN40..IND201201-201603

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main53269-0K020iKUN40,TGN40..IND201201-201603

53273BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, RH

main53273-0K020iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main53273-0K030iKUN40..GL..IND201401-201603

INDIA SPEC(EURO 3 REGULATION)&FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)

main53273-0K030iKUN40..GL..IND201401-201603

INDIA SPEC(EURO 3 REGULATION)&FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)

main53273-0K030iKUN40..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)

main53273-0K040iKUN40,TGN40..IND201201-201603

53274AREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-0K020iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main53274-0K030iKUN40,TGN40..IND201201-201603

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-0K110iKUN40,TGN40..IND201201-201603

main53293-0K120iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main53293-DX010iTGN40..4FC..DLX..VN;KUN40,TGN40..GL..(MA,PHL,VN)201403-201611

FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)

main53293-DX010iTGN40..4FC..DLX..VN;KUN40,TGN40..GL..(MA,PHL,VN)201403-201611

FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-0K110iKUN40,TGN40..IND201201-201603

main53294-0K120iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main53294-DX010iTGN40..4FC..DLX..VN;KUN40,TGN40..GL..(MA,PHL,VN)201403-201611

FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)

main53294-DX010iTGN40..5F..DLX..VN;KUN40,TGN40..DLX..PHL201403-201611

FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0K081iKUN40..(DLX,LO,STD)..IDN201107-201510

main53701-0K081iKUN40..(DLX,STD)..IDN201107-201308

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main53701-0K091iTGN4#..(DLX,GL)..(SA,TH)201107-201510

main53701-0K101iTGN40..(DLX,LO,STD)..IDN201107-201510

main53701-0K101iTGN40..5F..STD..IDN201107-201308

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main53701-0K111iKUN40..(DLX,LO,STD)..IDN201308-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main53701-0K111iKUN40..(DLX,LO,STD)..IDN201107-201308

main53701-0K121iTGN41..GCC201107-201510

main53701-0K121iTGN40..STD..TH201308-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main53701-0K131iTGN40..(DLX,LO,STD)..IDN201308-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main53701-0K131iTGN40..(DLX,LO,STD)..IDN201107-201308

main53701-0K141iKUN40..(DLX,STD)..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)

main53701-0K151iTGN40..DLX..IND201201-201501

main53701-0K161iTGN40..DLX..IND201201-201501

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53701-0K171iKUN40..DLX..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53701-0K171iKUN40..DLX..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)

main53701-0K250iKUN40..(DLX,STD)..IND201201-201603

main53701-0K260iKUN40..GL..IND201201-201603

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53701-0K270iTGN40..MA201110-201601

main53701-0K280iKUN40..PHL201202-201603

sub53701-0K111

main53701-0K290iTGN40..LHD201202-201611

sub53701-0K131

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0K050iTGN4#..SA,TH201107-201108

sub53702-0K051

main53702-0K051iTGN4#..SA,TH201108-201510

main53702-0K060iKUN40,TGN40..IDN201107-201108

sub53702-0K061

main53702-0K061iKUN40,TGN40..IDN,MA201108-201601

main53702-0K061iTGN40..STD..VN201402-201611

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main53702-0K070iTGN41..GCC201107-201108

sub53702-0K071

sub44590-0K011

sub90182-T0018

main53702-0K071iTGN41..GCC201108-201510

main53702-0K081iKUN40,TGN40..LHD..(DLX,GL)201202-201611

sub53702-0K071

main53702-0K090iKUN40..IND201201-201603

main53702-0K120iTGN40..IND201201-201501

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main53704-0K030iKUN40,TGN40..IND201201-201603

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-0K010iKUN40,TGN4#201107-201611

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-0K020iTGN4#..GCC,SA,TH201107-201510

main53713-0K030iKUN40,TGN40..IDN,MA,PHL,VN201107-201611

main53713-0K050iKUN40,TGN40..IND201201-201603

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-0K020iTGN4#..GCC,SA,TH201107-201510

main53714-0K030iKUN40,TGN40..IDN,MA,PHL,VN201107-201611

main53714-0K040iKUN40,TGN40..IND201201-201603

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K010iTGN40..IDN,MA,TH;KUN40,TGN41..GCC,IDN,PHL,SA201107-201603

main53715-0K020iKUN40,TGN40..IND201201-201603

main53715-0K040iTGN40..VN201202-201611

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K010iKUN40,TGN40..IDN,MA201107-201603

main53716-0K010iKUN40,TGN40..STD..PHL201402-201603

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main53716-0K020iKUN40,TGN40..IND201201-201603

main53716-0K040iTGN40..(DLX,GL)..VN201202-201611

main53716-0K040iTGN40..STD..VN201403-201611

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

53717PLATE, FENDER APRON, RH

main53717-0K010iKUN40,TGN4#201107-201611

53718PLATE, FENDER APRON, LH

main53718-0K010iKUN40,TGN4#201107-201611

53728DBRACKET, FENDER APRON, RH

main53728-0K010iKUN40..IND201201-201603

53735BSEAL, FRONT FENDER APRON, UPPER

main53735-0K010iKUN40,TGN40..IND,PHL,VN201201-201611

main53735-0K030iKUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201601

53751BBRACKET, CHARCOAL CANISTER MOUNTING

main53751-0K010iKUN40,TGN4#201107-201611

53755AREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1

main53755-0K010iTGN40..5F..STD..IDN201107-201308

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main53755-0K010iTGN40..DLX..(MA,TH);KUN40,TGN4#..RHD..GL201107-201603

main53755-0K010iKUN40,TGN40..DLX..IND201201-201603

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53755-0K010iKUN40,TGN40..DLX..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53708-0K010iKUN40,TGN4#201107-201611

53882FSEAL, FRONT FENDER

main53885-0K010iKUN40,TGN40..IND,PHL,VN201201-201611

main53885-0K030iKUN40,TGN4#..GCC,IDN,MA,SA,TH201107-201601

53941ABRACKET, FRONT END PANEL, NO.1 RH

main53941-0K040iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main53941-0K050iKUN40,TGN40..IND201201-201603

53942ABRACKET, FRONT END PANEL, NO.1 LH

main53942-0K030iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main53942-0K040iKUN40,TGN40..IND201201-201603

55101PANEL SUB-ASSY, DASH

main55101-0K050iKUN40,TGN4#..5F..(DLX,GL,STD)..(IDN,MA,SA,TH)201107-201601

main55101-0K060iKUN40,TGN40..RHD..4FC201107-201601

main55101-0K070iKUN40..IND201201-201603

main55101-0K080iKUN40,TGN4#..LHD..5F201107-201408

main55101-0K090iKUN40,TGN4#..LHD..4FC201107-201408

sub55101-0K200

main55101-0K130iKUN40,TGN4#..LHD..5F201409-201611

main55101-0K150iKUN40,TGN40..LO201107-201510

main55101-0K180iTGN40..IND201201-201501

main55101-0K200iKUN40,TGN4#..LHD..4FC201409-201611

55101EGROMMET, DASH PANEL, NO.2

main87128-0K010iKUN40,TGN40..IND,VN201201-201611

main87128-0K020iTGN41201107-201510

main87128-0K060iTGN40..MA201110-201601

main87128-0K070iKUN40,TGN40..IDN,TH201107-201510

main87128-0K090iKUN40,TGN40..PHL201202-201603

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-0K010iTGN40..DLX..IND201201-201501

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main55133-0K010iKUN40,TGN41;TGN40..GL..IND;TGN40..IDN,MA,PHL,TH,VN201107-201611

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-0K010iKUN40,TGN4#201107-201611

55210INSULATOR ASSY, DASH PANEL

main55210-0K050iKUN40,TGN40..(DLX,GL,STD)..(IDN,MA,TH)201107-201601

main55210-0K060iKUN40,TGN4#..LHD201107-201611

main55210-0K070iTGN40..IND201201-201501

sub55210-0K130

main55210-0K070iKUN40..(DLX,GL)..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)

sub55210-0K130

main55210-0K100iKUN40..(DLX,GL)..IND201201-201603

main55210-0K110iTGN41..SA201107-201510

main55210-0K130iKUN40..STD..IND201201-201305

sub55210-0K140

sub90467-06197

main55210-0K140iKUN40..STD..IND201305-201603

55210ACLIP

main90467-T0004-A0iKUN40,TGN40..DLX,GL,STD201110-201611

IVORY

main90467-T0004-E1iKUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,PHL,SA,TH,VN)201107-201611

SAND BEIGE

55210CCLIP

main90467-06197iKUN40..(DLX,GL)..IND201201-201603

main90467-T0032iKUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,PHL,SA,TH,VN)201107-201611

55223AINSULATOR, DASH PANEL, OUTER

main55223-0K010iKUN40..RHD201107-201603

main55223-0K020iKUN40..PHL201202-201603

55223CCLIP

main90467-T0032iKUN40..PHL201107-201603

57104DMEMBER SUB-ASSY, FRONT CROSS

main57161-0K030iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main57161-0K050iKUN40,TGN40..IND201201-201307

main57161-0K060iKUN40,TGN40..IND201307-201603

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-0K010iKUN40,TGN4#201107-201611

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-0K010iKUN40,TGN4#201107-201611

58341FBRACKET, INTERCOOLER MOUNTING

main58341-0K010iKUN40,TGN40..IND201201-201603

9010506137

main90105-06137

90105T0066

main90105-T0066

90109T0028

main90109-T0028

9011906915

main90119-06915

90119T0251

main90119-T0251

9026903037

main90269-03037

9046710179

main90467-10179

90467T0023

main90467-T0023

9054115024

main90541-15024

90950T6002

main90950-T6002

55 parts on this diagram · 1 diagram in section
