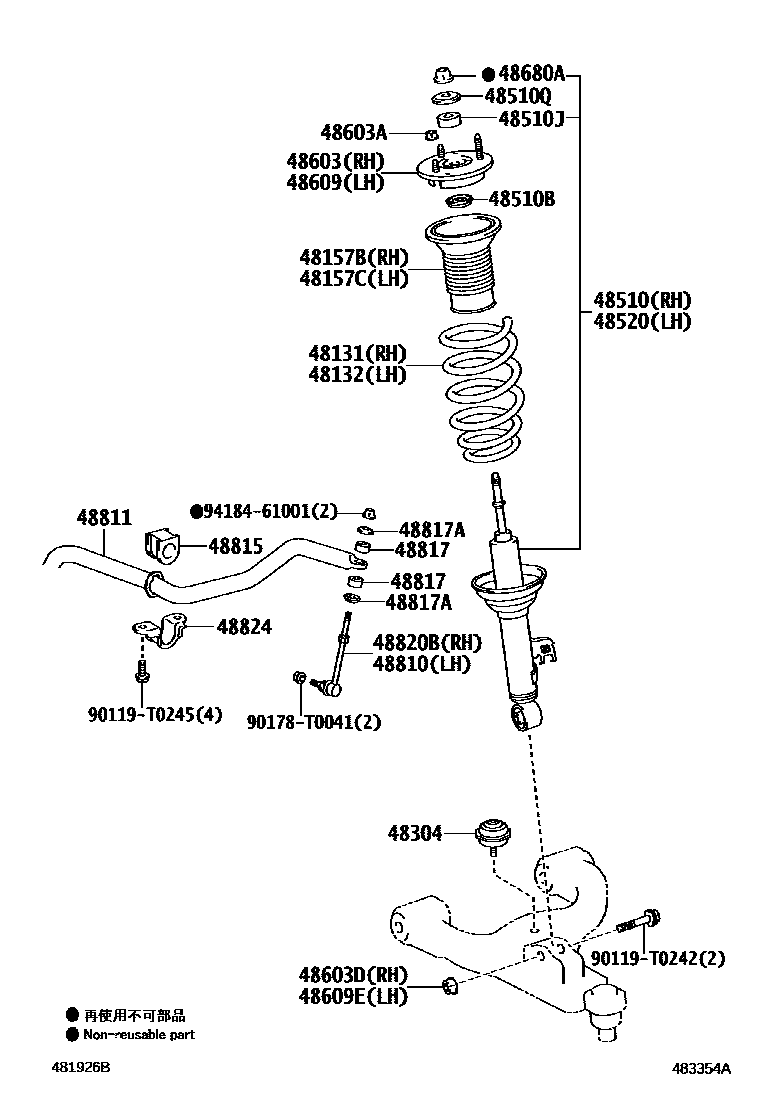

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0K161iKUN40..IDN,PHL201107-201603

main48131-0K610iTGN40..MA201110-201601

main48131-0K741iTGN4#..GCC,IDN,PHL,SA,TH,VN201107-201611

main48131-0KD80iTGN40..IND201201-201501

main48131-0KQ50supersedes 48131-0KD90iKUN40..IND201403-201603

INDIA SPEC(EURO 3 REGULATION)

48132SPRING, FRONT COIL, LH

main48131-0K161iKUN40..IDN,PHL201107-201603

main48131-0K610iTGN40..MA201110-201601

main48131-0K741iTGN4#..GCC,IDN,PHL,SA,TH,VN201107-201611

main48131-0KD80iTGN40..IND201201-201501

main48131-0KQ50supersedes 48131-0KD90iKUN40..IND201403-201603

INDIA SPEC(EURO 3 REGULATION)

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-0K010iKUN40,TGN40..MA,PHL,VN201110-201611

main48157-0K020iKUN40,TGN4#..GCC,IDN,SA,TH201107-201510

sub48157-0K060

main48157-0K030iKUN40,TGN40..IND201201-201301

main48157-0K050iKUN40,TGN40..IND201302-201603

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-0K010iKUN40,TGN40..MA,PHL,VN201110-201611

main48157-0K020iKUN40,TGN4#..GCC,IDN,SA,TH201107-201510

sub48157-0K060

main48157-0K030iKUN40,TGN40..IND201201-201301

main48157-0K050iKUN40,TGN40..IND201302-201603

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-0K010×2iKUN40,TGN40..MA,PHL,VN201110-201611

main48304-0K020×2iKUN40,TGN4#..GCC,IDN,SA,TH201107-201408

main48304-0K030×2iKUN40,TGN40..IND201201-201301

main48304-0K070×2iKUN40,TGN40..IND201302-201603

main48304-0K130×2iKUN40,TGN4#..GCC,IDN,SA,TH201409-201510

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09L00iTGN40..MA201110-201601

MARK 48510-0K310

main48510-09X70iTGN41;KUN40,TGN40..DLX..(PHL,TH,VN);KUN40,TGN40..GL..(IDN,PHL,TH,VN)201107-201611

MARK 48510-0K451

main48510-8Z023iKUN40,TGN40..IND201201-201603

MARK 48510-0K092

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-T2003×2iKUN40,TGN4#201107-201611

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-T1001×2iKUN40,TGN4#201107-201611

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-T2004×2iKUN40,TGN4#201107-201611

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09C80iTGN40..MA201110-201601

MARK 48520-0K110

main48520-09Q70iTGN41;KUN40,TGN40..DLX..(PHL,TH,VN);KUN40,TGN40..GL..(IDN,PHL,TH,VN)201107-201611

MARK 48520-0K451

main48520-09U80iKUN40,TGN40..IND201201-201603

MARK 48520-0K092

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0K010iKUN40,TGN40..MA,PHL,VN201110-201611

main48609-0K020iKUN40,TGN4#..GCC,IDN,SA,TH201107-201510

sub48609-0K140

main48609-0K030iKUN40,TGN40..IND201201-201301

main48609-0K090iKUN40,TGN40..IND201302-201603

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-T0050×6iKUN40,TGN4#201107-201611

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0048iKUN40,TGN4#201107-201611

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0K010iKUN40,TGN40..MA,PHL,VN201110-201611

main48609-0K020iKUN40,TGN4#..GCC,IDN,SA,TH201107-201510

sub48609-0K140

main48609-0K030iKUN40,TGN40..IND201201-201301

main48609-0K090iKUN40,TGN40..IND201302-201603

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0048iKUN40,TGN4#201107-201611

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-T0015×2iKUN40,TGN40..IND201407-201603

main94188-01241×2iKUN40,TGN40..MA,PHL,VN201405-201611

(J)

48810LINK ASSY, FRONT STABILIZER, LH

main48820-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main48820-0K020iKUN40,TGN40..IND201201-201603

sub48820-0K021

48811BAR, STABILIZER, FRONT

main48811-0K030iTGN40..MA,PHL,TH,VN;KUN40,TGN41..GCC,IDN,PHL,SA201107-201611

main48811-0K120iTGN40..IDN201107-201510

main48811-0K130iKUN40,TGN40..IND201201-201603

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0K020×2iTGN40..MA,PHL,TH,VN;KUN40,TGN41..GCC,IDN,PHL,SA201107-201408

main48815-0K030×2iKUN40,TGN40..IND201201-201301

main48815-0K060×2iTGN40..IDN201107-201510

main48815-0K080×2iKUN40,TGN40..IND201302-201603

main48815-0K130×2iTGN40..MA,PHL,TH,VN;KUN40,TGN41..GCC,IDN,PHL,SA201409-201611

48817CUSHION, FRONT STABILIZER

main90948-T1002×4iKUN40,TGN4#201107-201611

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-T2002×4iKUN40,TGN4#201107-201611

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main48820-0K020iKUN40,TGN40..IND201201-201603

sub48820-0K021

48824BRACKET, STABILIZER, FRONT

main48824-0K010×2iKUN40,TGN4#201107-201611

90119T0242

main90119-T0242

90119T0245

main90119-T0245

90178T0041

main90178-T0041

9418461001

main94184-61001

27 parts on this diagram · 1 diagram in section
