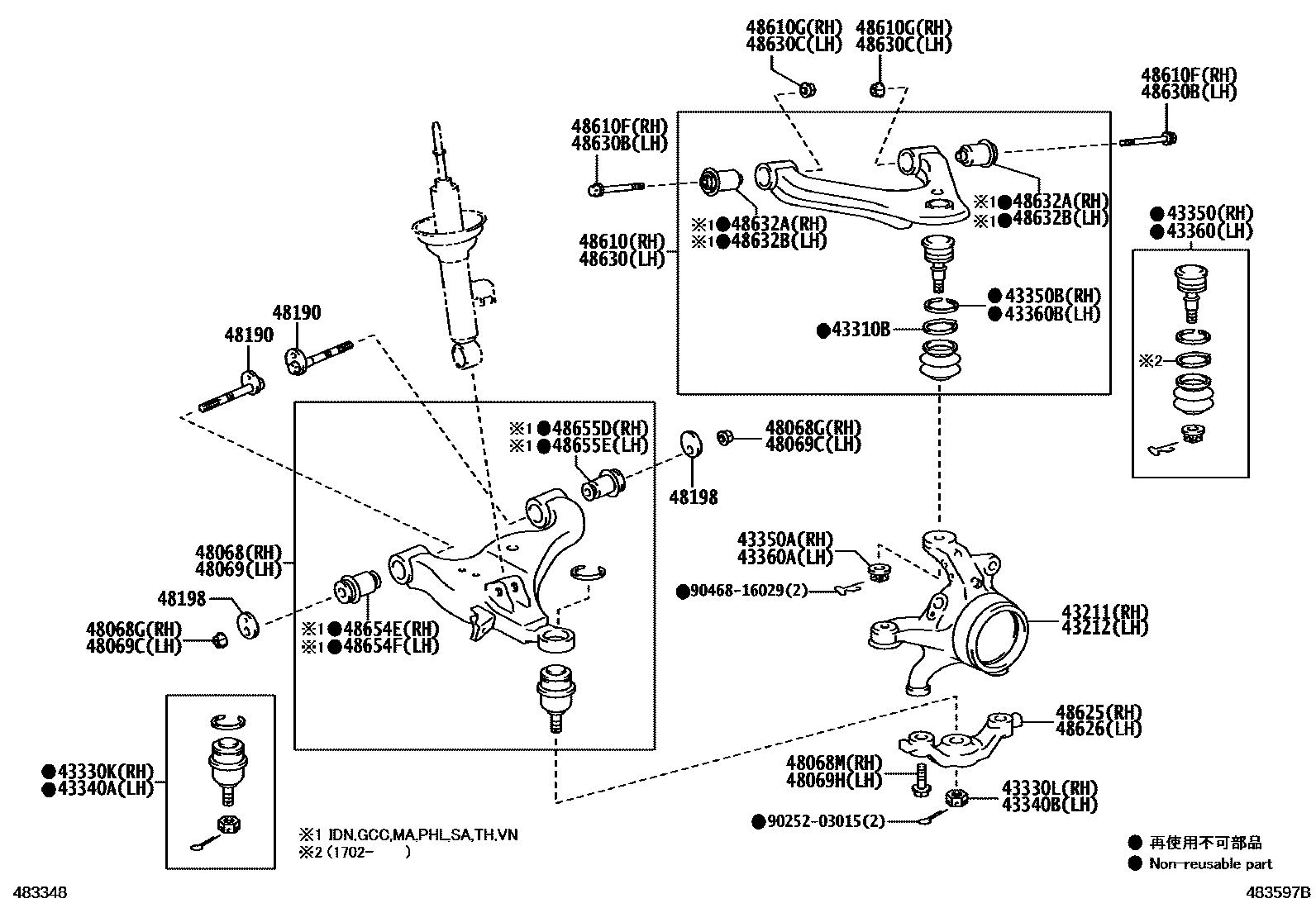

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-0K010iKUN40,TGN40..DLX..IND201201-201603

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main43211-0K010iTGN40..DLX..IDN;TGN40..RHD..(LO,STD);KUN40..(DLX,LO,STD)..IDN201107-201603

main43211-0K010iTGN40..5F..DLX..IDN;KUN40..(DLX,STD)..IDN;TGN40..4FC..(DLX,STD)..IDN201107-201308

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main43211-0K020iTGN40..DLX..IDN;TGN40..RHD..(LO,STD);KUN40..(DLX,LO,STD)..IDN201308-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main43211-0K020iTGN40..DLX..IDN;TGN40..RHD..(LO,STD);KUN40..(DLX,LO,STD)..IDN201107-201603

main43211-0K070iKUN40,TGN40..(DLX,GL)..(MA,PHL,VN)201110-201611

main43211-0K080iKUN40,TGN40..STD..PHL201202-201308

main43211-0K080iKUN40,TGN40..STD..PHL201308-201611

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

43212KNUCKLE, STEERING, LH

main43212-0K010iTGN40..5F..STD..IDN201107-201308

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main43212-0K010iTGN40..DLX..IDN;TGN40..RHD..(LO,STD);KUN40..(DLX,LO,STD)..IDN201107-201603

main43212-0K010iKUN40,TGN40..DLX..IND201201-201603

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main43212-0K020iTGN40..DLX..IDN;TGN40..RHD..(LO,STD);KUN40..(DLX,LO,STD)..IDN201107-201603

main43212-0K020iTGN40..DLX..IDN;TGN40..RHD..(LO,STD);KUN40..(DLX,LO,STD)..IDN201308-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main43212-0K070iTGN40..STD..VN201110-201611

main43212-0K080iTGN40..STD..VN201308-201611

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main43212-0K080iTGN40..STD..VN201202-201308

43310BRING, SET (FOR DUST COVER)

main90580-10001iKUN40,TGN4#201107-201611

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09500iKUN40,TGN40..IND201201-201603

main43330-09510iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-T0003iKUN40,TGN4#201107-201611

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09500iKUN40,TGN40..IND201201-201603

main43330-09510iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-T0003iKUN40,TGN4#201107-201611

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-09015iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

sub43310-09017

main43310-09040iKUN40,TGN40..IND201201-201603

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-T0001iKUN40,TGN4#201107-201611

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-T0029iKUN40,TGN4#201107-201611

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-09015iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

sub43310-09017

main43310-09040iKUN40,TGN40..IND201201-201603

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-T0001iKUN40,TGN4#201107-201611

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-T0029iKUN40,TGN4#201107-201611

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0K010iKUN40,TGN40..MA,PHL,VN201110-201611

main48068-0K030iKUN40,TGN40..IND201201-201603

main48068-0K080iKUN40,TGN4#..GCC,IDN,SA,TH201107-201510

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-T0073iKUN40,TGN4#201107-201611

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-16053iKUN40,TGN4#201107-201405

main90105-16053iKUN40,TGN4#..GCC,IDN,MA,SA,TH201405-201601

(J)

main90105-T0305iKUN40,TGN4#..GCC,IDN,IND,MA,SA,TH201405-201603

(L)

main90105-T0305iKUN40..PHL;TGN40..IND,PHL,VN201405-201611

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0K010iKUN40,TGN40..MA,PHL,VN201110-201611

main48069-0K030iKUN40,TGN40..IND201201-201603

main48069-0K080iKUN40,TGN4#..GCC,IDN,SA,TH201107-201510

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-T0073iKUN40,TGN4#201107-201611

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-16053iKUN40,TGN4#201107-201405

main90105-16053iKUN40,TGN4#..GCC,IDN,IND,MA,SA,TH201405-201603

(J)

main90105-T0305iKUN40,TGN4#..GCC,IDN,IND,MA,SA,TH201405-201603

(L)

main90105-T0305iKUN40..PHL;TGN40..IND,PHL,VN201405-201611

48190CAM ASSY, CAMBER ADJUST

main48190-0K020iKUN40,TGN4#201107-201611

48198CAM, CAMBER ADJUST, NO.2

main48198-0K020iKUN40,TGN4#201107-201611

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-0K010iKUN40,TGN40..MA,PHL,VN201110-201611

main48610-0K020iKUN40,TGN4#..GCC,IDN,SA,TH201107-201510

main48610-0K030iKUN40,TGN40..IND201201-201603

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90119-T0348iKUN40,TGN4#201107-201611

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90178-T0047iKUN40,TGN4#201107-201611

48625ATTACHMENT, FRONT LOWER BALL JOINT, RH

main48625-0K011iKUN40,TGN4#201107-201611

sub48625-0K050

48626ATTACHMENT, FRONT LOWER BALL JOINT, LH

main48626-0K011iKUN40,TGN4#201107-201611

sub48626-0K050

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-0K010iKUN40,TGN40..MA,PHL,VN201110-201611

main48630-0K020iKUN40,TGN4#..GCC,IDN,SA,TH201107-201510

main48630-0K030iKUN40,TGN40..IND201201-201603

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90119-T0348iKUN40,TGN4#201107-201611

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90178-T0047iKUN40,TGN4#201107-201611

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-0K010iKUN40,TGN40..MA,PHL,VN201110-201611

main48632-0K020iKUN40,TGN4#..GCC,IDN,SA,TH201107-201408

sub48632-0K130

main48632-0K130iKUN40,TGN4#..GCC,IDN,SA,TH201409-201510

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-0K010iKUN40,TGN40..MA,PHL,VN201110-201611

main48632-0K020iKUN40,TGN4#..GCC,IDN,SA,TH201107-201408

sub48632-0K130

main48632-0K130iKUN40,TGN4#..GCC,IDN,SA,TH201409-201510

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-0K010iKUN40,TGN40..MA,PHL,VN201110-201611

main48654-0K060iKUN40,TGN4#..GCC,IDN,SA,TH201107-201408

sub48654-0K120

main48654-0K120iKUN40,TGN4#..GCC,IDN,SA,TH201409-201510

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-0K010iKUN40,TGN40..MA,PHL,VN201110-201611

main48654-0K060iKUN40,TGN4#..GCC,IDN,SA,TH201107-201408

sub48654-0K120

main48654-0K120iKUN40,TGN4#..GCC,IDN,SA,TH201409-201510

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-0K010iKUN40,TGN40..MA,PHL,VN201110-201611

main48655-0K060iKUN40,TGN4#..GCC,IDN,SA,TH201107-201408

sub48655-0K120

main48655-0K120iKUN40,TGN4#..GCC,IDN,SA,TH201409-201510

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-0K010iKUN40,TGN40..MA,PHL,VN201110-201611

main48655-0K060iKUN40,TGN4#..GCC,IDN,SA,TH201107-201408

sub48655-0K120

main48655-0K120iKUN40,TGN4#..GCC,IDN,SA,TH201409-201510

9025203015

main90252-03015

9046816029

main90468-16029

37 parts on this diagram · 1 diagram in section
