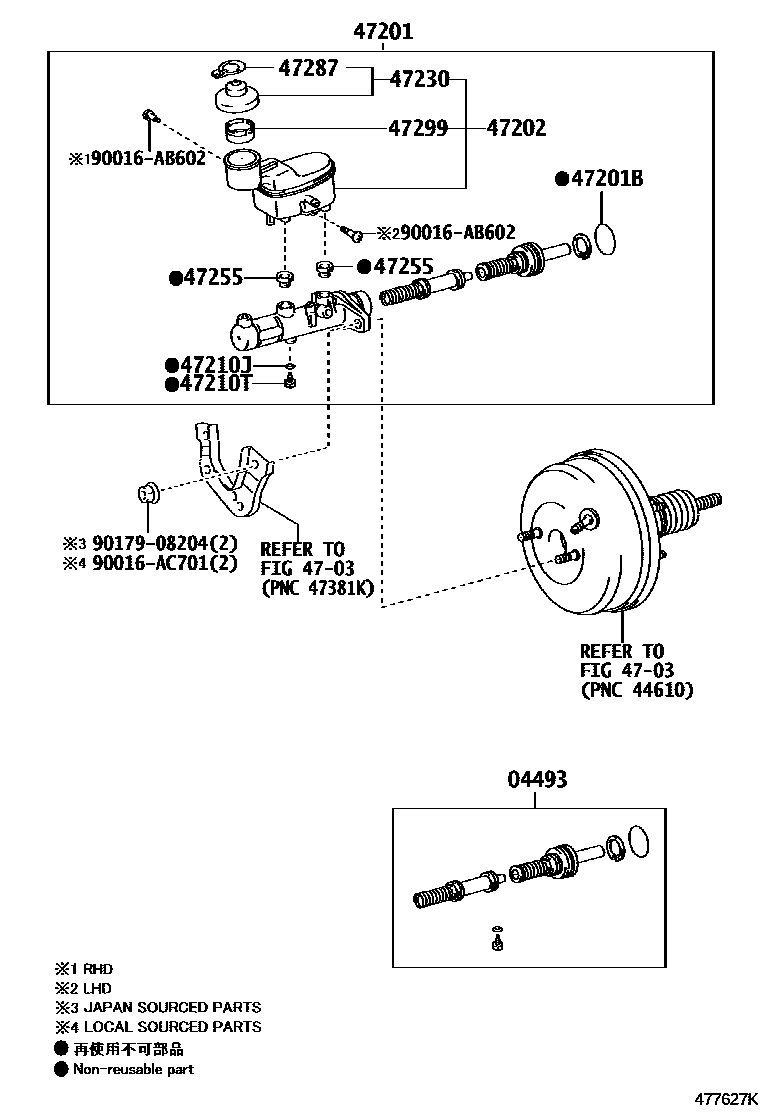

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-0K010iTGN40..5F..MA201107-201512

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09220iKUN40,TGN40..IND201201-201603

main47201-0K010iKUN40,TGN40..RHD..4FC201107-201601

main47201-0K020iKUN40,TGN4#..5F..(IDN,MA,SA,TH)201107-201512

main47201-0K030iKUN40,TGN4#..LHD..4FC201107-201611

main47201-0K040iKUN40,TGN4#..LHD..5F201107-201611

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH901iTGN40..5F..MA201107-201512

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09080iKUN40,TGN40..IND201201-201603

main47220-0K010iKUN40,TGN4#..4FC201107-201611

main47220-0K020iTGN40..5F..MA201107-201512

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iTGN40..5F..MA201107-201512

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iTGN40..5F..MA201107-201512

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iTGN40..5F..MA201508-201512

main47230-0K010iKUN40,TGN40..IND201107-201603

main47230-0K011iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201502-201508

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2iTGN40..5F..MA201107-201512

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iTGN40..5F..MA201508-201512

main47287-20010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201508

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0K010iTGN40..5F..MA201107-201512

90016AB602

main90016-AB602

90016AC701

main90016-AC701

9017908204

main90179-08204

14 parts on this diagram · 2 diagrams in section
