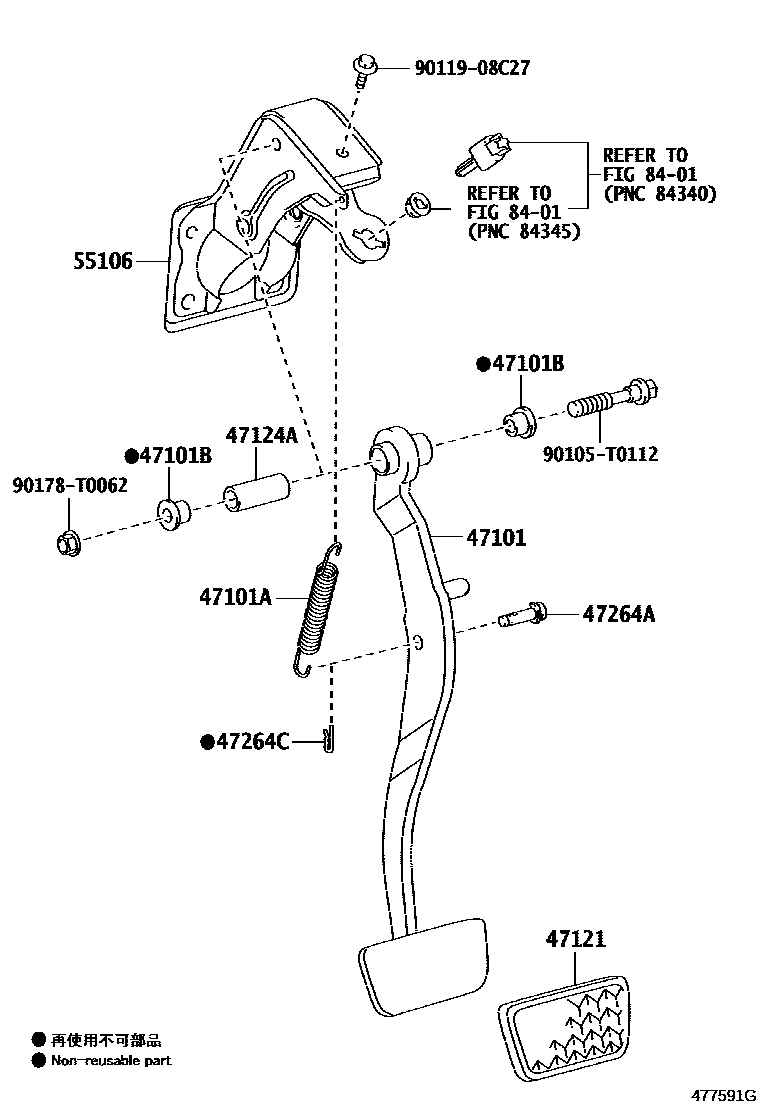

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-0K010iKUN40,TGN4#..5F..(IDN,MA,SA,TH)201107-201601

main47101-0K020iKUN40,TGN40..5F..PHL201107-201502

main47101-0K060iKUN40,TGN40..RHD..4FC201107-201601

main47101-0K070iTGN40..4FC..VN201202-201408

sub47101-0K350

main47101-0K080iKUN40,TGN4#..4FC..(GCC,PHL)201107-201408

main47101-0K210iKUN40,TGN40..IND201210-201603

main47101-0K340iKUN40,TGN40..5F..PHL201408-201611

main47101-0K350iTGN40..4FC..VN201408-201611

main47101-0K410iKUN40,TGN4#..4FC..(GCC,PHL)201408-201603

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iKUN40,TGN4#201107-201611

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iKUN40,TGN4#201107-201611

47121PAD, BRAKE PEDAL

main31321-02010iKUN40,TGN40..5F..PHL201202-201603

main31321-52010iKUN40,TGN4#..5F..(GCC,IDN,IND,MA,SA,TH,VN)201107-201611

main47121-52010iKUN40,TGN4#..4FC201107-201611

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iKUN40,TGN4#201107-201611

47264APIN(FOR PUSH ROD)

main47148-35010iKUN40,TGN4#201107-201611

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iKUN40,TGN40..IND201107-201611

main90468-16142iKUN40,TGN40..IND201210-201603

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0K011iKUN40,TGN4#201107-201611

8401

90105T0112

main90105-T0112

9011908C27

main90119-08C27

90178T0062

main90178-T0062

12 parts on this diagram · 1 diagram in section
