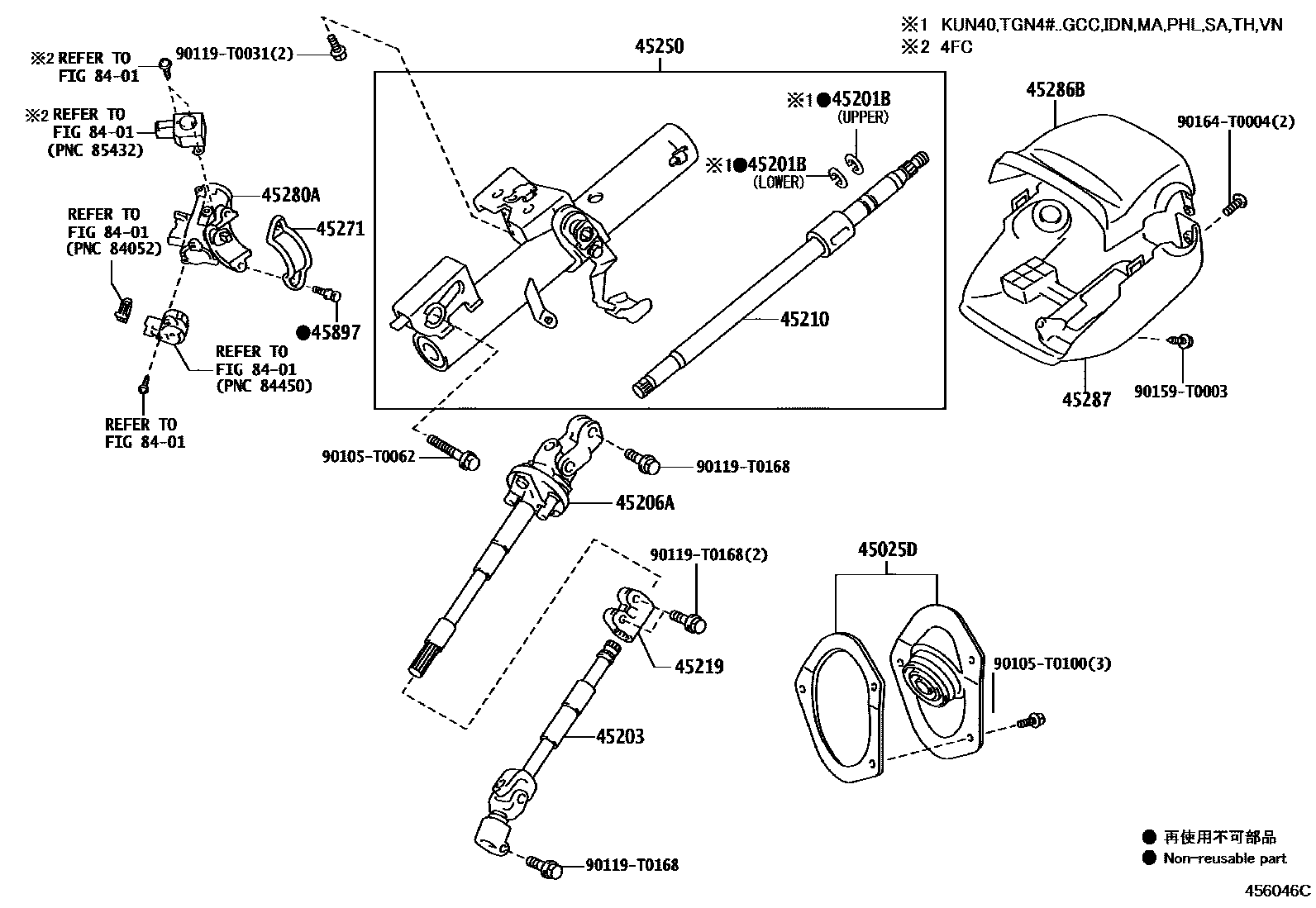

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0K010iKUN40,TGN4#..IDN,MA,SA,TH201107-201601

main45025-0K020iKUN40,TGN4#..LHD201107-201611

main45025-0K030iKUN40,TGN40..IND201201-201603

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

T=1.20,LOWER

main90520-17269iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

T=1.20,UPPER

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-0K080iKUN40,TGN4#..IDN,MA,SA,TH201107-201601

main45203-0K090iKUN40,TGN4#..LHD201107-201611

main45203-0K120supersedes 45203-0K140iKUN40,TGN40..(DLX,GL)..IND201201-201603

45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING

main45206-0K051iKUN40,TGN40..IND201201-201307

main45206-0K052iKUN40,TGN40..IND201308-201603

main45206-0K060iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

45210SHAFT ASSY, STEERING MAIN

main45210-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main45210-0K020iKUN40,TGN40..IND201201-201603

45219YOKE, STEERING SLIDING

main45219-0K090iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main45219-0K100iKUN40,TGN40..IND201201-201603

45250COLUMN ASSY, STEERING

main45250-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main45250-0K020iKUN40,TGN40..IND201201-201603

45271CLAMP, STEERING COLUMN, UPPER

main45271-0K010iKUN40,TGN4#..GCC,IDN,SA,TH201107-201212

main45271-0K040iKUN40,TGN4#..GCC,IDN,SA,TH201212-201510

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-0K010iKUN40,TGN40..STD..PHL201107-201502

main45280-0K020iKUN40,TGN40..STD..PHL201502-201611

main45280-0K030iKUN40,TGN4#..4FC..(GCC,IDN,TH)201107-201212

main45280-0K100supersedes 45280-0K090iKUN40,TGN4#..5F..(DLX,GL,STD)..(GCC,IDN,SA,TH)201212-201510

main45280-0K110iKUN40,TGN4#..4FC..(GCC,IDN,TH)201212-201510

45286BCOVER, STEERING COLUMN, UPR

main45286-0K010-E1iTGN40..MA201110-201601

ASH BROWN,TRIM4#

main45286-0K020-B0iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201308

DK.GRAY,TRIM1#

main45286-0K020-C0iTGN40..STD..VN201308-201403

BLACK,TRIM1#

main45286-0K020-E1iTGN40..(DLX,GL)..VN;KUN40,TGN40..GL..PHL;KUN40,TGN4#..GCC,IDN,SA,TH201107-201611

ASH BROWN,TRIM4#

main45286-0K030-C0iKUN40,TGN40..IND201401-201501

BLACK,TRIM42

main45286-0K030-E1iKUN40,TGN40..IND201201-201401

ASH BROWN,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-0K010-E1iTGN40..MA201110-201309

ASH BROWN,TRIM4#

main45287-0K020-B0iTGN40..4FC..DLX..PHL;KUN40..(DLX,STD)..PHL;TGN40..LHD..5F..(DLX,STD)201202-201308

DK.GRAY,TRIM1#

main45287-0K020-C0iKUN40,TGN40..(DLX,STD)..PHL201308-201402

BLACK,TRIM1#

main45287-0K020-E1iTGN40..(DLX,GL)..VN201107-201403

ASH BROWN,TRIM4#

main45287-0K030-C0iKUN40,TGN40..IND201401-201501

BLACK,TRIM42

main45287-0K030-E1iKUN40,TGN40..IND201201-201401

ASH BROWN,TRIM4#

main45287-0K040-E0iTGN40..MA201309-201601

ASH BROWN,TRIM4#

main45287-0K090-B0iKUN40,TGN40..(DLX,STD)..PHL201402-201611

DK.GRAY,TRIM10

main45287-0K090-C0iTGN40..STD..VN201403-201611

BLACK,TRIM10

main45287-0K090-E0iKUN40,TGN40..IDN,TH201308-201611

ASH BROWN,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-0K010×2iKUN40,TGN4#..GCC,IDN,SA,TH201107-201212

main45897-0K020×2iKUN40,TGN4#..GCC,IDN,SA,TH201212-201510

8401

90105T0062

main90105-T0062

90105T0100

main90105-T0100

90119T0031

main90119-T0031

90119T0168

main90119-T0168

90159T0003

main90159-T0003

90164T0004

main90164-T0004

19 parts on this diagram · 1 diagram in section
