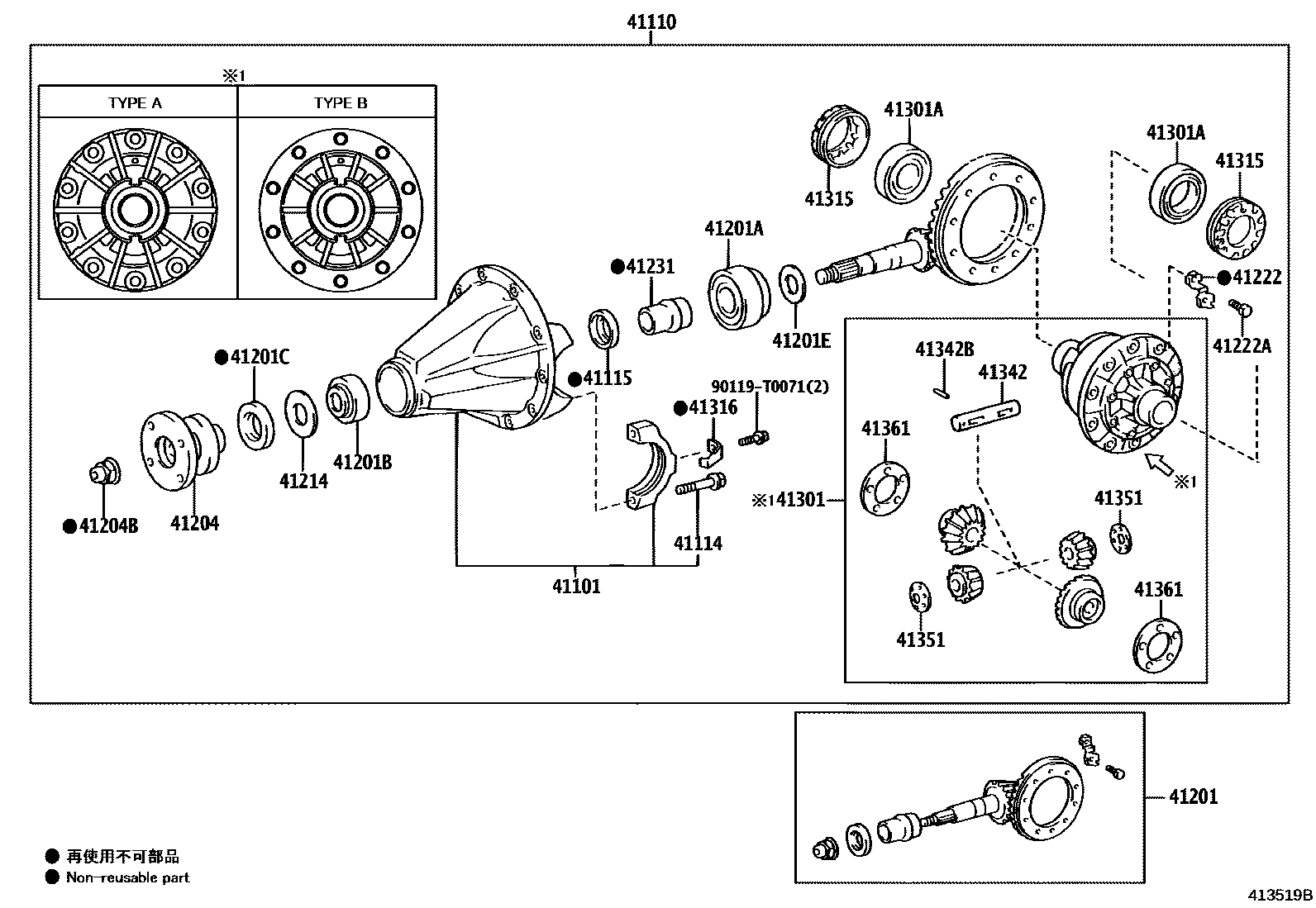

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
(L),T/P B:REF.ILLUST
TYPE A:REFER ILLUST.
(J),T/P B:REF.ILLUST
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:11=3.727
*FGR=43:11=3.909,PNC 41101=TYPE A
*FGR=43:11=3.909
*FGR=43:10=4.300
*FGR=43:10=4.300,PNC 41101=TYPE A
*FGR=43:10=4.300,PNC 41101=TYPE B
*FGR=41:9=4.555
41114BOLT, REAR DIFFERENTIAL BEARING CAP
(J)
(L)
41115RING, DIFFERENTIAL OIL STORAGE
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=43:11=3.909
*FGR=43:10=4.300
*FGR=43:11=3.909
*FGR=41:11
*FGR=41:9=4.556
41201ABEARING (FOR REAR DRIVE PINION REAR)
(J)
(L)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
(J)
(L)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
PNC 41101=TYPE B
PNC 41101=TYPE A
PNC 41101=TYPE B
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
T=2.36,MARK 05,PNC 41101=TYPE B
T=2.39,MARK 06,PNC 41101=TYPE B
T=2.42,MARK 07,PNC 41101=TYPE B
T=2.43,MARK 08,PNC 41101=TYPE B
T=2.48,MARK 09,PNC 41101=TYPE B
T=2.51,MARK 10,PNC 41101=TYPE B
T=2.54,MARK 11,PNC 41101=TYPE B
T=2.57,MARK 12,PNC 41101=TYPE B
T=2.60,MARK 13,PNC 41101=TYPE B
T=2.63,MARK 14,PNC 41101=TYPE B
T=2.66,MARK 15,PNC 41101=TYPE B
T=2.69,MARK 16,PNC 41101=TYPE B
T=2.72,MARK 17,PNC 41101=TYPE B
OD=47,T=2.24,MARK 01,PNC 41101=TYPE B
OD=47,T=2.27,MARK 02,PNC 41101=TYPE B
OD=47,T=2.30,MARK 03,PNC 41101=TYPE B
OD=47,T=2.33,MARK 04,PNC 41101=TYPE B
OD=52,T=1.70
OD=52,T=1.73
OD=52,T=1.76
OD=52,T=1.79
OD=52,T=1.82
OD=52,T=1.85
OD=52,T=1.88
OD=52,T=1.91
OD=52,T=1.94
OD=52,T=1.97
OD=52,T=2.00
OD=52,T=2.03
OD=52,T=2.06
OD=52,T=2.09
OD=52,T=2.12
OD=52,T=2.15
OD=52,T=2.18
OD=52,T=2.21
OD=52,T=2.24
OD=52,T=2.24,PNC 41101=TYPE A
OD=52,T=2.27
OD=52,T=2.27,PNC 41101=TYPE A
OD=52,T=2.30,PNC 41101=TYPE A
OD=52,T=2.30
OD=52,T=2.33
OD=52,T=2.33,PNC 41101=TYPE A
T=2.36
T=2.36,PNC 41101=TYPE A
T=2.39
T=2.39,PNC 41101=TYPE A
T=2.42
T=2.42,PNC 41101=TYPE A
T=2.45
T=2.45,PNC 41101=TYPE A
T=2.48,PNC 41101=TYPE A
T=2.48
T=2.51
T=2.51,PNC 41101=TYPE A
T=2.54
T=2.54,PNC 41101=TYPE A
T=2.57
T=2.57,PNC 41101=TYPE A
T=2.60
T=2.60,PNC 41101=TYPE A
T=2.63
T=2.63,PNC 41101=TYPE A
T=2.66
T=2.66,PNC 41101=TYPE A
T=2.69
T=2.69,PNC 41101=TYPE A
T=2.72
T=2.72,PNC 41101=TYPE A
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
(L)
PNC 41101=TYPE A
PNC 41101=TYPE B
(J)
41204BNUT (FOR REAR DRIVE PINION)
OD=39.5
OD=33.5,(J)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
(L)
(J)
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
(J)
(L)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301CASE SUB-ASSY, REAR DIFFERENTIAL
PNC 41301=TYPE A
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
PNC 41101=TYPE A
PNC 41101=TYPE B
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
TYPE A:REFER ILLUST.
(L)
(L),T/P A:REF.ILLUST
(J)
(J),T/P A:REF.ILLUST
TYPE B:REFER ILLUST.
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
(L),T/P A:REF.ILLUST
(L)
(J)
(J),T/P A:REF.ILLUST
TYPE B:REFER ILLUST.
41342SHAFT, REAR DIFFERENTIAL PINION
(L)
*299
(J)
*300
41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)
(J)
(L)
41351WASHER, REAR DIFFERENTIAL PINION THRUST
(L)
(J)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.55,(L)
T=1.60,(L)
T=1.65,(L)
T=1.70,(L)
T=1.75,(L)
T=1.80,(L)
T=1.85,(L)
T=1.90,(L)
T=1.0,PNC 41101=TYPE A
T=1.0
T=1.1
T=1.1,PNC 41101=TYPE A
T=1.2,PNC 41101=TYPE A
T=1.2
T=1.3
T=1.3,PNC 41101=TYPE A
T=1.0,PNC 41101=TYPE B
T=1.1,PNC 41101=TYPE B
T=1.2,PNC 41101=TYPE B
T=1.3,PNC 41101=TYPE B
T=1.50
T=1.55,(J)
T=1.60,(J)
T=1.65,(J)
T=1.70,(J)
T=1.75,(J)
T=1.80,(J)
T=1.85,(J)
T=1.90,(J)
90119T0071
main90119-T0071
24 parts on this diagram · 4 diagrams in section
