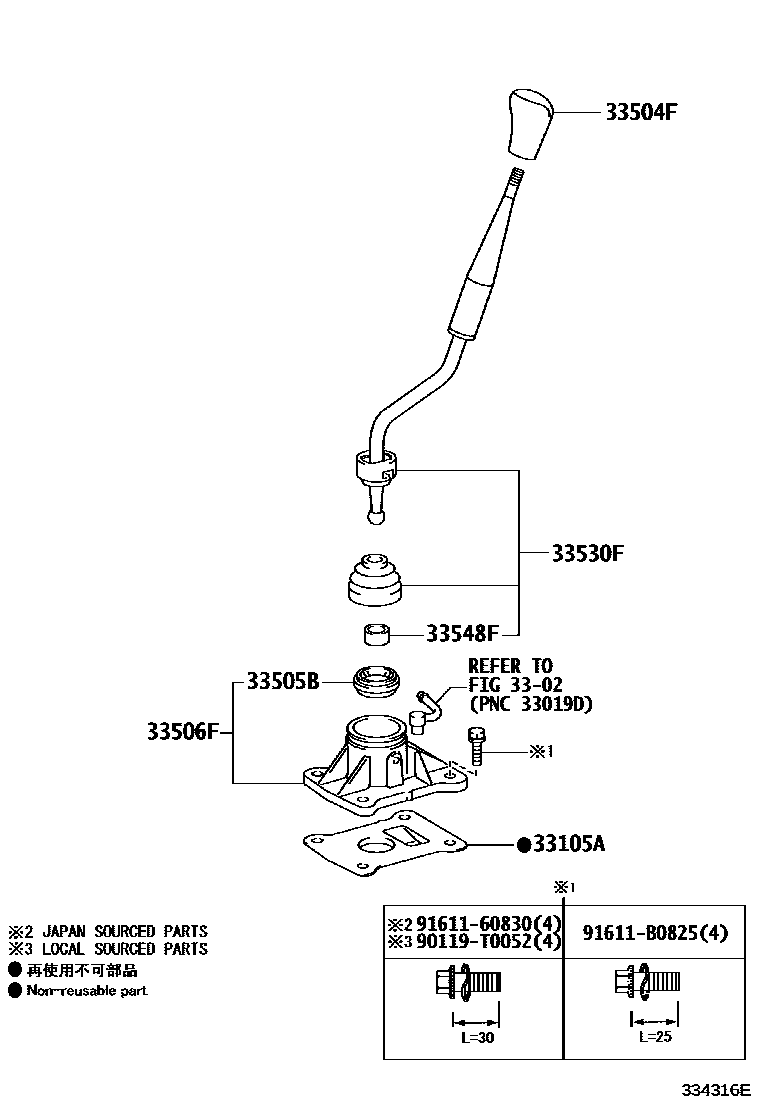

SHIFT LEVER & RETAINER
3302
33105ADEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)
TYPE D:REFER 33-01
TYPE A:REFER 33-01
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.GRAY,TRIM10
sub33504-0D050
BLACK,TRIM10
sub33504-0D050
main33504-0D050-E1iTGN41..SA;KUN40,TGN40..LHD..5F..DLX;KUN40,TGN4#..5F..(DLX,LO,STD)..(GCC,IDN,MA,TH)201107-201611
ASH BROWN,TRIM4#
sub33504-0D050
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM10
BLACK,TRIM10
ASH BROWN,TRIM4#
BLACK,TRIM42,(L)
ASH BROWN,TRIM4#,(L)
ASH BROWN,TRIM41,(L)
ASH BROWN,TRIM4#,(J)
sub33504-22140
33505BSEAT SUB-ASSY, SHIFT LEVER
TYPE A:SEE 33-01,(L)
TYPE D:REFER 33-01
TYPE D:REFER 33-01
TYPE A:REFER 33-01
TYPE C:REFER 33-01
TYPE A:SEE 33-01,(J)
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
TYPE A:REFER 33-01
TYPE D:REFER 33-01
TYPE A:REFER 33-01
TYPE D:REFER 33-01
TYPE C:REFER 33-01
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
sub33530-0K331
sub33530-0K341
sub33530-0K351
sub33530-0K361
sub33530-0K432
sub33530-0K442
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
90119T0052
main90119-T0052
9161160830
main91611-60830
91611B0825
main91611-B0825
10 parts on this diagram · 4 diagrams in section
