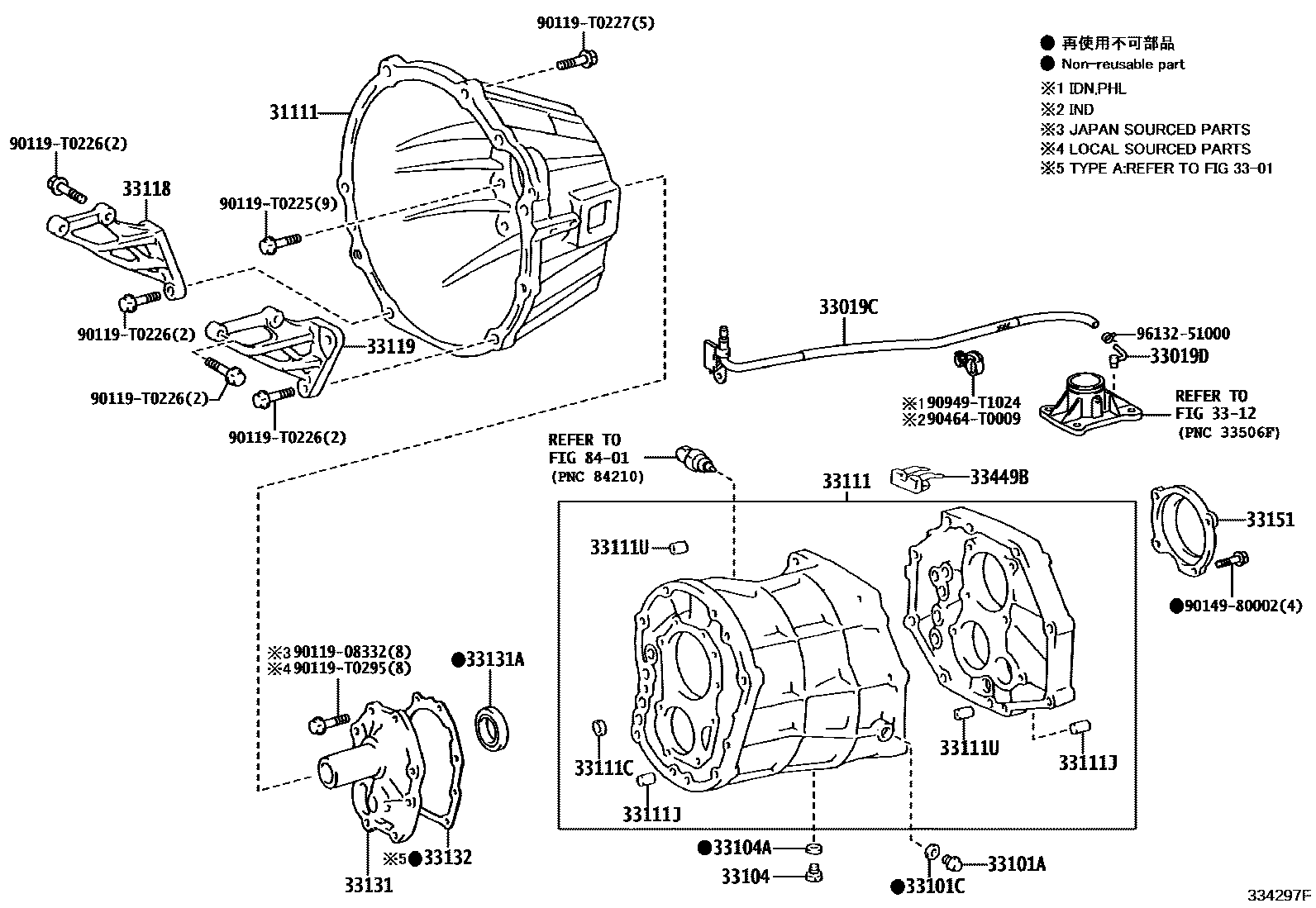

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G58 0002 1G58 0003 1R150

31111HOUSING, CLUTCH

main31111-0K020iTGN41..5F201107-201510

TYPE C:REFER 33-01

main31111-0K030iTGN40..5F201107-201508

TYPE D:REFER 33-01

sub31111-26032

main31111-0K100iTGN41..5F201107-201510

TYPE D:REFER 33-01

main31111-0W070iKUN40..DCR201107-201508

TYPE D:REFER 33-01

sub31111-25050

main31111-25050iKUN40..DCR201508-201603

TYPE A:REFER 33-01

main31111-26032iTGN40..5F201508-201611

TYPE A:REFER 33-01

main31111-26073iTGN41..5F201204-201408

TYPE A:REFER 33-01

33019CBREATHER SUB-ASSY, TRANSMISSION

main33019-71010iTGN41..5F201107-201510

main33019-71040iTGN40..5F..(IDN,IND,PHL,TH,VN)201107-201611

main33019-71070iKUN40..DCR201107-201603

33019D2 WAY(FOR TRANSMISSION BREATHER HOSE)

main36149-60070iTGN41..5F201204-201611

TYPE A:REFER 33-01

main36149-60070iKUN40..DCR;TGN40..5F..(IDN,MA,PHL,TH,VN)201107-201510

TYPE D:REFER 33-01

main36149-60070iTGN41..5F201107-201510

TYPE C:REFER 33-01

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iTGN41..5F201107-201510

TYPE C:REFER 33-01

main90341-18006iTGN41..5F201204-201611

TYPE A:REFER 33-01

main90341-18006iKUN40..DCR;TGN40..5F..(IDN,MA,PHL,TH,VN)201107-201510

TYPE D:REFER 33-01

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iTGN41..5F201204-201611

TYPE A:REFER 33-01

main90430-18008iKUN40..DCR;TGN40..5F..(IDN,MA,PHL,TH,VN)201107-201510

TYPE D:REFER 33-01

main90430-18008iTGN41..5F201107-201510

TYPE C:REFER 33-01

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iTGN41..5F201204-201408

TYPE A:REFER 33-01

main90341-18006iTGN41..5F201107-201510

TYPE D:REFER 33-01,TYPE C:REFER 33-01

main90341-18057iKUN40,TGN40..5F201107-201508

TYPE D:REFER 33-01

main90341-18057iKUN40,TGN40..5F201508-201611

TYPE A:REFER 33-01

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iKUN40..DCR;TGN40..5F..(IDN,MA,PHL,TH,VN)201107-201510

TYPE D:REFER 33-01

main90430-18008iTGN41..5F201204-201611

TYPE A:REFER 33-01

main90430-18008iTGN41..5F201107-201510

TYPE C:REFER 33-01

33111CASE, MANUAL TRANSMISSION

main33101-0K010iTGN41..5F201107-201510

TYPE C:REFER 33-01

main33101-0K020iKUN40,TGN40..5F201107-201508

TYPE D:REFER 33-01

sub33101-71020

main33101-0K030iTGN41..5F201107-201510

TYPE D:REFER 33-01

main33101-60041iTGN41..5F201204-201408

TYPE A:REFER 33-01

main33101-71020iKUN40,TGN40..5F201508-201611

TYPE A:REFER 33-01

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iKUN40,TGN40..5F201204-201611

OD=14,TYPE A:REFER 33-01

main90331-14004iKUN40,TGN40..5F201107-201508

OD=14,TYPE D:REFER 33-01

main96411-41800iTGN41..5F201107-201510

OD=18,TYPE D:REFER 33-01,TYPE C:REFER 33-01

main96411-41800iTGN41..5F201204-201408

OD=18,TYPE A:REFER 33-01

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iKUN40,TGN40..5F201107-201508

L=16,OD=12,TYPE D:REFER 33-01

main90250-12002iTGN41..5F201204-201611

L=16,OD=12,TYPE A:REFER 33-01

main90250-12002iTGN41..5F201107-201510

L=16,OD=12,TYPE D:REFER 33-01,TYPE C:REFER 33-01

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iKUN40,TGN40..5F201107-201508

L=14,OD=15,TYPE D:REFER 33-01

main90253-15001iTGN41..5F201107-201510

L=14,OD=15,TYPE D:REFER 33-01,TYPE C:REFER 33-01

main90253-15001iKUN40,TGN40..5F201204-201611

L=14,OD=15,TYPE A:REFER 33-01

33118PLATE, STIFFENER, RH(MTM)

main33118-04020iKUN40..DCR..(IND,PHL)201201-201603

main33118-0K020iKUN40..DCR..IDN201107-201510

33119PLATE, STIFFENER, LH(MTM)

main33119-0K020iKUN40..DCR..(IND,PHL)201201-201603

main33119-0K030iKUN40..DCR..IDN201107-201510

3312

33131RETAINER, BEARING, FRONT(MTM)

main33018-0K010iTGN41..5F201107-201208

TYPE C:REFER 33-01

sub33018-0K011

main33018-0K011iTGN41..5F201208-201510

TYPE C:REFER 33-01

sub33018-0K012

main33018-0K070iTGN41..5F201107-201510

TYPE D:REFER 33-01

sub33018-0K071

main33131-0K030iKUN40,TGN40..5F201107-201508

TYPE D:REFER 33-01

sub33131-26020

main33131-26020iKUN40,TGN40..5F201508-201611

TYPE A:REFER 33-01

main33131-35031iTGN41..5F201204-201408

TYPE A:REFER 33-01

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iKUN40,TGN40..5F201508-201611

TYPE A:REFER 33-01

main90311-32022iTGN41..5F201204-201408

TYPE A:REFER 33-01

main90311-T0017iTGN41..5F201107-201208

TYPE D:REFER 33-01,TYPE C:REFER 33-01

main90311-T0021iKUN40,TGN40..5F201107-201508

TYPE D:REFER 33-01

main90311-T0057iTGN41..5F201208-201510

TYPE D:REFER 33-01,TYPE C:REFER 33-01

sub90311-T0094

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iKUN40,TGN40..5F201508-201611

TYPE A:REFER 33-01

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-0K010iTGN41..5F201107-201510

TYPE C:REFER 33-01

main33151-0K020iKUN40,TGN40..5F201107-201508

TYPE D:REFER 33-01

sub33151-35030

main33151-0K040iTGN41..5F201107-201510

TYPE D:REFER 33-01

main33151-35020iTGN41..5F201204-201408

TYPE A:REFER 33-01

main33151-35030iKUN40,TGN40..5F201508-201611

TYPE A:REFER 33-01

33449BMAGNET, TRANSMISSION

main33449-26010iKUN40,TGN40..5F201107-201508

TYPE D:REFER 33-01

main33449-26010iKUN40,TGN40..5F201508-201611

TYPE A:REFER 33-01

main33449-35030iTGN41..5F201204-201408

TYPE A:REFER 33-01

main33449-35030iTGN41..5F201107-201510

TYPE D:REFER 33-01,TYPE C:REFER 33-01

8401

9011908332

main90119-08332

90119T0225

main90119-T0225

90119T0226

main90119-T0226

90119T0227

main90119-T0227

90119T0295

main90119-T0295

9014980002

main90149-80002

90464T0009

main90464-T0009

90949T1024

main90949-T1024

9613251000

main96132-51000

29 parts on this diagram · 3 diagrams in section
