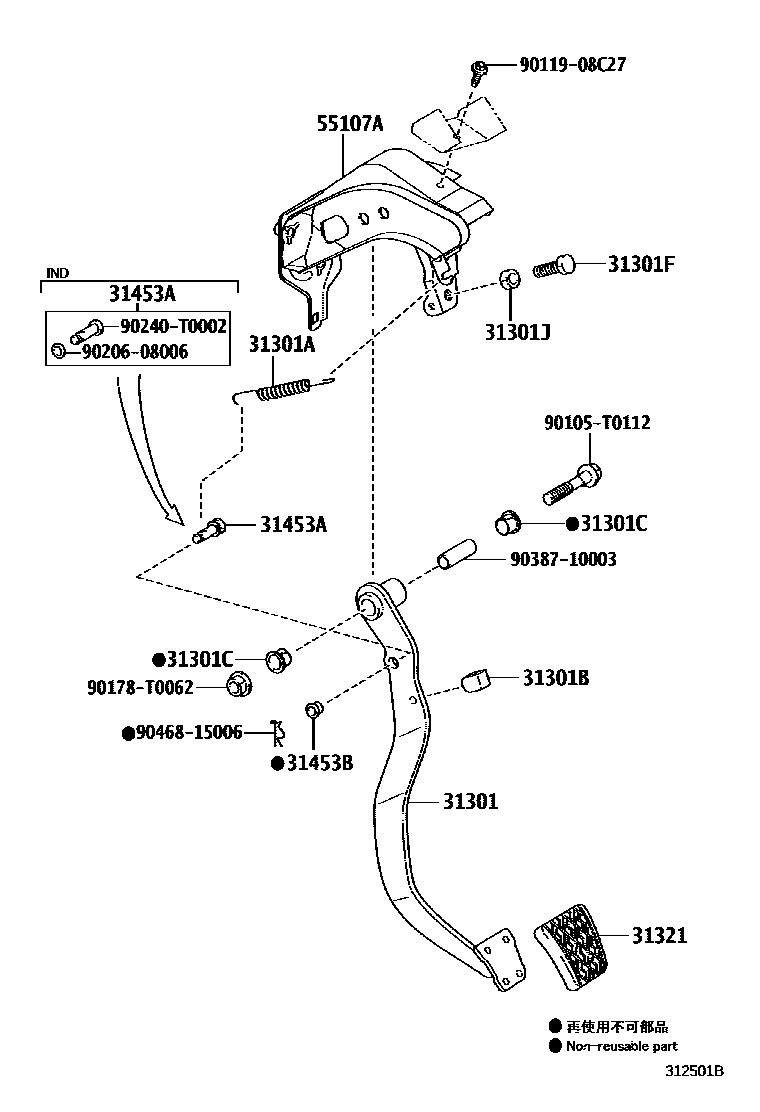

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0K010iTGN40..IND201107-201209

main31301-0K030iTGN4#..LHD..5F201107-201611

main31301-0K150iKUN40..IND201107-201209

main31301-0K170iKUN40..DCR..PHL201202-201603

main31301-0K240iKUN40..IND201210-201603

main31301-0K250iTGN40..IND201210-201501

31301ASPRING(FOR CLUTCH PEDAL)

main90507-T0001iKUN40,TGN4#..5F201107-201611

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKUN40..DCR201107-201603

NO.1

main90541-T0004iTGN4#..RHD..5F201107-201601

main90541-T0005iKUN40..DCR..PHL201202-201603

NO.2

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iTGN4#..5F;KUN40..DCR..(IND,PHL)201107-201611

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iKUN40,TGN4#..5F201107-201611

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-T0011iKUN40,TGN4#..5F201107-201611

31321PAD, CLUTCH PEDAL

main31321-02010iKUN40,TGN40..5F..PHL201202-201603

main31321-52010iKUN40,TGN4#..5F..(GCC,IDN,IND,MA,SA,TH,VN)201107-201611

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-0K011iKUN40,TGN4#..5F201107-201611

L=29.4

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iKUN40,TGN4#..5F201107-201611

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0K021iTGN4#..5F201107-201611

main55107-0K050iKUN40..DCR201107-201603

90105T0112

main90105-T0112

9011908C27

main90119-08C27

90178T0062

main90178-T0062

9020608006

main90206-08006

90240T0002

main90240-T0002

9038710003

main90387-10003

9046815006

main90468-15006

17 parts on this diagram · 7 diagrams in section
