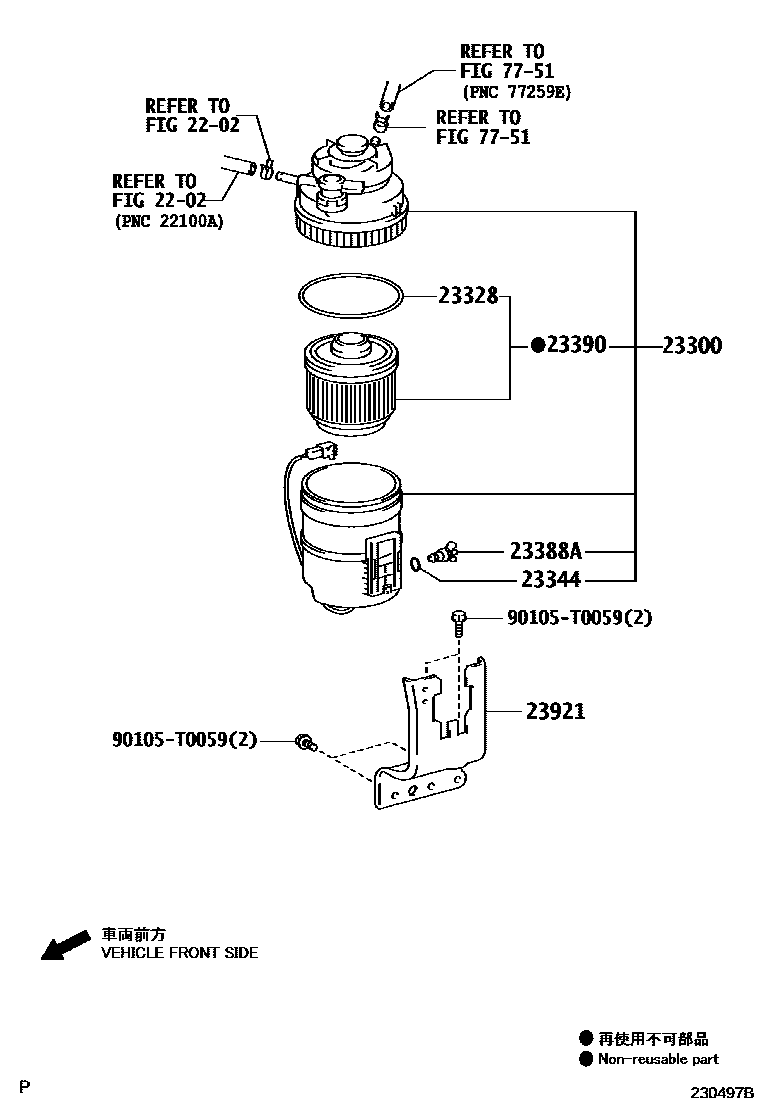

FUEL FILTER

2202

23300FILTER ASSY, FUEL

main23300-0L041i2KDFTV..KUN40201107-201205

sub23300-0L042

main23300-0L042i2KDFTV..KUN40201206-201603

23328GASKET(FOR FUEL FILTER)

main23344-0L010i2KDFTV..KUN40201107-201603

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i2KDFTV..KUN40201107-201603

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i2KDFTV..KUN40201107-201603

23390ELEMENT ASSY, FUEL FILTER

main23390-0L041i2KDFTV..KUN40201107-201603

23921SUPPORT, FUEL FILTER

main23921-0L020i2KDFTV..KUN40..IDN201107-201510

main23921-0L030i2KDFTV..KUN40..IND201201-201603

main23921-0L060i2KDFTV..KUN40..PHL201202-201603

7751

90105T0059

main90105-T0059

9 parts on this diagram · 1 diagram in section
