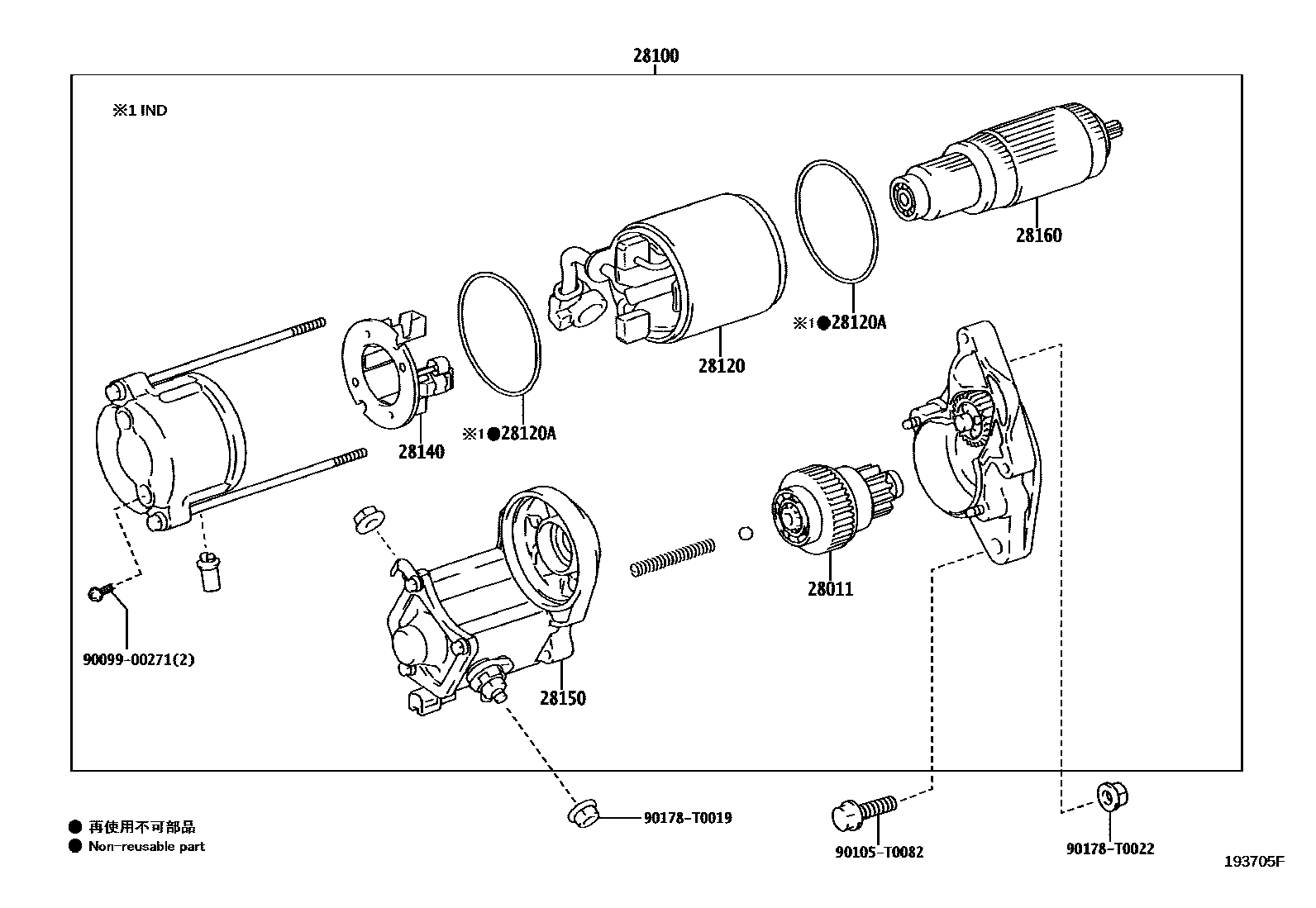

STARTER

0001 112V 2.0KW 0002 112V 2.7KW 0003 112V 1.0KW 0004 112V 1.6KW 0005 112V 1.6KW

28011CLUTCH SUB-ASSY, STARTER

main28011-0D120i1TRFE..TGN40..IND201201-201501

main28011-0T070i1TRFE..TGN40..IDN,MA,PHL,TH,VN201203-201611

main28011-30040i2KDFTV..KUN40..DCR¥17,800201107-201603

main28011-30050i2KDFTV..KUN40..HDCR¥19,200201107-201603

main28011-70020i1TRFE..TGN40..IDN,MA,PHL,TH,VN¥3,990201107-201203

28100STARTER ASSY

main28100-0C031i1TRFE..TGN40..IDN,MA,PHL,TH,VN201107-201611

12V 1.0KW

main28100-0C071i1TRFE..TGN40..IND201201-201501

12V 1.0KW

main28100-0L041i2KDFTV..KUN40..IND201107-201307

12V 2.0KW

sub28100-0L042

main28100-0L042i2KDFTV..KUN40..DCR..(IDN,PHL)201308-201603

12V 2.0KW

main28100-0L051i2KDFTV..KUN40..HDCR201107-201306

12V 2.7KW

sub28100-0L052¥88,300

main28100-0L052i2KDFTV..KUN40..HDCR¥88,300201307-201603

12V 2.7KW

main28100-0L160i2KDFTV..KUN40..IND201206-201603

12V 2.0KW

sub28100-0L170

main28100-75191i2TRFE..TGN41¥105,000201107-201211

12V 1.6KW

main28100-75210i2TRFE..TGN41¥65,700201212-201510

12V 1.6KW

28120YOKE ASSY, STARTER

main28120-0C030i1TRFE..TGN40..IDN,MA,PHL,TH,VN201107-201611

main28120-0L050i2KDFTV..KUN40..HDCR201107-201603

main28120-0L160i2KDFTV..KUN40..IND201206-201603

sub28100-0L170

main28120-28060i2TRFE..TGN41201107-201212

main28120-40130i1TRFE..TGN40..IND201201-201501

main28120-75210i2TRFE..TGN41201212-201510

main28120-YE010i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

28120ARING, O(FOR STARTER YOKE)

main90068-14029i1TRFE..TGN40..IDN,MA,PHL,TH,VN201203-201611

main90099-14064i2KDFTV..KUN40..DCR201107-201603

main90099-14092i1TRFE..TGN40..IND201107-201501

28140HOLDER ASSY, STARTER BRUSH

main28140-0T070i1TRFE..TGN40..IDN,MA,PHL,TH,VN201203-201611

main28140-37050i2TRFE..TGN41¥0201212-201510

main28140-54380i2KDFTV..KUN40..DCR201107-201603

main28140-70020i1TRFE..TGN40..IND201107-201501

main28140-77090i2KDFTV..KUN40..HDCR201107-201603

28150SWITCH ASSY, MAGNET STARTER

main28150-0C030i1TRFE..TGN40..IDN,MA,PHL,TH,VN201203-201611

main28150-0L041i2KDFTV..KUN40..DCR201107-201603

main28150-0L050i2KDFTV..KUN40..HDCR¥25,000201107-201603

main28150-40130i2TRFE..TGN41¥9,400201212-201510

main28150-75150i1TRFE..TGN40..IND¥7,000201107-201501

28160ARMATURE ASSY, STARTER

main28160-0T070i1TRFE..TGN40..IDN,MA,PHL,TH,VN201203-201611

main28160-21060i2TRFE..TGN41¥13,100201107-201212

main28160-37050i2TRFE..TGN41¥17,400201212-201510

sub28160-75210¥13,100

main28160-54140i2KDFTV..KUN40..HDCR¥20,000201107-201603

main28160-70050i1TRFE..TGN40..IDN,MA,PHL,TH,VN¥12,000201107-201501

main28160-YE010i2KDFTV..KUN40..DCR201107-201603

9009900271

main90099-00271

90105T0082

main90105-T0082

90178T0019

main90178-T0019

90178T0022

main90178-T0022¥100

11 parts on this diagram · 5 diagrams in section
