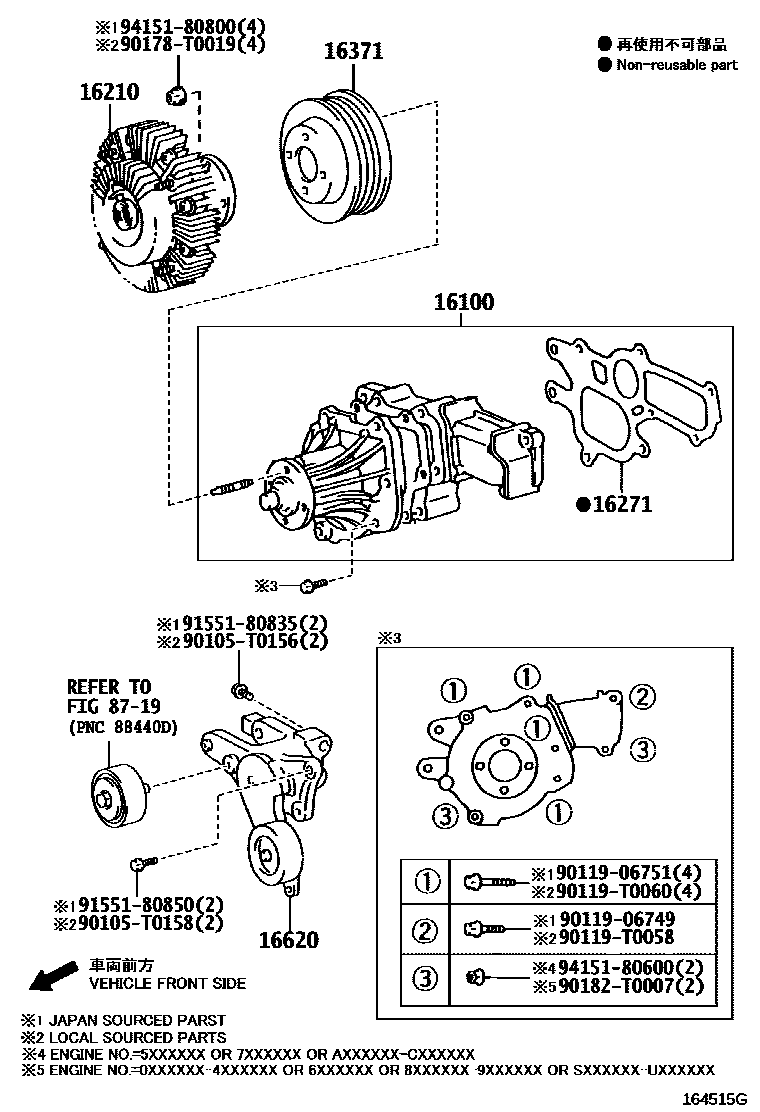

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-09260i2KDFTV..KUN40201107-201410

*130

main16100-09261i2KDFTV..KUN40201410-201603

*130

main16100-09460i2TRFE..TGN41201107-201201

main16100-39485i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

main16100-39486i2KDFTV..KUN40..DCR..(IDN,PHL)201407-201603

*360

16210COUPLING ASSY, FLUID

main16210-0C010i1TRFE,2TRFE..TGN4#201107-201201

main16210-0L011i2KDFTV..KUN40201107-201112

*130

main16210-30030i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

main16210-30031i2KDFTV..KUN40..DCR..(IDN,PHL)201509-201603

*360

main16210-75120i1TRFE,2TRFE..TGN4#201201-201206

*300

16271GASKET, WATER PUMP

main16271-0L010i2KDFTV..KUN40201107-201603

*130

main16271-67020i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

16371PULLEY, FAN

main16371-0C010i1TRFE,2TRFE..TGN4#201107-201611

main16371-0L010i2KDFTV..KUN40201107-201603

*130

main16371-30020i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0L020i2KDFTV..KUN40201107-201112

*130

main16620-30031i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

8719

90105T0156

main90105-T0156

90105T0158

main90105-T0158

9011906749

main90119-06749

9011906751

main90119-06751

90119T0058

main90119-T0058

90119T0060

main90119-T0060

90178T0019

main90178-T0019

90182T0007

main90182-T0007

9155180835

main91551-80835

9155180850

main91551-80850

9415180600

main94151-80600

9415180800

main94151-80800

18 parts on this diagram · 2 diagrams in section
