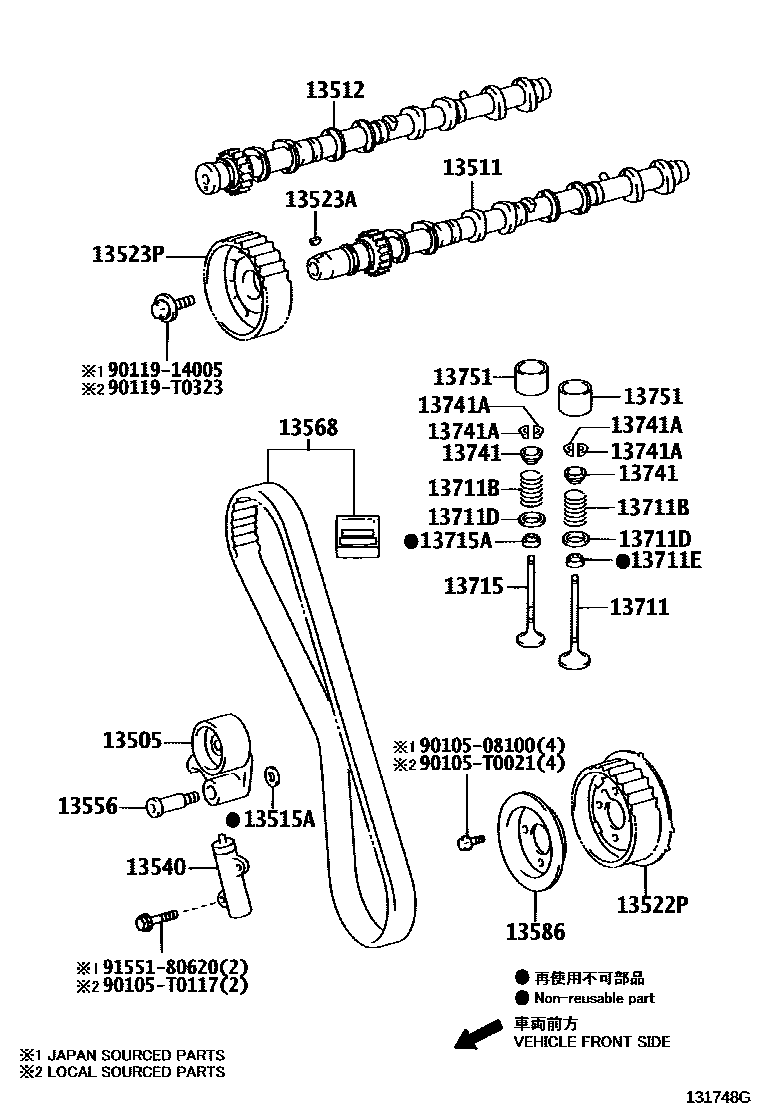

CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0004 1

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-0L010i2KDFTV..KUN40201107-201603

*130

main13505-67041i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

main13505-67042i2KDFTV..KUN40..DCR..(IDN,PHL)201407-201603

*360

13511CAMSHAFT

main13501-0C010i1TRFE,2TRFE..TGN4#201107-201404

main13501-0C011i1TRFE,2TRFE..TGN4#201404-201611

main13501-0L010i2KDFTV..KUN40201107-201508

*130

main13501-30040i2KDFTV..KUN40201508-201603

*130,(J)

sub13501-30030

13512CAMSHAFT, NO.2

main13502-0C010i1TRFE,2TRFE..TGN4#201107-201611

main13502-0L010i2KDFTV..KUN40201508-201603

*130,(L)

main13502-30030i2KDFTV..KUN40201508-201603

*130,(J)

sub13502-30020

13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)

main90201-10124i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

main90560-T0007i2KDFTV..KUN40201107-201603

*130

13522PPULLEY, PUMP DRIVE SHAFT

main13524-0L010i2KDFTV..KUN40201307-201603

*130,(L)

main13524-30010i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

*360

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-0C020i1TRFE,2TRFE..TGN4#201107-201611

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

main90280-T0001i2KDFTV..KUN40201107-201603

*130

13523PPULLEY, CAMSHAFT TIMING

main13523-0L010i2KDFTV..KUN40201107-201603

*130

main13523-17010i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0C010i1TRFE,2TRFE..TGN4#201107-201407

main13540-0C011i1TRFE,2TRFE..TGN4#201407-201504

(L)

main13540-0C020i1TRFE,2TRFE..TGN4#201505-201507

(L)

main13540-0C021i1TRFE,2TRFE..TGN4#201508-201611

(L)

main13540-0L010i2KDFTV..KUN40201107-201603

*130

main13540-67020i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

*360

main13540-75040i1TRFE,2TRFE..TGN4#201505-201507

(J)

main13540-75041i1TRFE,2TRFE..TGN4#201508-201611

(J)

13556SHAFT, TIMING BELT IDLER

main13556-0L010i2KDFTV..KUN40201107-201603

*130

main13556-67010i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

13568BELT, TIMING

main13568-09131i2KDFTV..KUN40201107-201603

*130

main13568-39016i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

*360

13586FLANGE, CAMSHAFT TIMING PULLEY, NO.2

main13586-0L010i2KDFTV..KUN40201107-201603

*130

main13586-17020i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

13711VALVE, INTAKE

main13711-0C010×8i1TRFE..TGN40201107-201408

main13711-0C040×8i2TRFE..TGN41201107-201510

MARK N

main13711-0L010×8i2KDFTV..KUN40201107-201603

*130

main13711-30040×8i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

main13711-75100×8i1TRFE..TGN40201408-201611

(J)

main13711-75110×8i2TRFE..TGN41201408-201510

NO MARK

13711BSPRING, COMPRESSION(FOR INNER)

main90080-50404×16i2KDFTV..KUN40201107-201603

*130

main90501-30032×16i1TRFE,2TRFE..TGN4#201407-201611

(J)

main90501-T0016×16i1TRFE,2TRFE..TGN4#201107-201407

main90501-T0038×16i1TRFE,2TRFE..TGN4#201407-201611

(L)

main90905-01077×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

*360

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16023×16i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

main90560-T0008×16i2KDFTV..KUN40201107-201603

*130

13711ESEAL, INTAKE VALVE STEM OIL

main90080-31099×8i2KDFTV..KUN40201107-201603

*130

main90913-02121×8i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

*360

13715VALVE, EXHAUST

main13715-0C010×8i1TRFE..TGN40201107-201408

main13715-0C040×8i2TRFE..TGN41201107-201510

MARK N

main13715-0L010×8i2KDFTV..KUN40201107-201603

*130

main13715-30040×8i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

*360

main13715-75090×8i1TRFE..TGN40201408-201611

(J)

main13715-75140×8i2TRFE..TGN41201408-201510

MARK 8

13715ASEAL, EXHAUST VALVE STEM OIL

main90080-31099×8i2KDFTV..KUN40201107-201603

*130

main90913-02121×8i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

13741RETAINER, VALVE SPRING

main13741-0C020×16i1TRFE,2TRFE..TGN4#201107-201407

MADE IN THAILAND

main13741-0C030×16i1TRFE,2TRFE..TGN4#201407-201611

MADE IN THAILAND

main13741-0L010×16i2KDFTV..KUN40201107-201603

*130

main13741-15020×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

*360

main13741-36010×16i1TRFE,2TRFE..TGN4#201407-201611

MADE IN JAPAN

13741ALOCK, VALVE SPRING RETAINER

main90913-03021×32i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

main90913-03028×32i1TRFE,2TRFE..TGN4#201107-201611

13751LIFTER, VALVE

main13751-46030×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.06,*130

main13751-46040×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.08,*360

main13751-46050×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.10,*360

main13751-46060×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.12,*130

main13751-46070×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.14,*130

main13751-46080×16i2KDFTV..KUN40..HDCR..IDN201107-201208

T=5.16,*360

main13751-46090×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.18,*130

main13751-46100×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.20,*360

main13751-46110×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.22,*360

main13751-46120×16i2KDFTV..KUN40..HDCR..IDN201107-201208

T=5.24,*360

main13751-46130×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.26,*360

main13751-46140×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.28,*360

main13751-46150×16i2KDFTV..KUN40..HDCR..IDN201107-201208

T=5.30,*360

main13751-46160×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.32,*130

main13751-46170×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.34,*360

main13751-46180×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.36,*360

main13751-46190×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.38,*130

main13751-46200×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.40,*130

main13751-46210×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.42,*130

main13751-46220×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.44,*360

main13751-46230×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.46,*360

main13751-46240×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.48,*130

main13751-46250×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.50,*360

main13751-46260×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.52,*130

main13751-46270×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.54,*130

main13751-46280×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.56,*130

main13751-46290×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.58,*130

main13751-46300×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.60,*360

main13751-46310×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.62,*360

main13751-46320×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.64,*360

main13751-46330×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.66,*360

main13751-46340×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.68,*130

main13751-46350×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.70,*130

main13751-46360×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.72,*130

main13751-46370×16i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

T=5.74,*130

9010508100

main90105-08100

90105T0021

main90105-T0021

90105T0117

main90105-T0117

9011914005

main90119-14005

90119T0323

main90119-T0323

9155180620

main91551-80620

27 parts on this diagram · 4 diagrams in section
