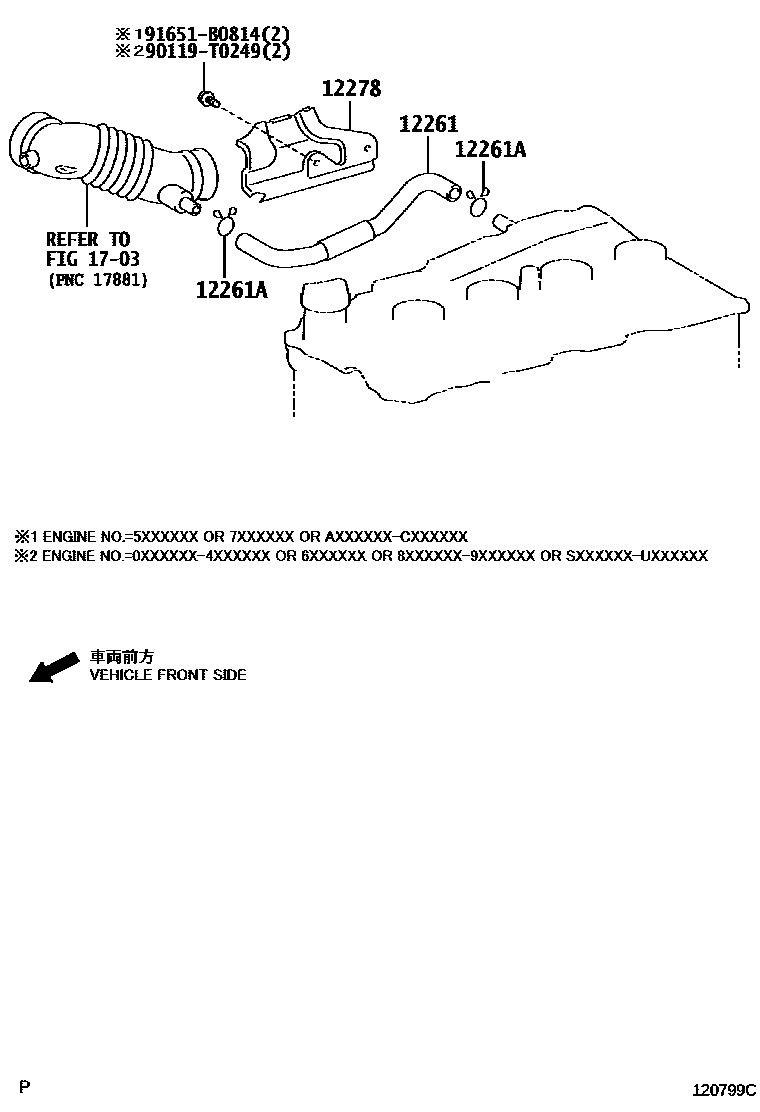

VENTILATION HOSE

0001 1 0002 1

12261HOSE, VENTILATION

main12261-0C010i1TRFE,2TRFE..TGN4#201107-201611

main12261-0L021i2KDFTV..KUN40201107-201603

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-T0026i1TRFE,2TRFE..TGN4#201107-201611

main90466-T0032i2KDFTV..KUN40201107-201603

12278INSULATOR, VENTILATION HOSE HEAT

main12278-0L010i2KDFTV..KUN40201107-201603

*130

main12278-30020i2KDFTV..KUN40..HDCR..IDN201107-201603

*360

1703AIR CLEANER

→ Go to FIG 17-03

90119T0249

main90119-T0249

91651B0814

main91651-B0814

6 parts on this diagram · 2 diagrams in section
