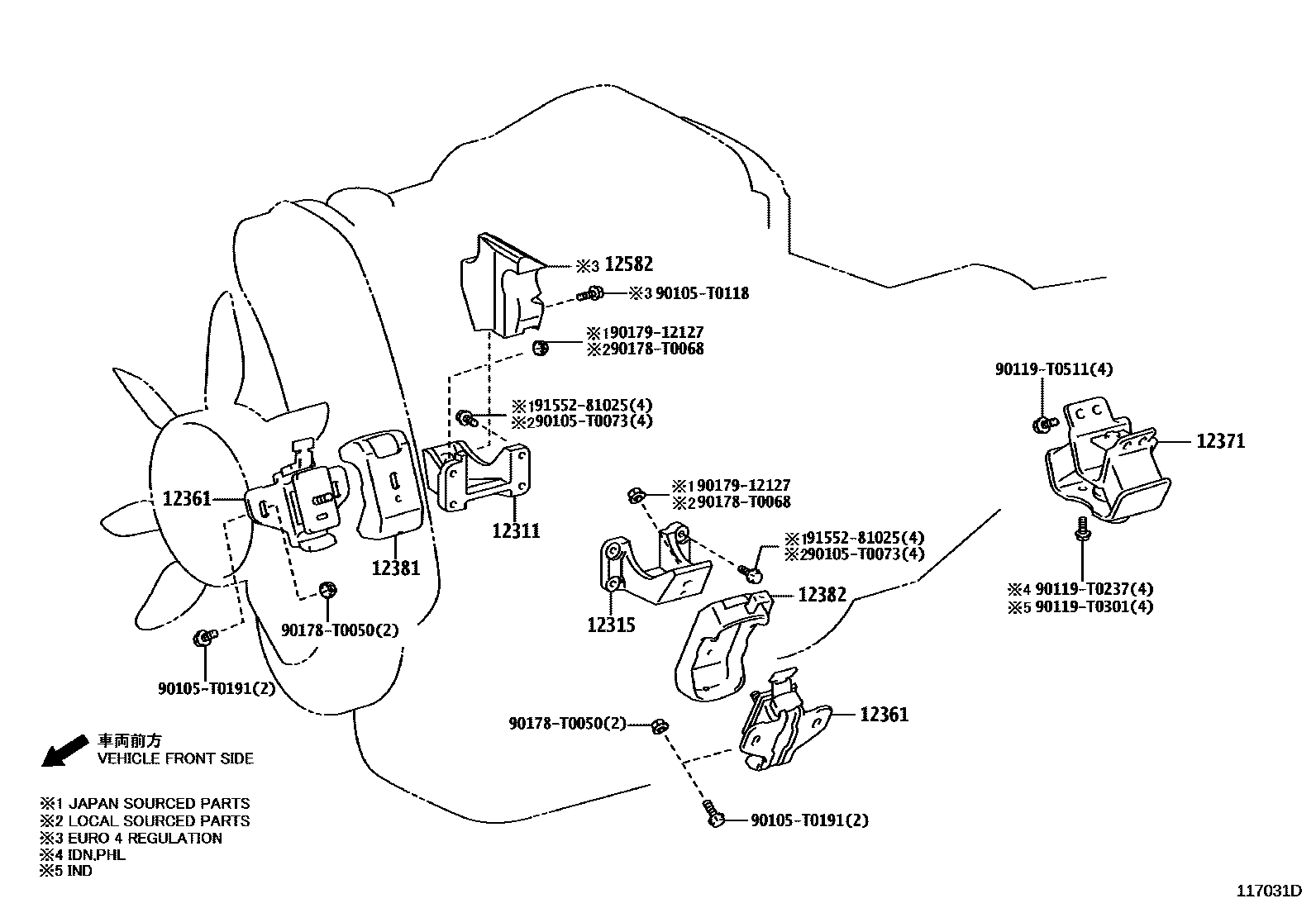

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0C010i1TRFE,2TRFE..TGN4#201107-201611

main12311-0L020i2KDFTV..KUN40201107-201603

*130

main12311-67021i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0C010i1TRFE,2TRFE..TGN4#201107-201611

main12315-0L020i2KDFTV..KUN40201107-201603

*130

main12315-67011i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

12361INSULATOR, ENGINE MOUNTING, FRONT

main12305-0C011i1TRFE,2TRFE..TGN4#201107-201611

main12361-0L030×2i2KDFTV..KUN40..IDN201107-201510

(L)

main12361-30080×2i2KDFTV..KUN40..IDN201107-201510

(J)

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-0C071i1TRFE,2TRFE..TGN4#..5F..(GCC,IDN,MA,PHL,SA,TH,VN)201107-201410

main12371-0C072i2KDFTV..KUN40..DCR..(IDN,PHL)201411-201603

main12371-0C080i1TRFE..TGN40..IND201201-201209

main12371-0C081i2KDFTV..KUN40..IND201210-201603

main12371-0C091i1TRFE,2TRFE..TGN4#..4FC201107-201611

main12371-0L051i2KDFTV..KUN40..HDCR201107-201410

main12371-0L052i2KDFTV..KUN40..HDCR201411-201603

12381STABILIZER, ENGINE MOUNTING

main12381-0L031i2KDFTV..KUN40201107-201603

(L)

main12381-30021i2KDFTV..KUN40201107-201603

(J)

12382STABILIZER, ENGINE MOUNTING, LH

main12382-0L040i2KDFTV..KUN40201107-201603

(L)

main12382-30031i2KDFTV..KUN40201107-201603

(J)

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-0L010i2KDFTV..KUN40..IND201201-201603

*130

90105T0073

main90105-T0073

90105T0118

main90105-T0118

90105T0191

main90105-T0191

90119T0237

main90119-T0237

90119T0301

main90119-T0301

90119T0511

main90119-T0511

90178T0050

main90178-T0050

90178T0068

main90178-T0068

9017912127

main90179-12127

9155281025

main91552-81025

17 parts on this diagram · 2 diagrams in section
