CYLINDER HEAD

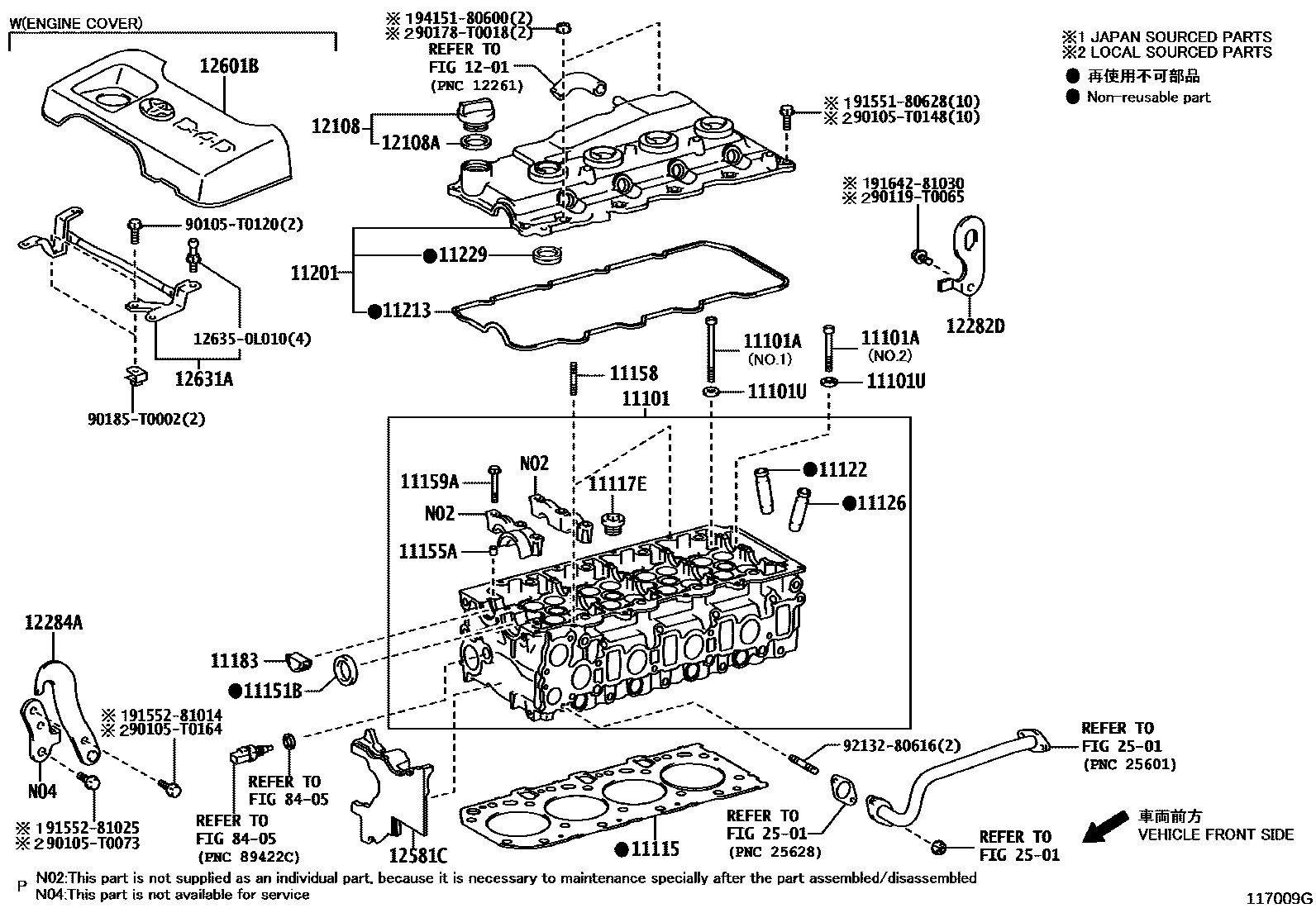

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-0C010i201309-201404
MALAYSIA SPEC
sub11101-0C011
main11101-0C010i201107-201404
sub11101-0C011
main11101-0C011i201405-201601
MALAYSIA SPEC
sub11101-0C012
main11101-0C011i201405-201611
sub11101-0C012
main11101-0C020i201107-201404
sub11101-0C021
main11101-0C021i201405-201601
sub11101-0C022
main11101-0C030i201107-201404
sub11101-0C031
main11101-0C031i201405-201510
sub11101-0C032
main11101-0L051i201107-201603
*360,(L)
sub11101-30071
main11101-0L051i201107-201503
*130
sub11101-30071
main11101-0L051i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360,(L)
sub11101-30071
main11101-0L051i201503-201603
*130,(L)
sub11101-30071
main11101-30071i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360,(J)
main11101-30071i201107-201603
*360,(J)
main11101-30071i201503-201603
*130,(J)
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02091i201107-201303
sub90910-02187
main90910-02145i201107-201603
*360,NO.2
main90910-02145i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360,NO.2
main90910-02146i201107-201603
*360,NO.1
main90910-02146i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360,NO.1
main90910-02187i201303-201611
main90910-T2005i201107-201603
*130,NO.2
main90910-T2006i201107-201603
*130,NO.1
11101USPACER(FOR CYLINDER HEAD SET BOLT)
main90560-13023i201107-201603
*360
main90560-13023i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360
main90560-T0005i201107-201603
*130
11115GASKET, CYLINDER HEAD
main11115-0C011i201107-201109
sub11115-0C030
main11115-0C021i201107-201510
main11115-0C030i201111-201611
(L)
main11115-0C030i201109-201111
main11115-0L010-A0i201107-201201
MARK A,*360,(L):REFER R/M,*130:REFER R/M
sub11115-0L011
main11115-0L010-B0i201107-201201
MARK B,*360,(L):REFER R/M,*130:REFER R/M
sub11115-0L011
main11115-0L010-C0i201107-201201
MARK C,*360,(L):REFER R/M,*130:REFER R/M
sub11115-0L011
main11115-0L010-D0i201107-201201
MARK D,*360,(L):REFER R/M,*130:REFER R/M
sub11115-0L011
main11115-0L010-E0i201107-201201
MARK E,*360,(L):REFER R/M,*130:REFER R/M
sub11115-0L011
main11115-0L011-A0i201201-201603
MARK A,*130:REFER R/M
main11115-0L011-A0i201201-201603
MARK A,*360,(L):REFER R/M
main11115-0L011-A0i201201-201603
INDIA SPEC(EURO 3 REGULATION),MARK A,*360,(L):REFER R/M
main11115-0L011-B0i201201-201603
INDIA SPEC(EURO 3 REGULATION),MARK B,*360,(L):REFER R/M
main11115-0L011-B0i201201-201603
MARK B,*360,(L):REFER R/M
main11115-0L011-B0i201201-201603
MARK B,*130:REFER R/M
main11115-0L011-C0i201201-201603
MARK C,*360,(L):REFER R/M
main11115-0L011-C0i201201-201603
MARK C,*130:REFER R/M
main11115-0L011-C0i201201-201603
INDIA SPEC(EURO 3 REGULATION),MARK C,*360,(L):REFER R/M
main11115-0L011-D0i201201-201603
MARK D,*360,(L):REFER R/M
main11115-0L011-D0i201201-201603
MARK D,*130:REFER R/M
main11115-0L011-D0i201201-201603
INDIA SPEC(EURO 3 REGULATION),MARK D,*360,(L):REFER R/M
main11115-0L011-E0i201201-201603
INDIA SPEC(EURO 3 REGULATION),MARK E,*360,(L):REFER R/M
main11115-0L011-E0i201201-201603
MARK E,*360,(L):REFER R/M
main11115-0L011-E0i201201-201603
MARK E,*130:REFER R/M
main11115-30041-A0i201201-201603
INDIA SPEC(EURO 3 REGULATION),MARKA,*360,(J):REFER R/M
main11115-30041-A0i201107-201603
MARKA,*360,(J):REFER R/M
main11115-30041-B0i201107-201603
MARKB,*360,(J):REFER R/M
main11115-30041-B0i201201-201603
INDIA SPEC(EURO 3 REGULATION),MARKB,*360,(J):REFER R/M
main11115-30041-C0i201107-201603
MARKC,*360,(J):REFER R/M
main11115-30041-C0i201201-201603
INDIA SPEC(EURO 3 REGULATION),MARKC,*360,(J):REFER R/M
main11115-30041-D0i201107-201603
MARKD,*360,(J):REFER R/M
main11115-30041-D0i201201-201603
INDIA SPEC(EURO 3 REGULATION),MARKD,*360,(J):REFER R/M
main11115-30041-E0i201107-201603
MARKE,*360,(J):REFER R/M
main11115-30041-E0i201201-201603
INDIA SPEC(EURO 3 REGULATION),MARKE,*360,(J):REFER R/M
main11115-75070i201111-201611
(J)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
main90341-14015i201503-201603
*130,(J)
main90341-14015i201107-201603
*360,(J)
main90341-14015i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360,(J)
main90341-20002i201107-201611
main90341-T0005i201107-201503
*130
main90341-T0005i201107-201603
*360,(L)
main90341-T0005i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360,(L)
main90341-T0005i201503-201603
*130,(L)
11122BUSH, INTAKE VALVE GUIDE
main11122-30020i201107-201603
O/S 0.05,*360
main11122-30020i201107-201603
O/S 0.05,*130
main11122-30020i201201-201603
O/S 0.05,INDIA SPEC(EURO 3 REGULATION),*360
main11122-75020i201107-201611
STD
main11123-30020i201107-201603
STD,*360
main11123-30020i201107-201603
STD,*130
main11123-30020i201201-201603
STD,INDIA SPEC(EURO 3 REGULATION),*360
main11123-75020i201107-201611
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
main11122-30020i201107-201603
O/S 0.05,*130
main11122-30020i201107-201603
O/S 0.05,*360
main11122-30020i201201-201603
O/S 0.05,INDIA SPEC(EURO 3 REGULATION),*360
main11122-75020i201107-201611
STD
main11123-30020i201107-201603
STD,*360
main11123-30020i201107-201603
STD,*130
main11123-30020i201201-201603
STD,INDIA SPEC(EURO 3 REGULATION),*360
main11123-75020i201107-201611
O/S 0.05
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
main90080-31097i201107-201603
*130
main90311-32019i201107-201603
*360
main90311-32019i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360
11155APIN, RING W/HEAD
main90253-10004i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360,(J)
main90253-10004i201107-201603
*360,(J)
main90253-10004i201503-201603
*130,(J)
main90253-T0001i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360,(L)
main90253-T0001i201503-201603
*130,(L)
main90253-T0001i201107-201603
*360,(L)
main90253-T0001i201107-201503
*130
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
main90116-06149i201107-201603
S=9 & 16,L=37,*130
main90116-06149i201107-201603
S=9 & 16,L=37,*360
main90116-06149i201201-201603
S=9 & 16,L=37,INDIA SPEC(EURO 3 REGULATION),*360
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90119-07011i201107-201603
*360
main90119-07011i201107-201603
*130
main90119-07011i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360
main90119-07013i201107-201602
main90119-07013i201602-201611
(J)
main90119-T0268i201602-201611
(L)
11183PLUG, SEMICIRCULAR
main11183-0L010i201107-201603
*130
main11183-0L010i201201-201503
*130,(L)
main11183-67020i201201-201206
*130,(J)
main11183-67020i201107-201603
*360
main11183-67020i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-0C011i201107-201205
sub11201-0C012
main11201-0C040i201205-201408
sub11201-0C041
main11201-0C041i201408-201611
main11210-0L020i201107-201112
*130
main11210-0L020i201112-201603
*130,(L)
main11210-30110i201112-201206
*130,(J)
main11210-30110i201107-201603
*360
main11210-30110i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360
11213GASKET, CYLINDER HEAD COVER
main11213-0C010i201107-201407
sub11213-0C011
main11213-0C011i201407-201611
main11213-0L010i201107-201603
*130,(L)
main11213-0L010i201107-201603
*360,(L)
main11213-0L010i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360,(L)
main11213-30040i201112-201206
*130,(J)
main11213-30040i201107-201603
*360,(J)
main11213-30040i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360,(J)
11229GASKET, CYLINDER HEAD COVER, NO.3
main23682-0L010i201107-201603
*130,(L)
main23682-30020i201107-201603
*360
main23682-30020i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360
main23682-30020i201112-201206
*130,(J)
1201
12108CAP SUB-ASSY, OIL FILLER
main12180-0H020i201107-201402
main12180-0H020i201107-201603
*130
main12180-0H020i201402-201611
(L)
main12180-21010i201107-201304
*360
main12180-21010i201201-201304
INDIA SPEC(EURO 3 REGULATION),*360
main12180-38010i201402-201611
(J)
main12180-38010i201304-201603
*360
main12180-38010i201304-201603
INDIA SPEC(EURO 3 REGULATION),*360
12108AGASKET(FOR OIL FILLER CAP)
main90080-43027i201107-201611
(L)
main90080-43027i201107-201603
*130
main90430-35001i201304-201603
INDIA SPEC(EURO 3 REGULATION),*360
main90430-35001i201304-201603
*360
main90430-35001i201402-201611
(J)
main90430-37140i201107-201304
*360
main90430-37140i201201-201304
INDIA SPEC(EURO 3 REGULATION),*360
12282DHANGER, ENGINE, NO.2
main12281-0C010i201107-201611
main12282-67030i201107-201603
*360
main12282-67030i201107-201603
*130
main12282-67030i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360
12284AHANGER, ENGINE, NO.1 UPPER
main12284-30020i201107-201603
*360
main12284-30020i201107-201603
*130
main12284-30020i201201-201603
INDIA SPEC(EURO 3 REGULATION),*360,*130
main12284-30060i201201-201603
*130
12581CINSULATOR, CYLINDER BLOCK
main12581-0L010i201201-201603
*130
12601BCOVER SUB-ASSY, ENGINE, NO.1
main12601-0L030i201107-201603
12631ABRACKET, ENGINE COVER
main12631-0L010i201107-201603
2501
8405
126350L010JOINT, ENGINE COVER
main12635-0L010
90105T0073
main90105-T0073
90105T0120
main90105-T0120
90105T0148
main90105-T0148
90105T0164
main90105-T0164
90119T0065
main90119-T0065
90178T0018
main90178-T0018
90185T0002
main90185-T0002
9155180628
main91551-80628
9155281014
main91552-81014
9155281025
main91552-81025
9164281030
main91642-81030
9213280616
main92132-80616
9415180600
main94151-80600

39 parts on this diagram · 2 diagrams in section
